Description
Overview:

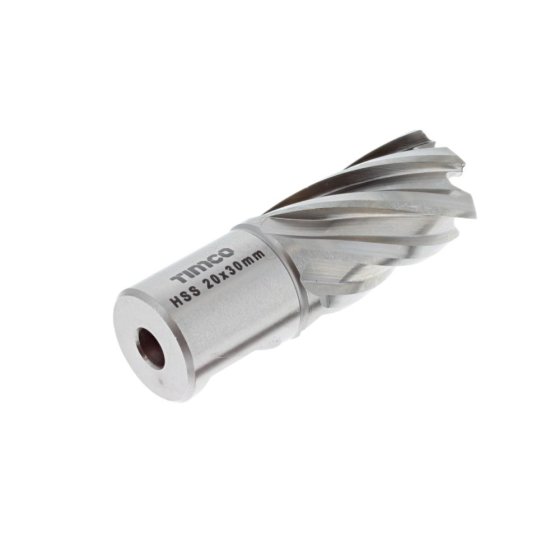

The Timco HSS Broaching Cutter is a precision annular cutter for rapid, accurate hole making in metal. It measures 20 mm in diameter (0.79 inches) with a 30 mm length (1.18 inches). Manufactured from high‐grade high speed steel (HSS) and coated with Titanium Aluminium Nitride (TiAlN), it offers strong heat and wear resistance for demanding work. Designed for use in magnetic drilling machines, pillar drills with suitable arbors, and milling machines, it cuts efficiently by removing a narrow ring of material and ejecting a slug, reducing feed load and heat build‐up. Ideal for structural steel, mild steel, and cast iron, and suitable for stainless steel when used with the correct speeds and coolant. Manufacturer Part Number (MPN): BCS20.
Key Features:
- 20 mm diameter (0.79 inches) for common bolt and clearance holes; 30 mm length (1.18 inches) for compact setups
- High‐grade HSS body for strength and reliable cutting performance
- TiAlN coating for enhanced heat resistance and long service life
- Precision‐ground teeth for fast, low‐vibration cutting and accurate, round holes
- Annular geometry ejects a slug, reducing effort compared with twist drilling
- Suitable for structural steel, plate, box section and cast materials; stainless with appropriate technique
- Compatible with most magnetic drilling machines using standard annular cutter arbors
- Clean finish with reduced burr formation when set up correctly
- Performs best with cutting fluid/coolant and rigid workholding
- Timco branded quality; easy identification and re‐ordering via MPN BCS20
Typical Applications:
For drilling precise holes in steel beams, baseplates, RSJ/UB/UC sections, machinery frames, racking, guard rails, and fabrication projects. Useful for site installation with mag drills, workshop maintenance, and MRO tasks. Suitable for creating bolt, fixing, and conduit holes, as well as enlarging or relocating holes using appropriate pilots and arbors.
Also known as:
Annular cutter, broach cutter, core drill, slugger cutter, trepanning cutter, mag drill cutter, HSS annular hole cutter, TiAlN‐coated annular cutter.
Product Specifications
| L&S Part No. | 902 0688 |
|---|---|
| Manufacturer | Timco |
| OEM No. | BCS20 |
| Unit of Sale | 1 |
| Key Features | - 20 mm diameter, 30 mm length for compact setups - High-grade HSS body for reliable cutting - TiAlN coating enhances heat resistance - Compatible with magnetic drilling machines - Suitable for structural and mild steel, cast iron |
