Description
Overview:

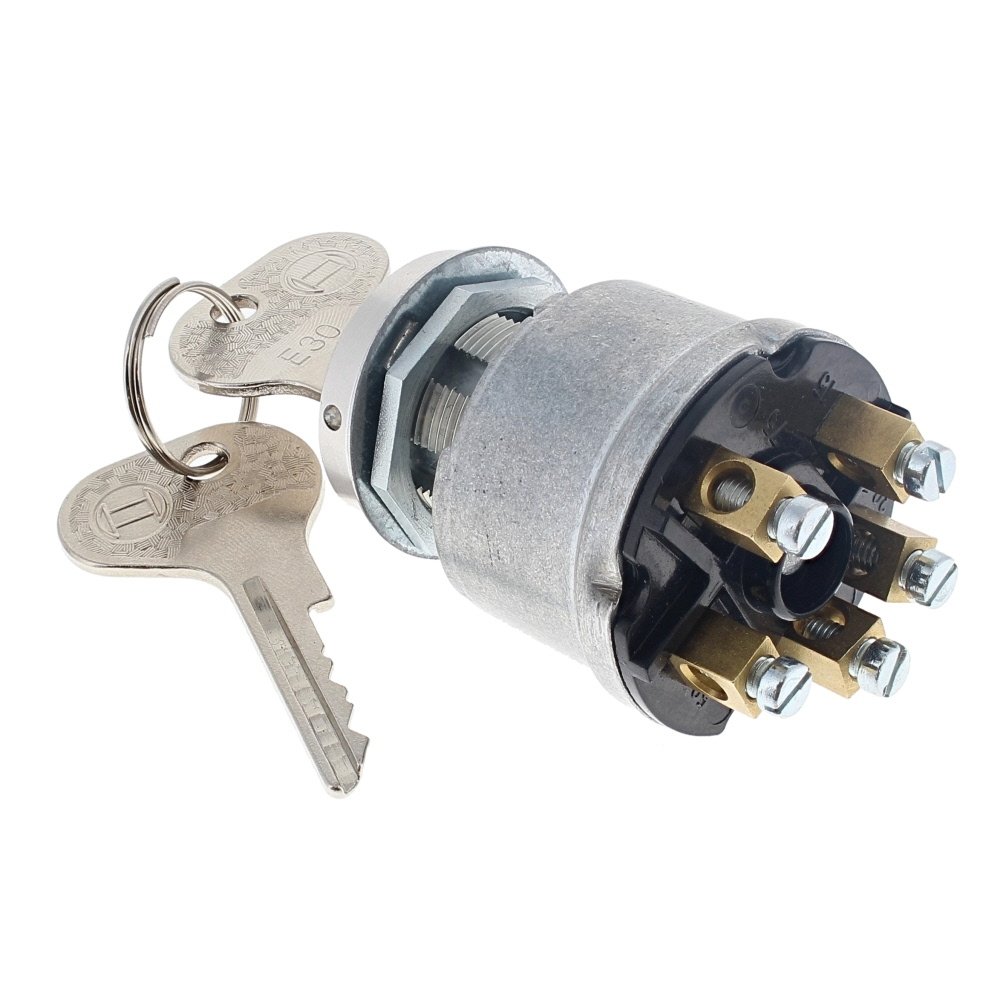

The Bosch 3 Position Ignition Switch with 2x E30 keys (part no. 0 342 309 006) is a panel-mounted key-operated control for plant, construction and industrial machinery. It manages the Off, Ignition and Start functions to power accessories and engage the starter circuit. Built with a metal lock barrel and a tough moulded connector block, it is designed for frequent use in demanding environments. The compact body is 36 mm wide and mounts through a 20 mm panel hole, with a 5-terminal block for tidy, secure wiring. Supplied with two E30 pattern keys for convenience and spares, this switch is a straightforward replacement for worn or unreliable units on a wide range of equipment where a 3-position keyed control is required.
Key Features:
- 3-position operation: Off - Ignition - Start, with clear, positive detents
- 5-terminal block-type connector for secure, organised wiring
- Panel mounting through a 20 mm hole; compact 36 mm body width for easy placement
- Durable metal barrel and robust plastic housing suited to site conditions
- Supplied with 2x E30 keys for backup or shared use
- Smooth switching action to help ensure reliable cranking and ignition control
- Straightforward to fit as a service replacement where dimensions and terminals match
- Widely used across plant and industrial equipment where a keyed start is required
Typical Applications:
Used on plant and site equipment to control ignition and starter circuits, including construction machinery, agricultural machines, industrial engines, generators, compressors and similar equipment. Ideal as a replacement when the original key switch is worn, intermittent, or damaged, restoring dependable starting and accessory power control.
Also known as:
Ignition barrel, key-operated starter lock, 3-position key barrel, starter lock switch, engine start lock, keyed selector switch.
Alternate Part Numbers:
A 000 545 25 13, 000 545 25 13, N1 01102 6222, 11 99007 0894, 50 00 361 485, 303 169 4 R92, 50 00 623 847, A0005452513, M 1541678 A, 11990070894, N1011026222, 3093 546 M1, 5000623847, 057 550 25, 0005452513, 3031694R92, 898 395 66, 5000361485, 620 09 04, M1541678A, 3093546M1, D 1 H7662, 128 7333, 4201 137, 01287333
Product Specifications
| L&S Part No. | 200 446 |
|---|---|
| Manufacturer | Bosch |
| OEM No. | WSR6F |
| Unit of Sale | 1 |
| Applications | Various Plant Machines |
