Description
Overview:

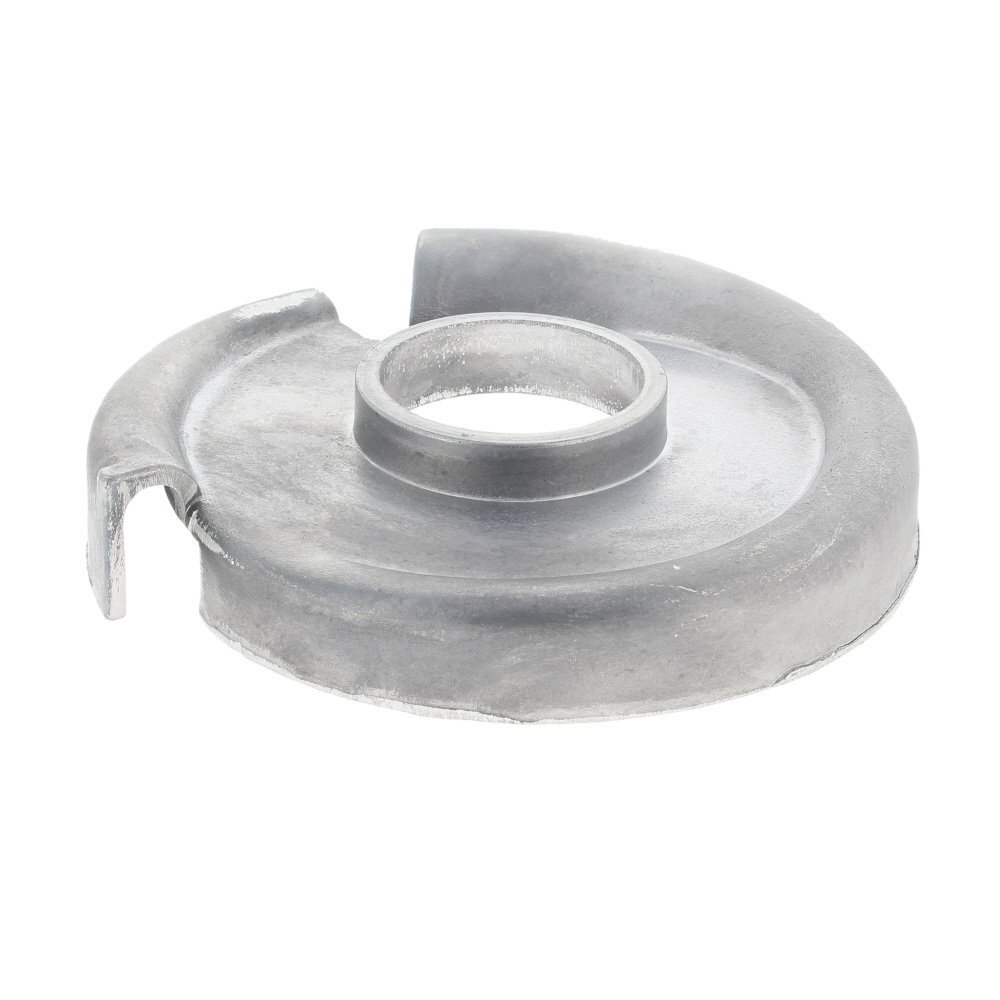

The Case Volute for Honda WX10K1 Water Pump is a genuine Honda replacement housing that forms the main spiral chamber around the impeller. Built from a durable metal casting with a corrosion‐resistant finish, it directs water from the impeller to the discharge port, preserving flow rate and pump efficiency. Designed specifically for the compact, petrol-driven Honda WX10K1 water pump, it restores performance when the original casing is worn, pitted, or cracked. The volute's internal geometry is critical to smooth water transfer and reduced turbulence, helping the pump prime reliably and run efficiently. As an OEM component (OEM No. 78107-YE9-506), it matches the original dimensions and mounting points, allowing straightforward refitting with existing Honda hardware and seals on the WX10K1.
Key Features:
- Genuine Honda OEM part for assured compatibility and fit on WX10K1
- Restores proper hydraulic performance, head, and flow stability
- Durable cast metal construction for long service life in outdoor use
- Precision internal volute profile to minimise turbulence and cavitation
- Exact mounting points for a clean refit with standard fasteners
- Compatible with the original Honda impeller and mechanical seal stack-up
- Helps maintain reliable priming and reduces vibration and noise
- Corrosion-resistant finish suited to typical clean and lightly silty water
- Easy to install with basic hand tools, minimising downtime
- OEM reference: 78107-YE9-506 for accurate identification
Typical Applications:
Used on Honda WX10K1 pumps for light site dewatering, emptying water butts and garden ponds, transferring water from tanks and IBCs, irrigation feed, flushing, and general clean water movement on domestic, agricultural, landscaping, and construction tasks.
Also known as:
Spiral casing, pump shell, casing body, volute housing, pump body, outer casing, hydraulic casing.
Fits Models:
WX10K1
Alternate Part Numbers:
78107-YE9-506, 78107YE9506
Product Specifications
| L&S Part No. | 78107 YE9 506 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 78107YE9506 |
| Unit of Sale | 1 |
| Applications | WX10K1 |
| Machine Type | Pumps |
| Fits Brands | Honda |
