Description
Overview:

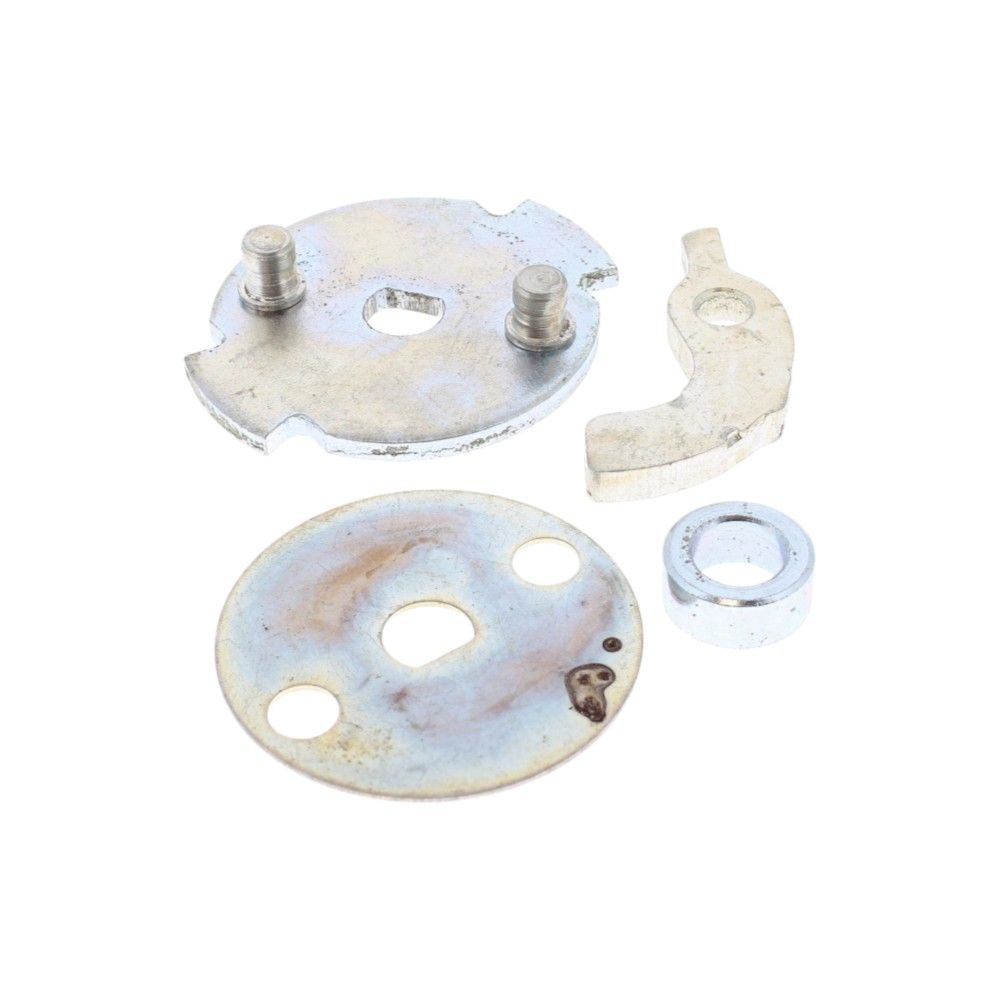

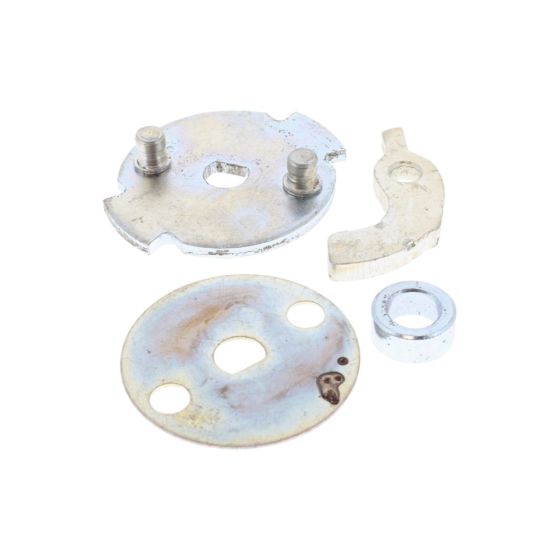

The Driven Flange Set is a genuine Wipac component for reverse-rotation magnetos, engineered to suit classic JAP industrial engines. Built from robust, precision-machined steel, it transfers drive from the engine to the magneto while maintaining correct timing and alignment under vibration. It is specifically matched to Wipac CJ1254 and 9092 reverse-rotation magnetos and corresponds to OEM No. S1775 for a precise fit. Typical use is on JAP 4 and JAP 5 engines found in a wide range of stationary and industrial equipment. This item is unused vintage old stock; minor storage-related tarnish or marks may be present, but performance and fit remain correct when installed and maintained properly. A practical choice for restorations or routine servicing where authentic parts and reliable operation are required.
Key Features:
- Genuine Wipac part for assured compatibility and quality control (OEM S1775). - Designed for reverse-rotation magnetos, preserving correct ignition timing. - Precision-machined steel construction for strength and longevity. - Direct replacement for worn or damaged driven flanges on JAP industrial engines. - Suits Wipac CJ1254 and 9092 magnetos for a straightforward fit. - Stable torque transfer to the magneto under load and vibration. - Suitable for demanding industrial environments and long run times. - Unused old stock; may show cosmetic tarnish that does not affect function. - Installs using standard workshop tools and existing fixings where serviceable. - Supports reliable starting and smooth running when paired with a sound magneto.
Typical Applications:
Used during maintenance or restoration of JAP-powered equipment such as generators, pumps, compressors, saw benches, conveyors, and site machinery. Ideal where a reverse-rotation magneto drive needs renewal to restore consistent spark timing and dependable engine performance in daily or seasonal industrial use.
Also known as:
Magneto driven flange, reverse-rotation magneto flange, magneto drive flange, driven hub, ignition magneto drive flange, Wipac S1775 flange.
Fits Models:
JAP 4, JAP 5
Product Specifications
| L&S Part No. | S1775 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Wico |
| OEM No. | S1775 |
| Unit of Sale | 1 |
| Machine Type | Engines |
| Key Features | - Genuine Wipac part, OEM No. S1775 - Precision-machined steel for durability - Fits Wipac CJ1254 and 9092 magnetos - Compatible with JAP 4 and JAP 5 engines - Maintains correct timing under vibration |
| Fits Models | JAP 4, 3 |
