Description
Overview:

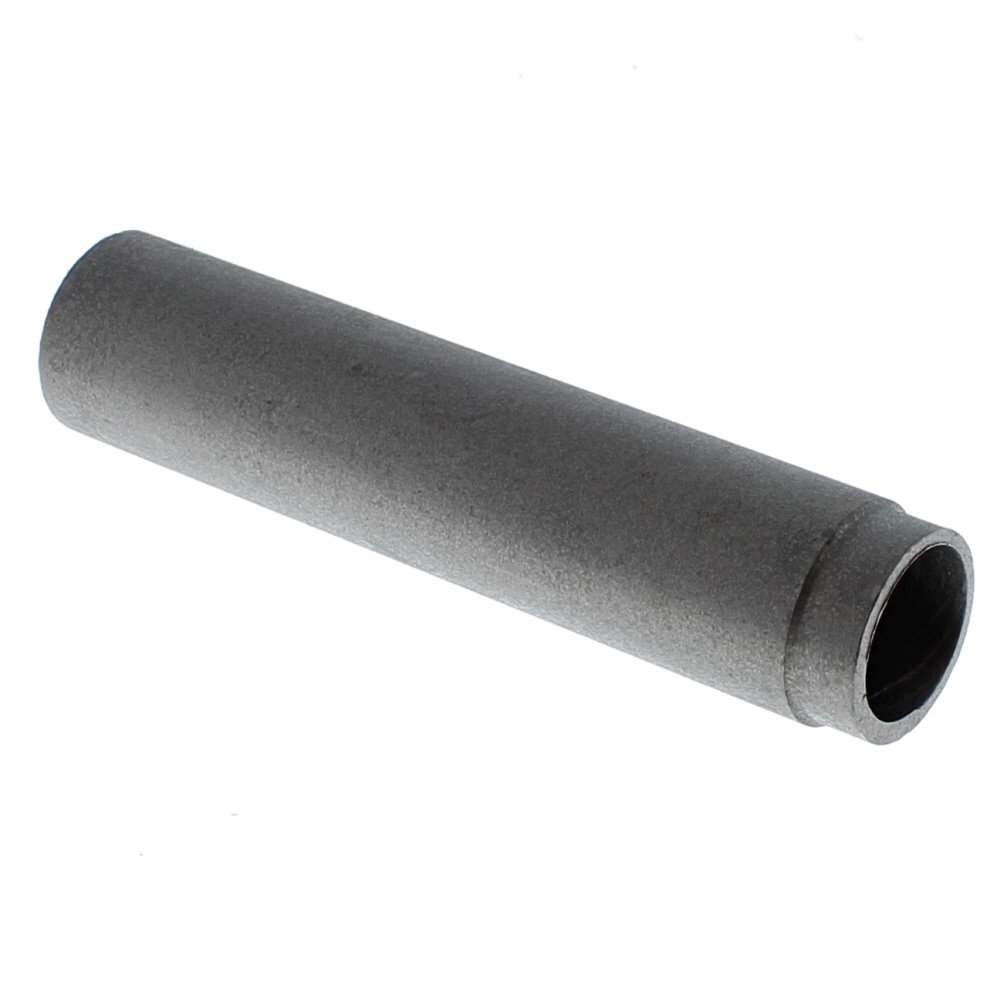

The Guide Tube for Belle hydraulic breakers is a Genuine Altrad/Belle part designed to keep the breaker's internal moving parts correctly aligned for smooth, reliable operation. Made from robust machined steel, it supports the striking mechanism by guiding the piston and tool shank within the body, reducing side-loads and wear on seals and bearings. This direct-replacement component restores performance and helps extend service life, especially in demanding site conditions. It is suitable for popular Belle breakers such as the BHB 25X and 20-21 UD, and is supplied under Belle part number 02306. Fitting a correct, genuine guide tube helps maintain impact efficiency, reduce vibration caused by misalignment, and protect adjacent components from premature damage.
Key Features:
- Genuine Altrad/Belle component for assured compatibility and performance (Part No. 02306)
- Durable steel construction for long service life in heavy-duty use
- Keeps piston and tool in line to minimise wear, vibration, and leakage
- Accurate factory tolerances for smooth impact energy transfer
- Direct-fit replacement to suit specified Belle breaker models
- Helps protect internal seals, bushings, and the cylinder from misalignment damage
- Suitable for frequent use in demolition, civil engineering, utilities, and hire fleets
Typical Applications:
Used in hydraulic breakers on construction, roadworks, utilities, and landscaping tasks. Ideal when overhauling a breaker that shows excessive vibration, loss of power, or uneven tool wear due to internal misalignment. Suitable for routine maintenance to maintain breaking efficiency and reduce downtime on site or in workshop rebuilds.
Also known as:
Sometimes described as a guide sleeve, piston guide, striker guide, tool carrier sleeve, breaker sleeve, or inner guide. These terms are often used for the same internal alignment part within Belle hydraulic breakers.
Fits Models:
BHB 25X
BHB25X
20-21 UD
20-21UD
20-21X
20-25X
20-26 UD
20-26UD
2021UD
2021X
2025X
2026UD
Alternate Part Numbers:
02306
Product Specifications
| L&S Part No. | 02306 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Altrad/Belle |
| OEM No. | 02306 |
| Unit of Sale | 1 |
| Applications | 20-21 UD, 20-21UD, 20-21X, 20-25X, 20-26 UD, 20-26UD, 2021UD, 2021X, 2025X, 2026UD, BHB 25X, BHB25X |
| Machine Type | Breakers |
| Fits Brands | Belle |
| Fits Models | BHB 25X | 20-21 UD | 20-21X | 20-25X | 20-26 UD |
