Description

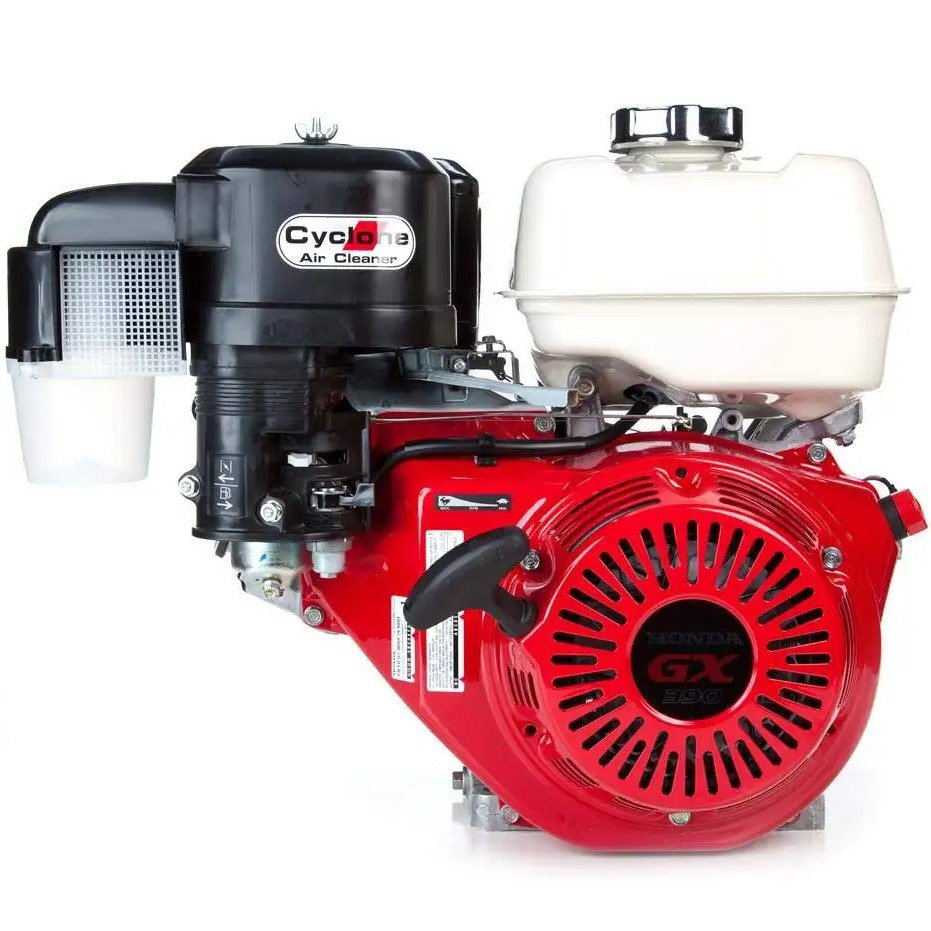

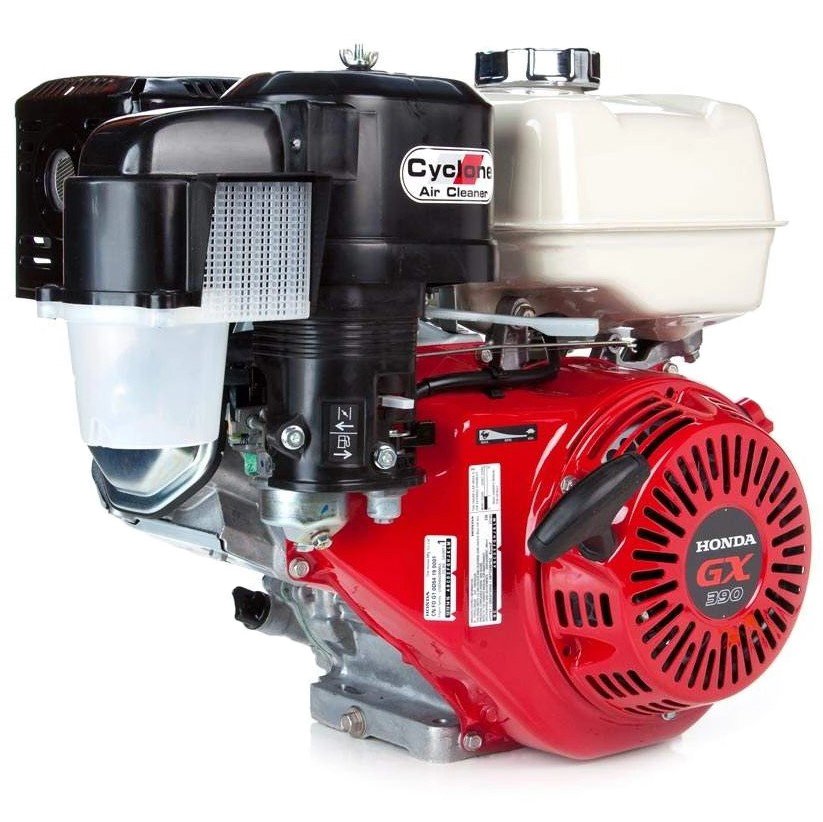

GX390 QXC9 Engine for Honda.
OEM No. GX390 QXC9
Specifications:
• ENGINE TYPE: AIR COOLED, 4-STROKE, OHV, SINGLE CYLINDER
• BORE X STROKE: 88 X 64 mm (3.5 X 2.5 inch)
• DISPLACEMENT: 389cm3 (23.7 cu inch)
• COMPRESSION RATIO: 8.0 : 1
• NET HORSE POWER OUTPUT: 8.2kW (11.0 HP) AT 3,600 RPM
• NET TORQUE: 25.1 Nm (18.5 lbs ft) AT 2,500 RPM
• PTO SHAFT ROTATION: COUNTERCLOCKWISE, (FROM PTO SHAFT SIDE)
• IGNITION SYSTEM: TRANSISTORIZED MAGNETO IGNITION
• STARTING SYSTEM: RECOIL OR ELECTRIC STARTER
• CARBURETOR: HORIZONTAL TYPE BUTTERFLY VALVE
• LUBRICATION SYSTEM: FORCED SPLASH
• GOVERNOR SYSTEM: CENTRIFUGAL MECHANICAL
• AIR CLEANER: DUAL ELEMENT TYPE (OPT CYCLONE TYPE)
• OIL CAPACITY: 1.1|(1.16 US qt, 0.97 Imp qt)
• FUEL TANK CAPACITY(LITER): 6.1|(6.4 US qt.)
• DIMINSIONS (L x W x H): 405 mm (15.9 inch) X 450 mm (17.7 inch) X 443 mm (17.4 inch)
• DRY WEIGHT: 31.0 kg (68.3 lbs)
OEM No. GX390 QXC9
Specifications:
• ENGINE TYPE: AIR COOLED, 4-STROKE, OHV, SINGLE CYLINDER
• BORE X STROKE: 88 X 64 mm (3.5 X 2.5 inch)
• DISPLACEMENT: 389cm3 (23.7 cu inch)
• COMPRESSION RATIO: 8.0 : 1
• NET HORSE POWER OUTPUT: 8.2kW (11.0 HP) AT 3,600 RPM
• NET TORQUE: 25.1 Nm (18.5 lbs ft) AT 2,500 RPM
• PTO SHAFT ROTATION: COUNTERCLOCKWISE, (FROM PTO SHAFT SIDE)
• IGNITION SYSTEM: TRANSISTORIZED MAGNETO IGNITION
• STARTING SYSTEM: RECOIL OR ELECTRIC STARTER
• CARBURETOR: HORIZONTAL TYPE BUTTERFLY VALVE
• LUBRICATION SYSTEM: FORCED SPLASH
• GOVERNOR SYSTEM: CENTRIFUGAL MECHANICAL
• AIR CLEANER: DUAL ELEMENT TYPE (OPT CYCLONE TYPE)
• OIL CAPACITY: 1.1|(1.16 US qt, 0.97 Imp qt)
• FUEL TANK CAPACITY(LITER): 6.1|(6.4 US qt.)
• DIMINSIONS (L x W x H): 405 mm (15.9 inch) X 450 mm (17.7 inch) X 443 mm (17.4 inch)
• DRY WEIGHT: 31.0 kg (68.3 lbs)
Product Specifications
L&S Part No. | GX390 QXC9 |
---|---|
Part Type | Genuine Part |
Manufacturer | Honda |
OEM No. | EGX390QXC9 |
Unit of Sale | 1 |
Fits Brands | Honda |
Machine Type | Engines |
