Description
Overview:

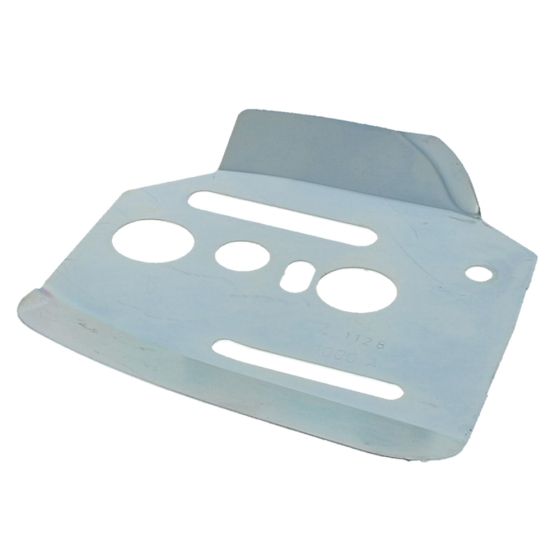

The Inner Side Plate is a genuine Stihl service part designed for professional and domestic chainsaws, including the MS 382 and MS 500i. It sits on the drive side within the side casing to support the bar and chain area and keep components correctly aligned under load. Manufactured from robust stamped steel with a durable finish, it withstands vibration, heat, and the rigours of regular cutting work. Correctly fitted, it helps maintain structural integrity around the clutch, sprocket and brake housing, supporting reliable chain operation and safe performance. As an OEM component, it offers the right geometry and clearances for a precise fit, making it a straightforward replacement during routine maintenance or repairs on compatible Stihl machines.
Key Features:
- Genuine Stihl part for assured compatibility and performance (part no. 1128 664 1000)
- Stamped steel construction for strength and long service life
- Precision fit for the specified models to maintain chainline and component alignment
- Supports safe operation around the clutch, sprocket and chain brake areas
- Resistant to wear, vibration and heat in demanding cutting environments
- Direct replacement using existing fixings; no modifications required
- Helps reduce downtime by making routine servicing quicker and easier
- Suitable for regular professional use and heavy-duty DIY tasks
Typical Applications:
Used during chain, bar, and clutch-side maintenance or repair on compatible Stihl chainsaws. Ideal when refurbishing worn or damaged side-plate assemblies to restore proper alignment and casing stability. Common in forestry, arborist work, site clearance, landscaping, and firewood processing where reliable, safe chain drive operation is essential.
Also known as:
Inner clutch cover plate, inner guide plate, chain cover inner plate, sprocket cover inner plate, chainsaw inner side plate, chainsaw side plate (inner).
Fits Models:
MS382, MS462, MS462C, MS500i
Alternate Part Numbers:
1128-664-1000, 1128-664-1001, 11286641000, 11286641001, 1128 664 1000
Product Specifications
| L&S Part No. | 1128 664 1000 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 11286641000 |
| Unit of Sale | 1 |
| Machine Type | Chainsaws |
| Fits Brands | Stihl |
| Key Features | - Genuine Stihl part for MS382, MS462, MS462C, MS500i - Stamped steel construction for durability - Precision fit maintains chainline and alignment - Resistant to wear, vibration, and heat - Direct replacement; no modifications needed |
| Fits Models | MS382 | MS462, MS462C | MS500i |
