Description
Overview:

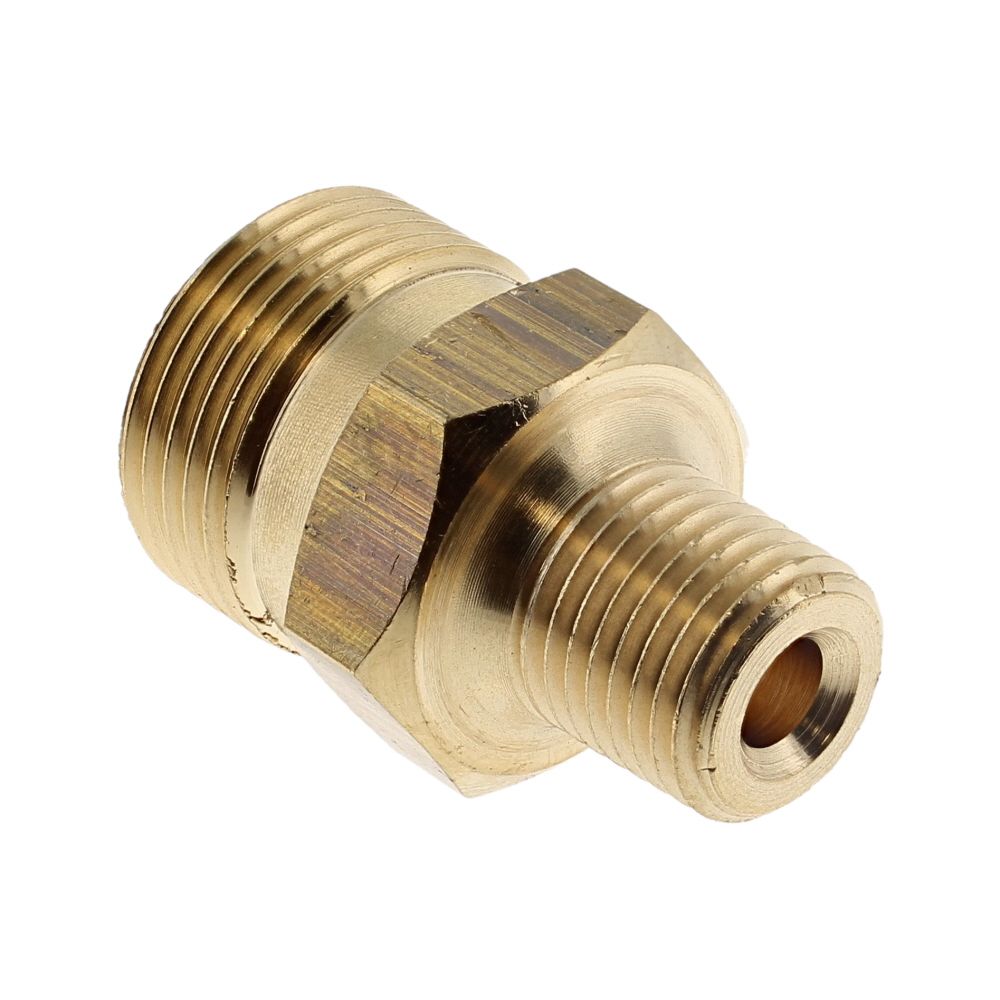

The Thread Adaptor M22 x 1.5M 1/4" BSP Male is a brass, male-to-male hydraulic fitting for joining components with different thread standards. One end has an M22 x 1.5 metric male thread, the other a 1/4" BSP male thread (approximately 6.35 mm nominal). It is machined from corrosion‐resistant brass for reliable sealing and long service life in oil-based hydraulic circuits. Rated up to 250 bar (3626 psi), 40 L/min (10.57 gallons per minute), and 160°C (320°F), it suits demanding workshop and onsite conditions. A 14 mm pin is included for enhanced adaptability where specified systems require it. Suitable for use across hydraulic tools and machinery such as power packs, cylinders, valves, compact plant, and agricultural equipment. Manufacturer Part Number (MPN): 600 214M.
Key Features:
- Brass construction for durability, corrosion resistance, and repeatable sealing in hydraulic oil environments.
- Threads: M22 x 1.5 male to 1/4" BSP male (1/4" ≈ 6.35 mm nominal) for straightforward size reduction and system integration.
- High pressure capability: up to 250 bar (3626 psi) for robust performance in typical mobile and industrial hydraulics.
- Flow capacity: up to 40 L/min (10.57 gallons per minute) to support efficient circuit throughput.
- Temperature range: operates effectively up to 160°C (320°F) for hot-oil applications and demanding duty cycles.
- Hex body for easy tightening with standard spanners, helping achieve correct torque and alignment.
- Clean internal bore to minimise pressure drop and maintain stable flow characteristics.
- Compact form factor for tight installations and retrofit work.
- 14 mm pin included to extend compatibility where a pinned interface is required.
- Simple to fit and remove for maintenance, testing, and circuit changes.
Typical Applications:
Used to adapt hose assemblies, valves, gauges, test ports, pumps, and cylinders where a metric M22 x 1.5 thread must connect to a 1/4" (6.35 mm) BSP interface. Common on compact plant, agricultural machinery, factory maintenance, power pack rigs, hydraulic test benches, and retrofit or repair work where mixed thread standards appear.
Also known as:
Hydraulic thread adaptor, male-male reducer, M22 to 1/4" BSP connector, pipe adaptor, hose fitting adaptor, metric-to-BSP coupling, hydraulic union, thread converter, reducer fitting.
Product Specifications
| L&S Part No. | 600 214M |
|---|---|
| Unit of Sale | 1 |
| Size | M22 x 1.5M 1/4" BSP Male |
| Machine Type | Hydraulic Attachments |
