Description
Overview:

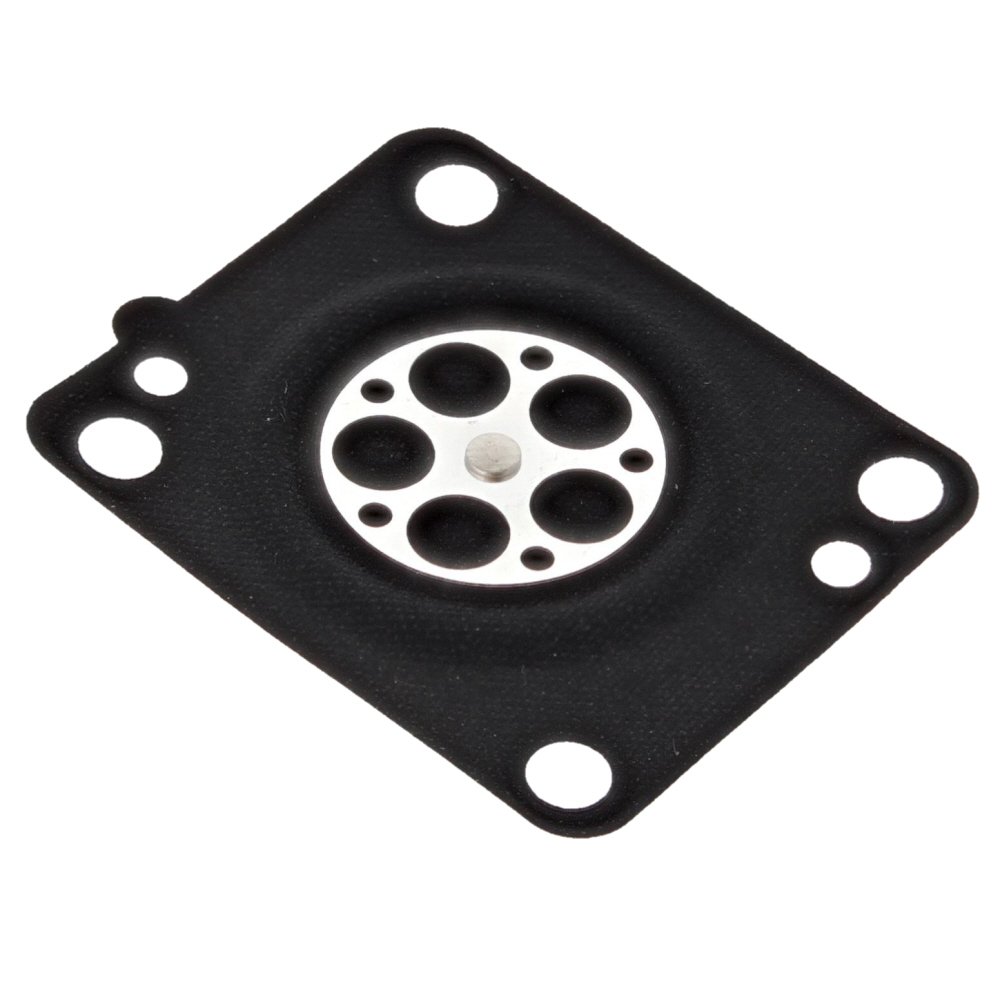

This metering diaphragm is a Genuine Stihl replacement part that controls fuel delivery in the two‐stroke fuel system of your machine. Built from fuel‐resistant, flexible material to withstand regular use, it keeps the mixture consistent from idle to full load, helping your engine start easily, pick up cleanly, and run smoothly. It is a direct replacement for OEM No. 4149 121 4702 and is suitable for a wide range of Stihl brushcutters, hedge trimmers, and Kombi engines. Ideal for routine servicing or a repair when the original diaphragm has hardened, torn, or lost flexibility, it helps restore reliable performance. Commonly used on the Stihl FS 94 brushcutter and HL 94 long‐reach hedge trimmer, it offers a precise fit and dependable operation.
Key Features:
- Genuine Stihl part for assured fit, function, and compatibility
- Direct replacement for OEM No. 4149 121 4702
- Accurate fuel metering for smoother starting, stable idle, and crisp acceleration
- Durable, fuel‐resistant construction for long service life
- Helps prevent flooding, flat spots, and lean running under load
- Maintains performance and reduces downtime between services
- Lightweight, precise profile for correct seating in the metering chamber
- Straightforward to fit during a standard service with basic tools
- Suitable for professional and domestic machines used daily or seasonally
Typical Applications:
Used during maintenance or repair of Stihl two‐stroke equipment when poor starting, erratic idle, hesitation on throttle, or increased fuel consumption point to a worn diaphragm. Common in landscaping, grounds care, and property maintenance on brushcutters, long‐reach hedge trimmers, and Kombi power units operating in varied weather and dusty conditions.
Also known as:
Carburettor diaphragm, fuel metering diaphragm, metering membrane, carb membrane, fuel control diaphragm.
Fits Models:
FS 23 C-E, FS 23 RC-E, FS 23 SC-E, FS 24 C-E, FS 24 RC-E, FS 24 SC-E, FS 26 C-E, FS 26 RC-E, FS 26 SC-E, FS 94, FS 94 C-E, FS 94 C-E Z, FS 94 R-Z, FS 94 RC-E Z, FS25 C-E, FS25CE, FS94, FS94 C, FS94C, FS94R, FS94RC, HL 91 K-Z, HL 91 KC-E, HL 92 C-E, HL 92 KC-E, HL 94 C-E, HL 94 K-Z, HL 94 KC-E, HL 94-Z, HL94Z, KM 94 R-Z, KM 94 RC-E, KM 94 RC-E Z, SP 92 C-E, SP 92 TC-E
Alternate Part Numbers:
4149 121 4702, 4149-121-4702, 41491214702
Product Specifications
| L&S Part No. | 4149 121 4702 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 41491214702 |
| Unit of Sale | 1 |
| Applications | FS 23 C-E, FS 23 RC-E, FS 23 SC-E, FS 24 C-E, FS 24 RC-E, FS 24 SC-E, FS 26 C-E, FS 26 RC-E, FS 26 SC-E, FS 94, FS 94 C-E, FS 94 C-E Z, FS 94 R-Z, FS 94 RC-E Z, FS25 C-E, FS25CE, FS94, FS94 C, FS94C, FS94R, FS94RC, HL 91 K-Z, HL 91 KC-E, HL 92 C-E, HL 92 KC-E, HL 94 C-E, HL 94 K-Z, HL 94 KC-E, HL 94-Z, HL94Z, KM 94 R-Z, KM 94 RC-E, KM 94 RC-E Z, SP 92 C-E, SP 92 TC-E |
| Machine Type | Brushcutters, Long Reach Hedgetrimmers, Kombi Tools |
| Fits Brands | Stihl |
| Fits Models | FS94, FS94 C, FS94R, FS94RC |
