Description
Overview:

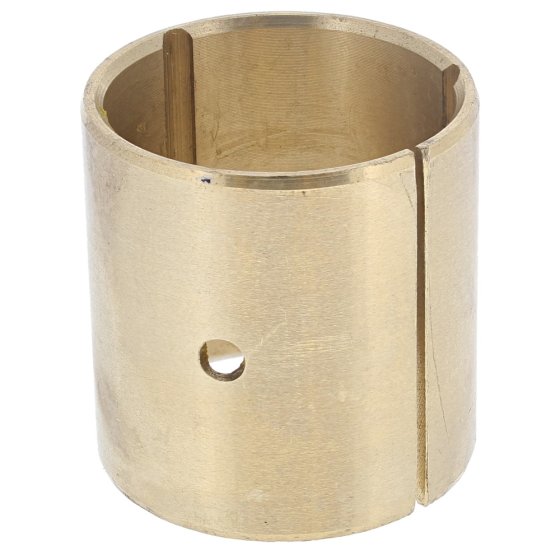

This bush (Position 10 Ram) is a non-genuine replacement part designed for the JCB 801.6 and 8016 Mini Excavators. It is a precision-machined metal sleeve that supports the ram pivot, helping to keep the pin running smoothly and to reduce friction and wear at the joint. The bush maintains correct clearances in the hydraulic linkage so the cylinder can operate accurately under load. Dimensions are 30 mm inner diameter, 34 mm outer diameter, and 35 mm length. Its durable construction suits demanding site conditions and routine maintenance schedules. Use it to replace a worn or ovalised bush to restore tight fit, smoother articulation, and consistent performance in the ram assembly and adjacent linkages on compact excavators in everyday digging, grading, or utility work.
Key Features:
- Non-genuine, high-quality replacement for the ram Position 10 bush on JCB 801.6/8016
- Precision dimensions: 30 mm I.D., 34 mm O.D., 35 mm length for a reliable, repeatable fit
- Smooth internal bore to minimise friction and reduce pin wear during operation
- Robust metal construction suitable for heavy-duty, on-site use and frequent cycling
- Helps restore correct pin alignment and joint tightness for improved control
- Aids in reducing vibration and play at the ram pivot point
- Straightforward to fit with appropriate pressing tools and standard workshop practices
- Designed for a snug housing fit to resist rotation and extend service life
- Compatible with regular lubrication routines to support long-term reliability
- Cost-effective alternative to OEM while maintaining dependable performance
Typical Applications:
Used at the hydraulic ram pivot on compact excavators to support the pin and allow controlled movement. Ideal for restoring smooth operation in boom, dipper or blade cylinder linkages on the JCB 801.6/8016 during routine overhauls, pin-and-bush refreshes, or after wear causes excess play or noise in the joint.
Also known as:
Bush, plain bearing, bearing sleeve, pivot bush, hydraulic cylinder bush, ram eye bush, sleeve bearing, linkage bush, wear bush, bushing insert. These terms describe the same type of component used to support a pin and reduce friction in a rotating or oscillating joint.
Fits Models:
801.6, 8016
Product Specifications
| L&S Part No. | 202 1485 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | 30mm I/D x 34mm O/D x 35mm High |
| Applications | 801.6, 8016 |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 801.6 |
