Description
Overview:

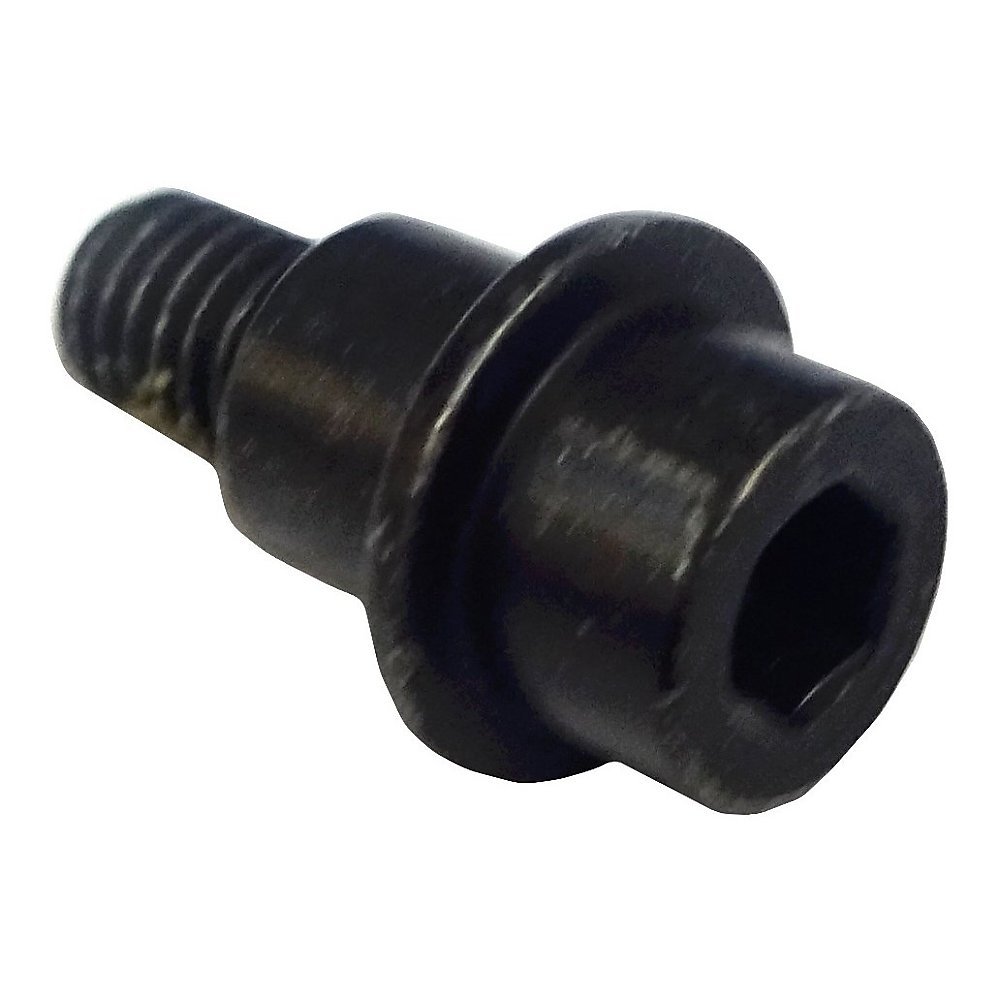

This Shoulder Screw 10-32 x 1/2 is a genuine Paslode/Spit OEM fastener designed for the IM350+ and IM350 nail guns (IM350 post 02/2006). Made from durable steel, it provides precise location and smooth movement where a shouldered fixing is required, helping to keep key assemblies aligned and working reliably. The fine 10-32 UNF thread offers secure retention, while the 1/2 inch (12.7 mm) overall length suits the intended mounting depth in these tools. Supplied under Manufacturer Part Number (MPN) 901222, it meets Paslode's original specification for fit and function, making it a dependable replacement during servicing or repair. Ideal for tradespeople and DIY users who need a precise, long-lasting fastener to restore consistent nailer performance.
Key Features:
- Genuine Paslode/Spit OEM part (MPN 901222) for assured compatibility and performance
- 10-32 UNF thread (approx. 0.190 in / 4.83 mm major diameter, 32 TPI ~ 0.79 mm pitch) for secure fastening
- 1/2 in length (12.7 mm) to match the original design and seating depth
- Shouldered design helps align parts, reduce play, and minimise wear in moving assemblies
- Manufactured to OEM standards for accuracy, durability, and repeatable torque retention
- Robust steel construction suitable for demanding site and workshop conditions
- Straightforward to fit with standard workshop tools, aiding quick maintenance turnaround
- Helps restore smooth operation and reliability in IM350-series nail guns
- Suitable as a like-for-like replacement for worn, damaged, or missing screws
Typical Applications:
Used in Paslode IM350-series nailers where a shouldered fastener is needed to locate, pivot, or guide components. Common during routine servicing, refurbishment, or repairs to maintain alignment, reduce vibration, and ensure consistent firing and feed performance on site or in the workshop.
Also known as:
Shoulder bolt, shouldered screw, pivot screw, stripper bolt, 10-32 UNF machine screw, precision shoulder fastener, 10-32 x 1/2 screw, IM350 shoulder screw, nail gun fastener.
Fits Models:
IM350+
IM350
Product Specifications
| L&S Part No. | 904 0232 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Paslode/Spit |
| OEM No. | 901222 |
| Unit of Sale | 1 |
| Applications | IM350, IM350+ |
| Machine Type | Nailers |
| Fits Brands | Paslode |
| Fits Models | IM350 | IM350+ (NiCD NiMH) |
