Description
Overview:

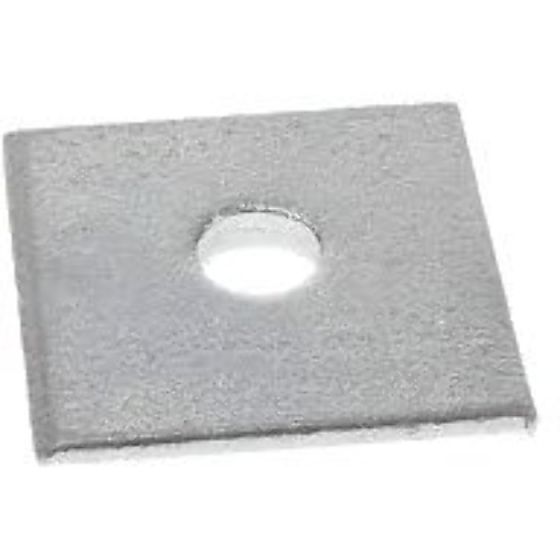

This square plate washer is a heavy-duty fixing accessory for distributing clamping loads from large bolts and threaded rod. Manufactured from durable metal, it provides a smooth, stable bearing surface that helps protect timber, steel plate, and other materials from distortion or pull-through under tightening. The plate measures 75 x 75 mm (approximately 3 in x 3 in / 76.2 x 76.2 mm), is 6 mm thick for stiffness, and has a round 26 mm inner diameter hole suited to M24 fixings. It is ideal for use on machinery mounts, base plates, brackets, and structural connections commonly found in construction, plant, and agricultural equipment. Supplied individually for flexible quantity selection. Manufacturer Part Number (MPN): 903 1194.
Key Features:
- Square 75 x 75 mm plate (approx. 3 in x 3 in / 76.2 x 76.2 mm) for broad load distribution
- M24 compatibility with a 26 mm clearance hole for standard bolts and threaded rod
- 6 mm thick for excellent rigidity and long service life under high clamping forces
- Smooth bearing surface helps protect painted surfaces and substrates from damage
- Square profile offers better anti-rotation characteristics under nuts and washers
- Durable metal construction suited to demanding construction and machinery environments
- Easy to fit using standard spanners or sockets; no special tools required
- Helps prevent pull-through on oversized or slotted holes and thin materials
- Supplied singly to match job-by-job requirements without excess stock
- Also available across a wider size range from M8 to M24 to suit different fixings
Typical Applications:
Securing machine bases, equipment frames, post shoes, and guard rails; spreading loads over timber beams or steel sections; use with anchors and threaded rod in structural connections; stabilising large washers or nuts on slotted holes; mounting compressors, generators, mixers, and other plant where a broader bearing area is needed.
Also known as:
Flat washer, spacer, shim, square washer, plate washer, bearing plate, spreader plate, structural washer, packing plate.
Product Specifications
| L&S Part No. | 903 1194 |
|---|---|
| Unit of Sale | Each |
| Size | M25 Hole - 75mm x 75mm - 6mm Thick |
| Key Features | - Square 75 x 75 mm for broad load distribution - 26 mm hole fits M24 bolts and threaded rod - 6 mm thick for rigidity under high clamping forces - Durable metal construction for demanding environments - Supplied individually for flexible quantity selection |
