Description
Overview:

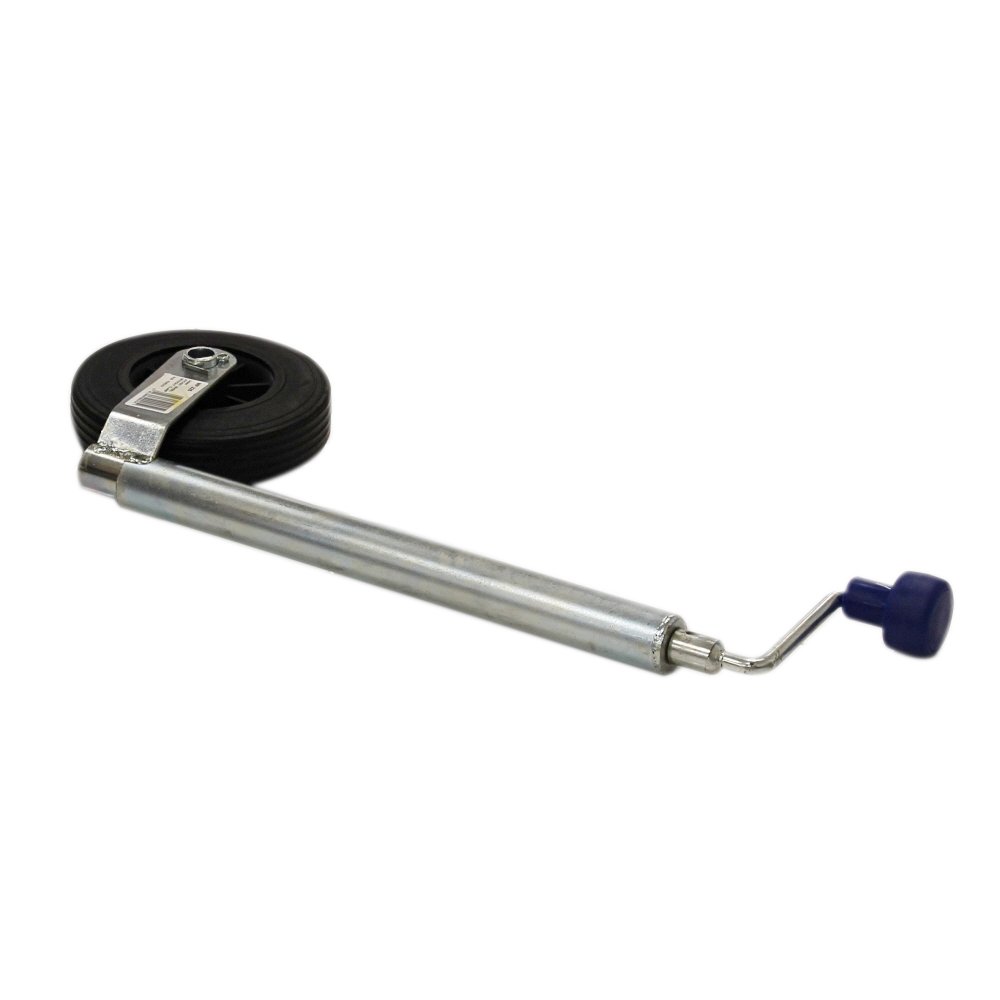

The Maypole 34mm Telescopic Jockey Leg and Wheel (MP225) is a standard-duty jockey wheel for small leisure and utility trailers. It uses a robust 34mm zinc-plated steel outer tube for strength and corrosion resistance, with a solid rubber 160 x 42mm tyre mounted on a tough plastic rim for low-maintenance, puncture-free use. A cast steel winding handle provides reliable operation and fine control when raising or lowering the trailer nose. With a height extension range of 250mm and a handle extension of 110mm, it makes hitching, unhitching, and levelling straightforward. Rated to a maximum static nose load of 75kg (when secured with a suitable clamp), it offers stable support during parking and manoeuvring. Ideal for compact A-frames and drawbars on light trailers used for camping, gardening, DIY, and general haulage.
Key Features:
- 34mm zinc-plated steel outer tube for strength and corrosion resistance
- Telescopic travel of 250mm for simple and accurate height adjustment
- Solid rubber 160 x 42mm tyre with durable plastic rim for puncture-free rolling
- Cast steel handle with 110mm extension for controlled winding and long service life
- Maximum static nose load of 75kg when clamped correctly for safe support
- Smooth screw mechanism for precise levelling on driveways, yards, and sites
- Compact design suits small trailers without cluttering the A-frame
- Helps with hitching/unhitching and reduces strain on the coupling and towball
- Compatible with standard 34mm jockey wheel clamps commonly found on light trailers
- Clear zinc plate finish resists rust in typical UK weather conditions
Typical Applications:
Used on small leisure, camping, garden, and utility trailers to raise and lower the drawbar, set the correct nose height for hitching, stabilise the trailer when parked, and assist with hand manoeuvring on hard standing. Suitable for light-duty loads where a compact, low-maintenance jockey wheel is required.
Also known as:
Jockey wheel, nose wheel, trailer jack, drawbar jack, jockey jack, trailer support wheel, nose jack, trailer stand, jockey leg assembly, winding jack.
Product Specifications
| L&S Part No. | TR225 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | MP225 |
| Unit of Sale | 1 |
| Machine Type | Trailers |
