Description
Overview:

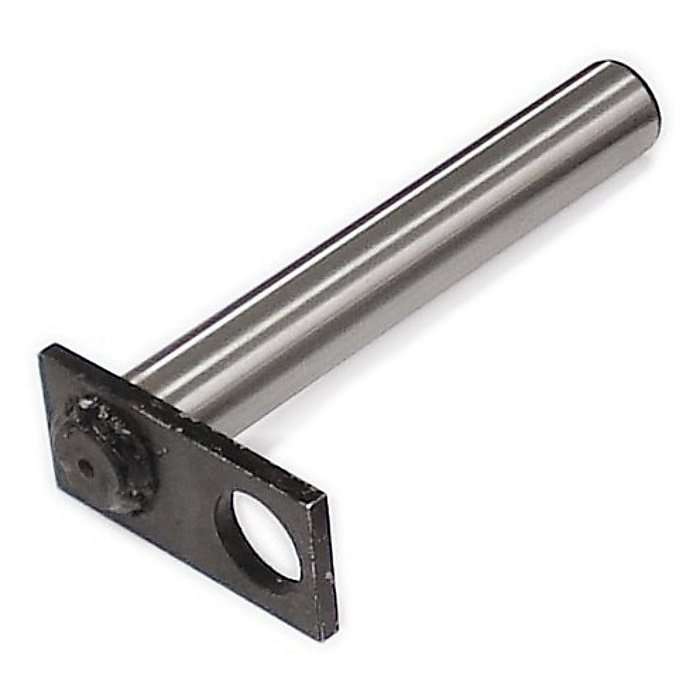

This Pin (Position 9) is a non-genuine replacement for JCB 804 PLUS mini excavators, supplied to match the function and fit of the original 232/01100 pin. Made from high-strength steel for dependable service in harsh site conditions, it locates and supports pivoting components to maintain accurate alignment and smooth movement. The pin is ungreased by design, making it suitable where external lubrication is not required or where sealed bushings are used. It measures 35 mm in diameter and 237 mm in length, providing a precise, stable fit in the specified joint. Suitable for JCB 804 PLUS models, it helps restore tight tolerances in worn assemblies and reduces play that can lead to accelerated wear. MPN: 202 1818.
Key Features:
- Non Genuine Part replacement for OEM 232/01100, offering reliable fit and function
- High-strength steel construction for durability under heavy loads and repetitive articulation
- Ungreased design for applications using external greasing systems or sealed bushes (greased version available as part no. 200 259)
- Accurate sizing: 35 mm diameter and 237 mm length for correct seating and alignment
- Helps reduce play in joints, supporting consistent breakout force and smoother operation
- Straightforward like-for-like swap with compatible retaining hardware and bushes (where fitted)
- Resists bending and ovalising in typical excavator pivot points when used within specification
- Suitable for routine maintenance schedules to prolong component life and reduce downtime
- Compatible with JCB 804 PLUS platforms for quick identification and selection
- Marked with MPN 202 1818 to aid parts tracking and service records
Typical Applications:
Used in the pivot location identified as Position 9 on JCB 804 PLUS mini excavators, this pin supports bucket, linkage, or chassis-mounted joints where precise alignment is essential. Ideal for restoring worn assemblies during scheduled maintenance or after component damage to keep the machine operating efficiently on construction, landscaping, utilities, and hire fleet work.
Also known as:
Pivot pin, bucket linkage pin, hinge pin, JCB position pin, excavator joint pin, machine pivot pin. These terms are commonly used for pins that secure rotating joints and maintain the alignment of connected components in compact excavators.
Fits Models:
804 PLUS, 804PLUS
Alternate Part Numbers:
232/01100, 23201100
Product Specifications
| L&S Part No. | 202 1818 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | Pin Diam - 35mm x Pin Length - 237mm |
| Applications | 804 PLUS, 804PLUS |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 804 PLUS |
