Description
Overview:

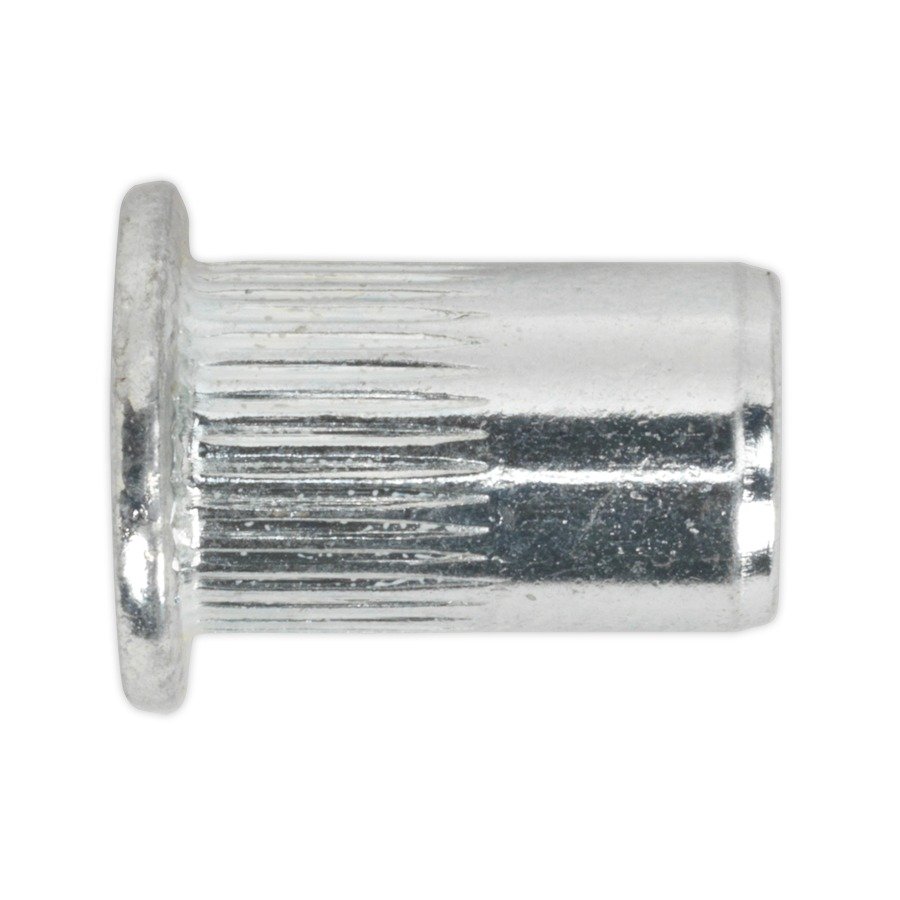

The Sealey Threaded Insert (Rivet Nut) M5 Splined, Part No. TISM5, is a blind fastener used to create a strong internal M5 thread in thin sheet materials where tapping is not possible and rear access is limited. Each insert has a splined (knurled) body and a flanged head to resist rotation and spread the load on the surface. Made from zinc‐plated metal for improved corrosion resistance, it provides a durable, reusable thread for bolts and machine screws. Fitted using a suitable rivet nut tool with an M5 mandrel, it is widely used on vehicle bodywork, machinery panels, metal enclosures, and general fabrication. Supplied as a pack of 50 for efficient workshop stocking and consistent results on larger jobs.
Key Features:
- M5 internal thread for standard 5 mm fasteners, ideal for thin sheet where a tapped thread will not hold
- Splined body grips the parent material to prevent spin-out during and after installation
- Flanged head improves bearing area and pull-out resistance on softer or thinner sheets
- Zinc-plated finish offers reliable corrosion protection in workshop and site conditions
- Blind installation from one side only - no need for rear access
- Compatible with manual, cordless, or pneumatic rivet nut setters using an M5 mandrel
- Creates a captive, reusable thread that allows repeated assembly and service work
- Consistent, clean fit in correctly sized pre-drilled holes for professional results
- Supplied in a pack of 50 to cover batch repairs and fabrication jobs
- Suitable for steel, aluminium, and other metal sheets when used with the correct hole size
Typical Applications:
Used for mounting brackets, clips, and panels on vehicle bodywork, trailers, HVAC ducting, electrical enclosures, racking, cabinets, metal gates, garden machinery guards, and construction equipment panels. Ideal wherever a reliable M5 thread is required in thin sheet with access from one side only.
Also known as:
Nutserts, rivnuts, rivet nuts, blind rivet nuts, blind threaded inserts, threaded rivets, blind nuts, captive threaded inserts.
Product Specifications
| L&S Part No. | SEATISM5 |
|---|---|
| Manufacturer | Sealey |
| OEM No. | ISM5 |
| Unit of Sale | 1 |
| Size | Height: 128mm x Width: 97mm x Depth: 18mm |
