Description
Overview:

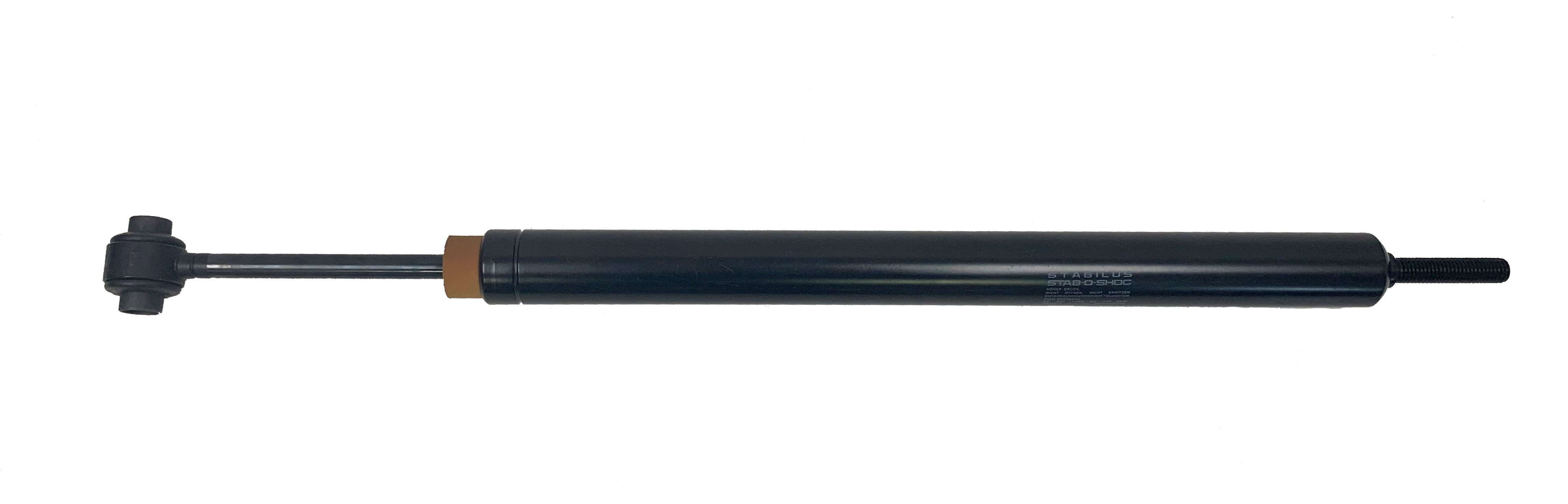

This overrun coupling damper for AL-KO 150V (MPN 764 013) is a direct replacement unit for the 150V series overrun brake coupling. It controls the drawbar movement under braking and recoil, helping to maintain consistent braking performance and reduce snatch on braked trailers. Intended for workshop maintenance and service of towing equipment using AL-KO 150V couplings, it is suitable for general duty trailers, plant and equipment transporters, and similar braked towing applications built around the 150V housing. The damper features an M10 threaded connection and through-hole mountings sized to match the 150V arrangement. Key dimensional references are provided to help confirm fitment during parts identification and to check against existing units. Supplied as a single damper assembly ready to install into the coupling body, replacing worn or weakened units that can cause poor braking response and excessive drawbar travel.
Key Features:
- Compatible with AL-KO 150V overrun coupling assemblies
- End thread size: M10 (A2)
- Mounting hole diameters: 10 mm (DØ) and 12 mm (EØ)
- Dimension A1: 45 mm; C: 29 mm; J: 13 mm
- Dimension F1: 36 mm; F2: 28 mm
- Length references: G = 349 mm; H = 520 mm
- Supplied as a single replacement damper unit
- Helps restore smooth, controlled drawbar movement under braking
Typical Applications:
Used within the AL-KO 150V overrun coupling on braked trailers and plant transport equipment. Suitable for trailer types that specify the AL-KO 150V coupling, including general duty, plant, and equipment carriers where controlled overrun damping is required. Check the listed dimensions against the original damper to confirm compatibility with your coupling housing.
Also known as:
Overrun Brake Damper
Coupling Shock Absorber
Drawbar Damper for AL-KO 150V
Maypole part number MP2056B
Product Specifications
| L&S Part No. | 764 013 |
|---|---|
| Part Type | Genuine Part |
