Description
Overview:

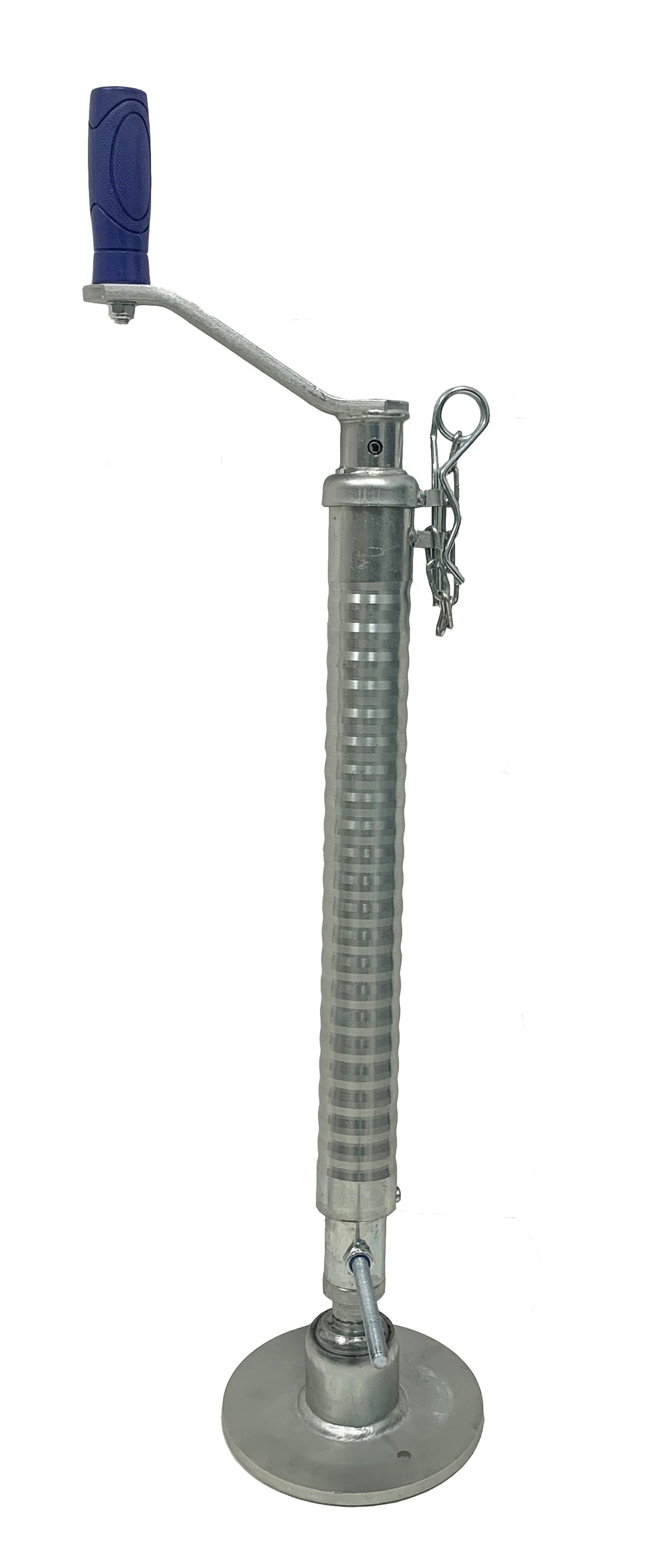

This adjustable trailer prop stand (MPN 764 036) supports an unhitched trailer level and steady during parking, loading or unloading. It is a 48mm serrated-tube, top-wind leg with 570-800mm adjustment and a pivoting ball‐joint foot on a 160mm base plate so the foot sits flat on uneven ground. Maximum static load is 400kg. Use with a serrated 48mm clamp; the clamp is not supplied and must be ordered separately (MP97455 or MP97451 cast clamp recommended). This is not a jockey wheel.
Specification:
- 48mm outer tube section
- Serrated tube profile
- 570mm to 800mm adjustment range
- Top-wind handle with ergonomic blue grip
- Maximum static load: 400kg
- 160mm diameter base plate, 8mm thick
- Pivoting ball-joint foot for uneven ground
- Heavy duty roller bearings for smooth winding
- Handle rotation prevented by heavy duty R clip and chain assembly
- Grease nipple bearing lubrication inlet
- JS500 premium coating; 500 hour salt spray test rust resistance
Fitment:
- Recommended clamp: MP97455 or MP97451 cast clamp, ordered separately
- Sister product: the fixed base plate version of this stand is L&S 763 981 (MP9793)
Also known as:
trailer leg; support stand; prop leg; landing leg; drop leg; stabiliser leg; trailer support tube; MP9795
Product Specifications
| L&S Part No. | 764 036 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
