Description
Overview:

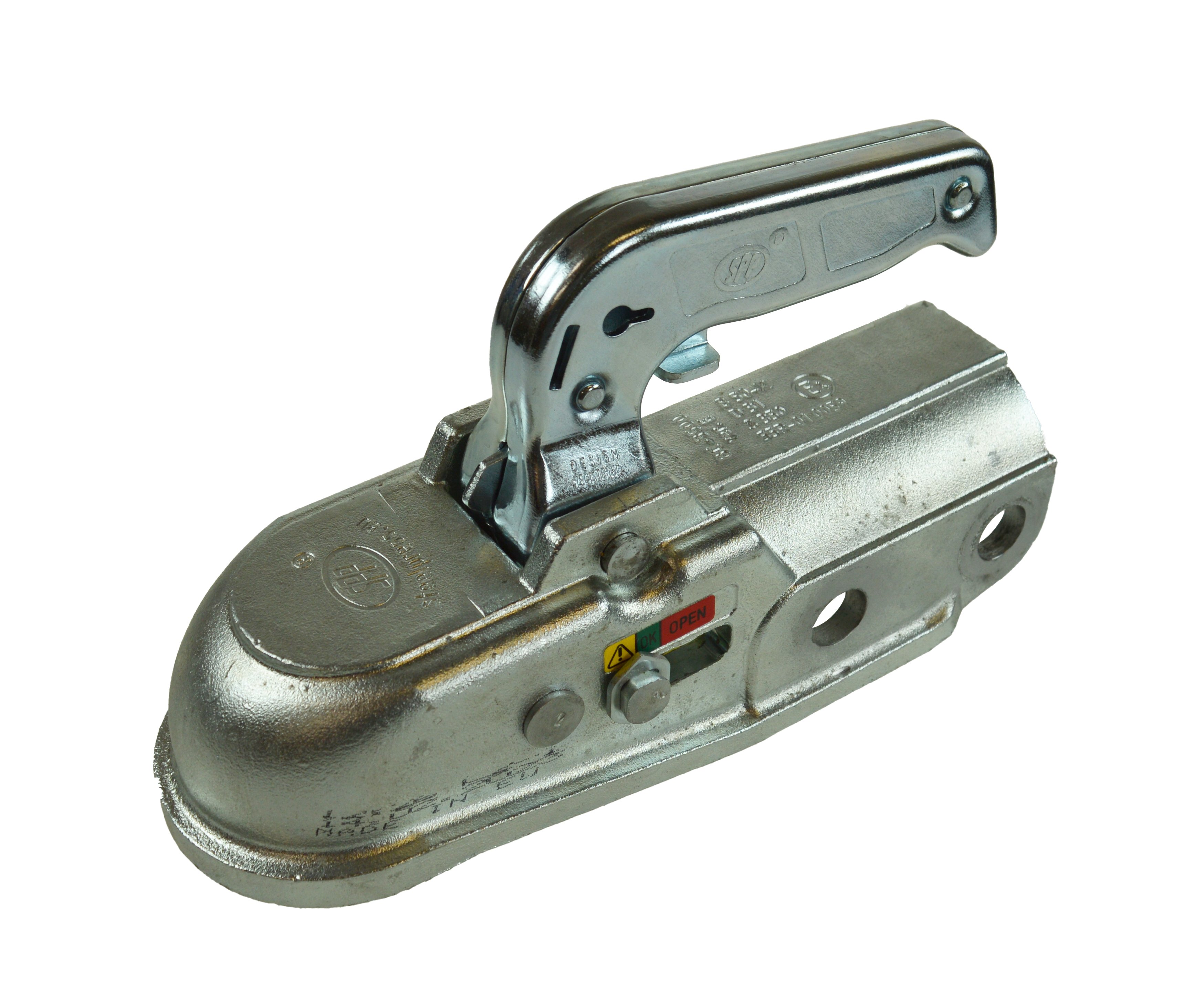

Trailer Coupling Head 60mm Round Drawbar, 3500kg Cast Steel (MPN 764 079) is a heavy-duty replacement coupling head for trailers built on a 60 mm round drawbar tube (approx. 2.36 in / 2 3/8"). The cast steel body is designed for demanding use on plant, utility and transport trailers, with an application rating up to 3500 kg (about 7,700 lb). Side mounting is via two 16 mm diameter holes (approx. 0.63 in / 5/8") and requires two M16 bolts of at least property class 10.9. The unit carries E approval and UNECE R55 approval to D31, S350. A colour-coded wear indicator assists with in-service inspection. Supplied without a lock. Compatible with Maypole accessory MP478 and can be fitted with a soft dock to protect the coupling head and tow vehicle. Suitable as a replacement for AL-KO AK351 where a 60 mm round drawbar fitment is required.
Key Features:
- Heavy-duty cast steel construction for durability
- For 60 mm round drawbars (approx. 2.36 in / 2 3/8")
- Side mounting with 2 x 16 mm holes (approx. 0.63 in / 5/8")
- Mounts using 2 x M16 bolts (minimum grade 10.9)
- Application rating up to 3500 kg (about 7,700 lb / 3.5 t)
- R55 approved (D31, S350) and E approved
- Colour-coded wear indicator for visual inspection
- Supplied without lock
- Compatible with MP478 accessory
- Can be fitted with a soft dock
- Suitable replacement for AL-KO AK351
Typical Applications:
Used on trailers with a 60 mm round tube drawbar where a heavy-duty coupling head is required, including plant trailers, car transporters, general duty and commercial flatbed trailers. Suitable as a direct replacement for AL-KO AK351 on 60 mm round drawbar installations. Accepts a soft dock and works with Maypole MP478 accessory where specified.
Also known as:
Maypole part number MP20315, 60 mm Round Tube Coupling Head, 3500 kg Trailer Coupler, 60 mm Side-Mount Coupling, Cast Steel Drawbar Coupling, AL-KO AK351 Replacement
Product Specifications
| L&S Part No. | 764 079 |
|---|---|
| Part Type | Genuine Part |
