Description
Overview:

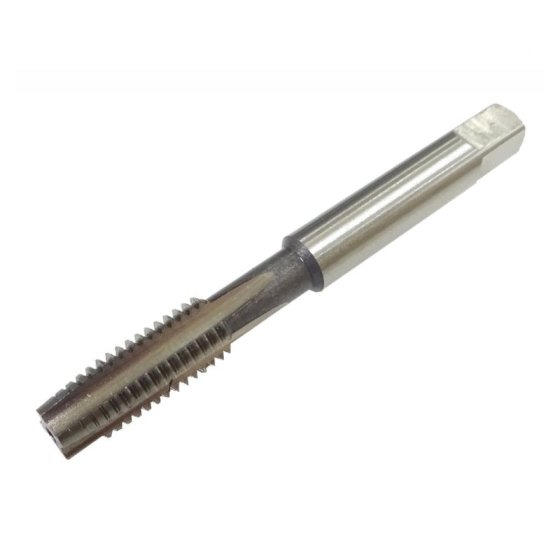

The Volkel Taper Cut 1 x 8 UNC Imperial Tap is a high-quality steel hand tap for forming or restoring internal UNC threads in metal components. It features a taper lead and straight flutes that start the thread smoothly and help keep alignment true, making it dependable for workshop, site maintenance, and DIY use. The thread size is 1 inch x 8 TPI (major diameter 25.4 mm, pitch 3.175 mm), common on heavy-duty fasteners and large fittings. Designed primarily for use with a tap wrench or T‐handle, it can also be guided under a drill press or tapping fixture to improve accuracy. Built to ANSI B1.1, it delivers consistent, coarse-thread results in steels, aluminium, brass, and cast iron when used with an appropriate cutting fluid. Supplied singly.
Key Features:
- 1-8 UNC size: 1 inch major diameter (25.4 mm); 8 TPI (3.175 mm pitch) for unified coarse threads
- Taper cut for easy starting, smooth entry, and reduced risk of cross-threading
- Straight flute design suited to manual threading and controlled chip evacuation in general-purpose work
- High-quality steel construction for durability and reliable service life
- Complies with ANSI B1.1 for dimensional accuracy and interchangeability
- Supplied individually, ideal for replacing a worn tap or completing a set
- Works with standard tap wrenches and tapping guides for better control
- Typical tapping drill size: approx. 7/8 in (22.23 mm) for 1-8 UNC threads
- Suitable for starting threads before using a second or bottoming/plug tap to finish blind holes
- Best results when used with cutting fluid to improve finish and tool life
Typical Applications:
Cutting or repairing 1-8 UNC internal threads in machine parts, fabrications, agricultural and construction equipment, pipe fittings, and fixtures. Useful for maintenance and repair, prototyping, and small-batch production. Ideal for starting a thread in through or blind holes before progressing to a second or bottoming tap where required.
Also known as:
Hand taper tap, starting tap, first tap, UNC coarse tap, 1 inch x 8 TPI tap, 1-8 UNC starter tap, internal thread cutter, metalworking tap, threading tool.
Product Specifications
| L&S Part No. | 902 1427A |
|---|---|
| Manufacturer | Volkel |
| Unit of Sale | 1 |
| Machine Type | Handheld Construction Tools |
| Key Features | - 1-8 UNC size: 1 inch diameter, 8 TPI - Taper cut for smooth entry, reduced cross-threading - High-quality steel for durability and reliability - Complies with ANSI B1.1 for accuracy - Suitable for steel, aluminium, brass, cast iron |
