Description
Overview:

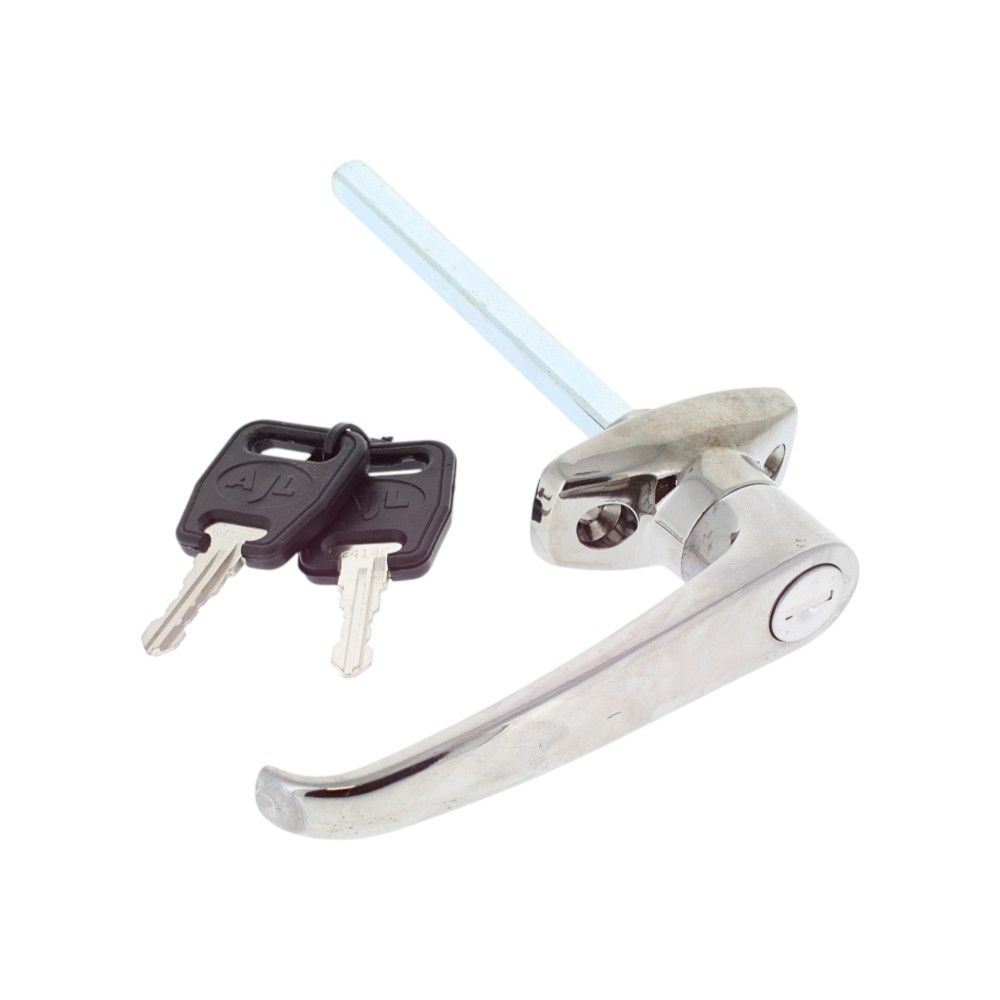

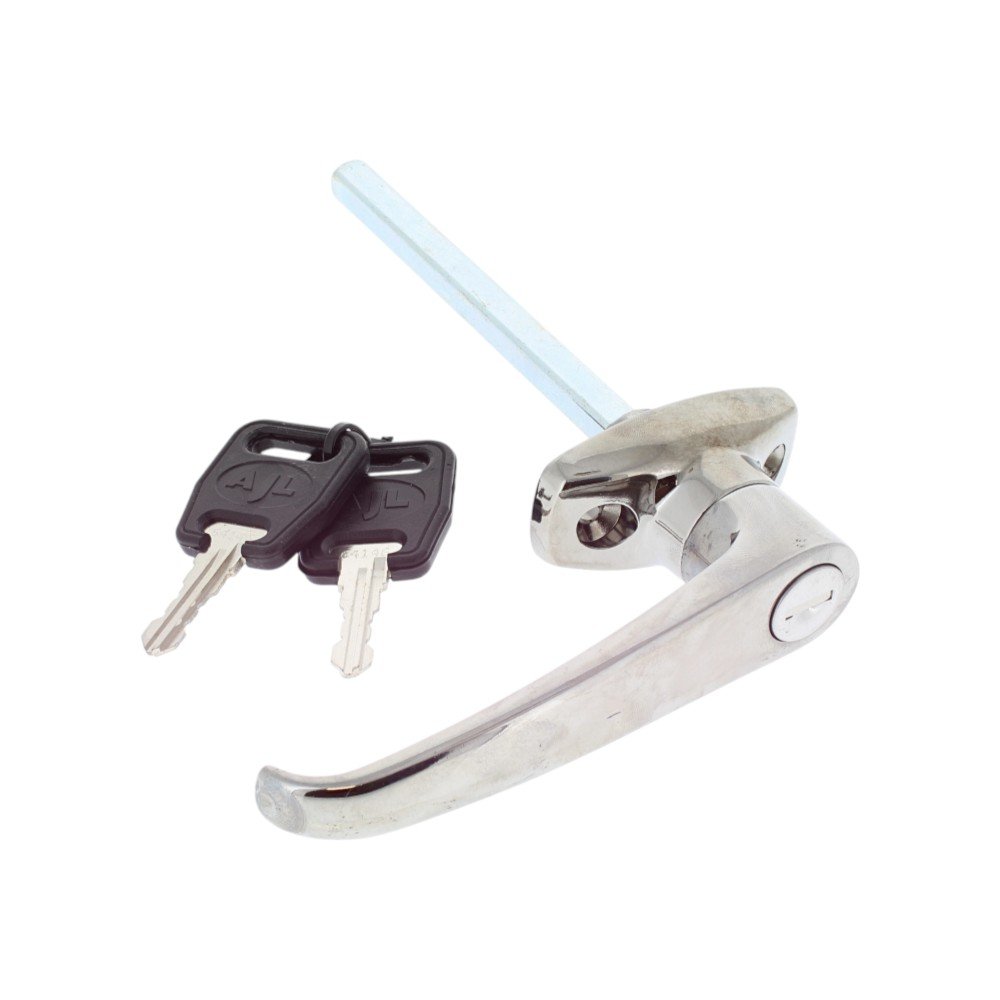

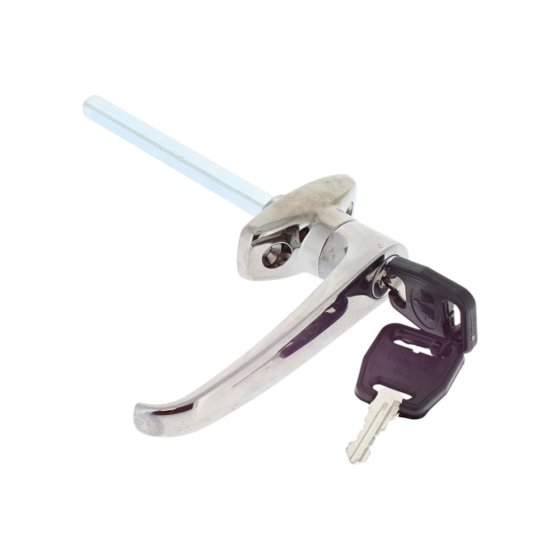

This locking chrome lever handle (MPN 800 1251) is a robust hardware component for vehicle bodies and enclosures where a secure, keyed latch action is required. Manufactured from zinc die-cast for strength and durability, it is finished in chrome for a clean, corrosion-resistant surface. The handle operates through a 360° rotation and drives an 8 mm (0.31 in) square spindle that is 100 mm (3.94 in) long, suiting common latch mechanisms. It fixes via two countersunk through-holes on 38 mm (1.50 in) centres, allowing straightforward installation on panels and doors. The assembly has an overall length of 154 mm (6.06 in) and a body depth of 42 mm (1.65 in). Supplied to mixed keys, it is suited to fleet and bodybuilder use where individual keying is preferred. A matching fibre fixing gasket (4222/606) can be used to seal the mounting face and protect painted panels.
Key Features:
- Zinc die-cast construction for strength and longevity
- Chrome plated finish for corrosion resistance and a clean appearance
- Locking handle supplied to mixed keys as standard
- 38 mm (1.50 in) fixing hole centres for body hardware compatibility
- Ø5.5 mm (0.22 in) countersunk fixing holes for through-bolting
- 8 mm (0.31 in) square spindle, 100 mm (3.94 in) long
- 360° rotation for flexible latch orientation
- Overall length 154 mm (6.06 in) for good hand clearance
- Body depth 42 mm (1.65 in) to suit typical door thicknesses
- Compatible with 4222/606 fibre fixing gasket for panel sealing
Typical Applications:
Used on commercial vehicle bodies and trailers, including truck cabs and lockers, side and rear access doors, service doors on generators and plant enclosures, bus body compartments, and horsebox lockers where a durable, lockable lever handle is required.
Also known as:
Locking lever handle; Chrome lever lock; Mixed key lever latch; 8 mm square spindle handle; Body hardware lever
Product Specifications
| L&S Part No. | 800 1251 |
|---|---|
| Unit of Sale | 1 |
