Description
Overview:

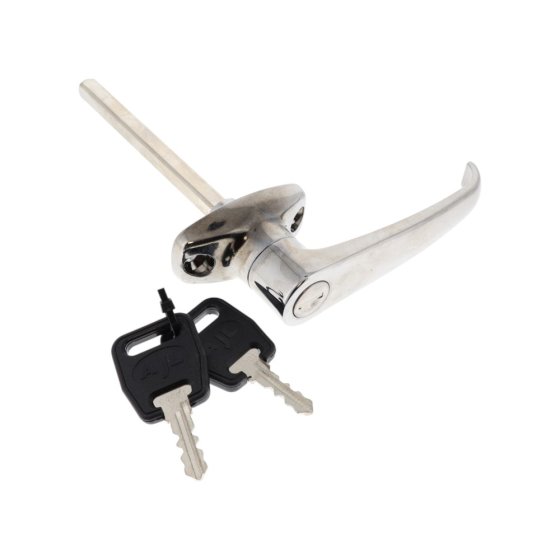

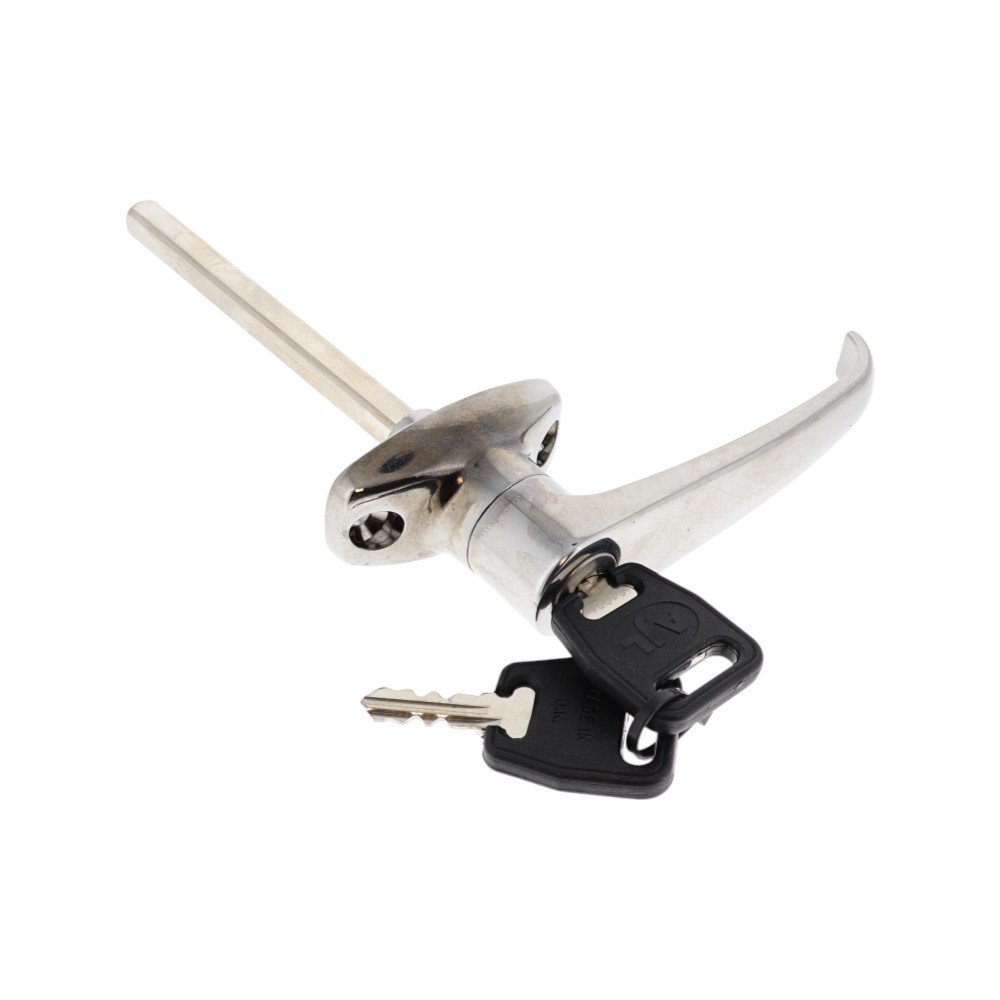

This Chrome Lever Handle, Locking Keyed Alike, 38mm Centres, 8mm Square (MPN 800 1252) is a robust, trade-grade handle for vehicle and equipment bodywork. Manufactured from zinc die-cast for durability and finished in chrome for a clean, corrosion-resistant surface, it provides secure closure on access doors, lockers and enclosures. The locking mechanism is keyed alike to simplify fleet maintenance, and the handle offers 360° rotation for versatile fitting and operation. It is built around an 8 mm square spindle (0.31 in) with a 100 mm length (3.94 in) and mounts on 38 mm hole centres (1.50 in) using countersunk fixings. The assembly measures 154 mm overall length (6.06 in) with a body depth of 42.5 mm (1.67 in). Commonly used across commercial trucks, trailers, buses, gensets, horseboxes and cabs, and compatible with the 4222 series pattern. A 4222/606 fibre fixing gasket can be used where required.
Key Features:
- Zinc die-cast construction for strength and durability
- Chrome plated finish for corrosion resistance and a clean appearance
- Locking lever, keyed alike for common keying across multiple handles
- 38 mm fixing hole centres (1.50 in) for compact mounting
- 8 mm square spindle (0.31 in) with 100 mm length (3.94 in)
- 360° handle rotation for flexible orientation
- Overall length 154 mm (6.06 in) for standard bodywork cut-outs
- Body depth 42.5 mm (1.67 in) for low-profile installations
- Ø5.5 mm countersunk fixing holes (0.22 in) for flush screw seating
- Compatible with 4222/606 fibre fixing gasket for sealing to panels
Typical Applications:
Used on commercial vehicle and plant bodywork including trucks, trailers, buses, generator sets, horseboxes and cab compartments. Suitable for locker doors, toolboxes, access panels and equipment enclosures where a compact, keyed-alike locking lever is required.
Also known as:
Locking lever latch, keyed-alike lever handle, body side door handle, locker handle, compartment lever lock
Product Specifications
| L&S Part No. | 800 1252 |
|---|---|
| Unit of Sale | 1 |
