Description
Overview:

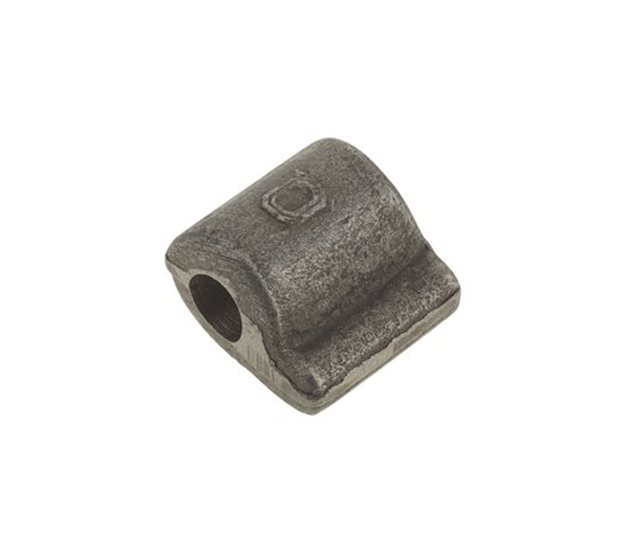

Tailboard Hinge, Weld-On Short TIR, 14mm Pin (MPN 800 1131) is a forged steel, short-pattern hinge component designed for tailboards and drop-down gates on commercial vehicles and trailers. It is supplied in self colour to suit welding during fabrication or repair, allowing the bodybuilder to finish as required after fit-up. The hinge uses a Ø14mm pin (approx 0.55 in) and has a compact body size of 42mm length (approx 1.65 in) by 40mm width (approx 1.57 in), making it suitable where mounting space is limited or for matching existing hardware. Intended for general tailboard and bodywork duties, this short TIR hinge is commonly used on tippers, trucks, plant and equipment trailers, agricultural balers and waste or scrap skips. It provides a robust pivot point for frequent opening and closing of tailgates and flaps in demanding site and transport environments.
Key Features:
- Material: Forged steel
- Finish: Self colour (uncoated)
- Fixing: Weld-on
- Pin diameter: Ø14mm (approx 0.55 in)
- Body length: 42mm (approx 1.65 in)
- Body width: 40mm (approx 1.57 in)
- Short TIR pattern hinge for compact installations
- Suited to tailboards, drop-down gates and flaps on commercial bodies
Typical Applications:
Used as a primary hinge point on tailboards and drop-down gates for tippers, rigid trucks, plant and equipment trailers, agricultural balers and refuse or scrap skips. Suitable for bodywork fabrication and fleet repairs where a weld-on short TIR hinge with a 14mm pin and compact 42 x 40mm body is required.
Also known as:
Tailgate hinge, short pattern TIR hinge, tipper body hinge, dropside hinge, weld-on body hinge, hinge knuckle
Product Specifications
| L&S Part No. | 800 1131 |
|---|---|
| Unit of Sale | 1 |
