Overview:

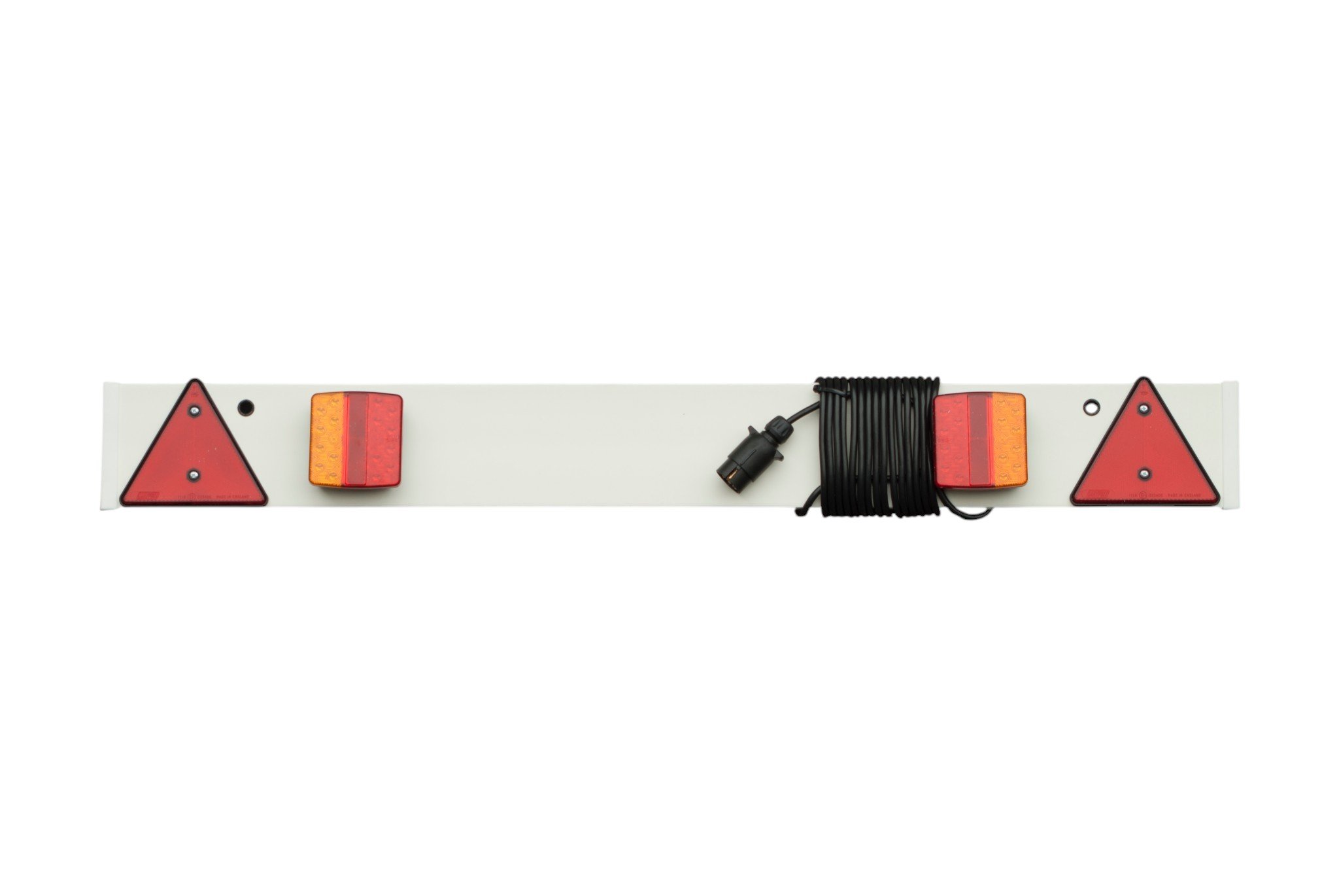

This LED trailer lighting board (MPN 763 881) provides a ready-to-use rear light setup for towed vehicles where the existing lamps are absent, damaged or obscured. The rigid 1.2 m board (approx. 4 ft) is pre-wired with a 7 m cable (approx. 23 ft) and fitted with a standard 7-pin trailer plug for quick connection to the towing vehicle. It carries a matched pair of four-function LED rear lamps for clear signalling, together with red triangular reflectors for mandatory rear identification. Pre-drilled mounting holes make it straightforward to secure the board to a trailer, plant transporter or temporary frame. Designed for everyday fleet use and manufactured in the UK, it is suitable for general-purpose trailers and transport applications across construction, plant hire and light commercial towing where a compact 1.2 m board and long lead are preferred.
Key Features:
- Board length: 1.2 m (approx. 4 ft)
- Cable length: 7 m (approx. 23 ft) pre-wired to the board
- Standard 7-pin trailer plug (Maypole ref. MP021B)
- Two LED rear lamp clusters, 4-function (Maypole refs. MP8893B and MP8899B)
- Pair of red triangular reflectors (Maypole ref. MP016B)
- Pre-drilled mounting holes for straightforward fixing
- Compact board size suited to small and medium trailers
- Manufactured in the UK
- Supplied polybagged with barcode for stock control
Typical Applications:
Used as a temporary or permanent rear lighting solution on small to medium general-purpose trailers, plant and equipment transporters, and utility trailers. Suitable where an auxiliary board is required to provide rear lamps and reflectors during haulage, vehicle movements on site, or when the original lights are obscured by loads or attachments. Compatible with towing vehicles using a standard 7-pin socket.
Also known as:
LED trailer light board; Trailer lighting board 1.2 m; 7-pin trailer board; 4-function LED trailer board; Maypole part number MP253P4F7MLED; Lamp refs MP8893B/MP8899B; Plug ref MP021B; Reflector ref MP016B
Product Specifications
| L&S Part No. | 763 881 |
|---|---|
| Part Type | Genuine Part |
