Description
Overview:

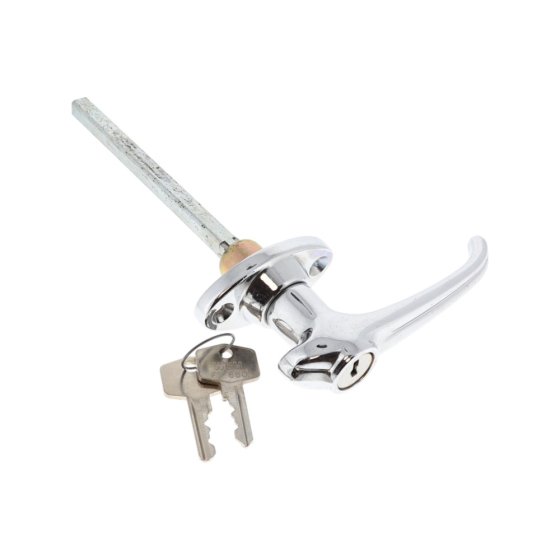

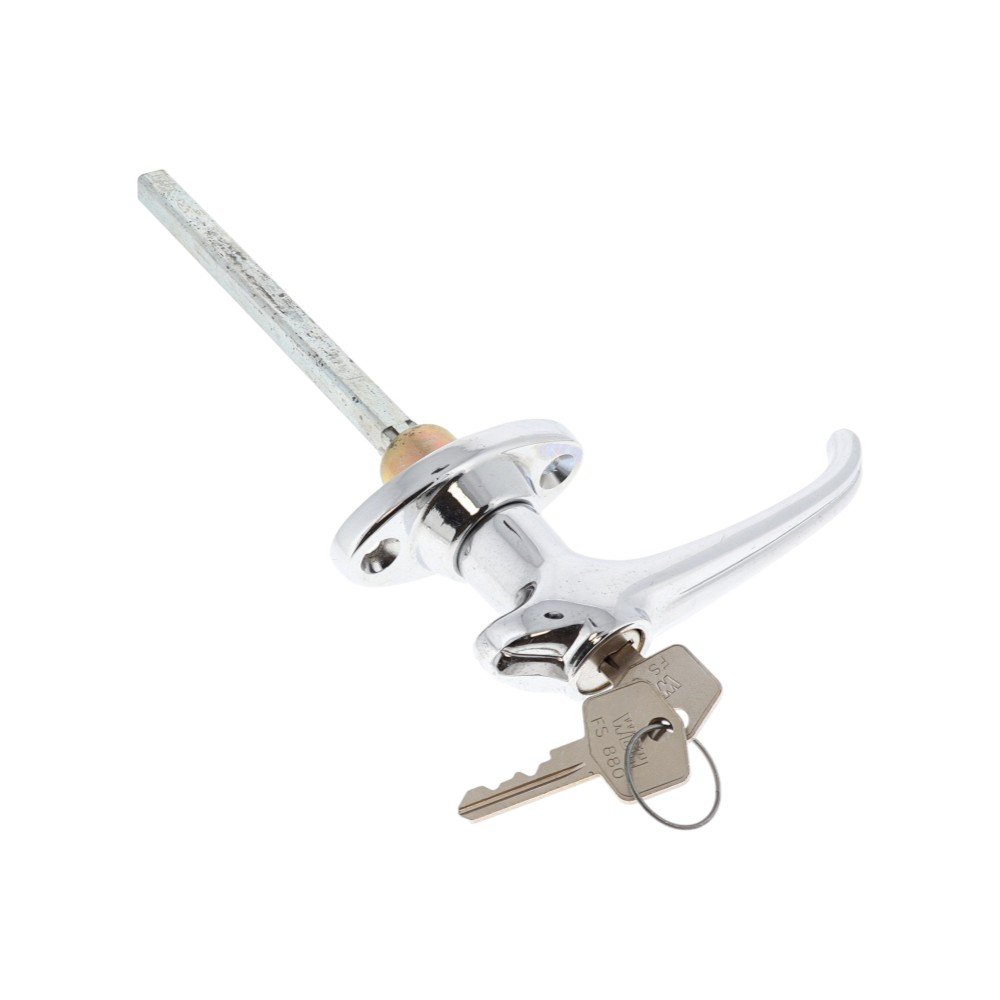

This locking chrome lever handle, keyed alike (MPN 800 1262), is a robust die-cast unit for secure closure of doors, lockers and access panels on commercial vehicles and mobile equipment. The body is zinc die-cast with a bright chrome plated finish for durability and a clean appearance, and it is supplied with a neoprene gasket to help seal against the panel. The handle uses an 8 mm (0.31 in) square spindle, 126 mm (4.96 in) long, to drive the latch mechanism, and mounts on 43.5 mm (1.71 in) hole centres with countersunk fixings. With an overall length of 180 mm (7.09 in), a face width of 97 mm (3.82 in) and a projection of 52 mm (2.05 in), it suits a wide range of bodybuilder installations. Designed for body sides, lockers, cabs and enclosures on trucks, trailers, buses, generator sets and horseboxes where a keyed-alike system is preferred for fleet convenience.
Key Features:
- Zinc die-cast construction for strength and longevity
- Chrome plated finish for corrosion resistance and easy cleaning
- Locking lever handle, keyed alike for common access across multiple units
- Hole centres: 43.5 mm (1.71 in) for mounting
- Overall length: 180 mm (7.09 in)
- Face width: 97 mm (3.82 in)
- Projection/depth: 52 mm (2.05 in)
- Square spindle: 8 mm (0.31 in) across flats, 126 mm (4.96 in) long
- Fixing holes: 5.5 mm (0.22 in) countersunk for flush screws
- Supplied with neoprene gasket to assist panel sealing
- Suitable for exterior bodywork and equipment enclosures on commercial vehicles
Typical Applications:
Used on trucks, trailers and buses for locker doors and access panels; on generator sets and other equipment enclosures; on horseboxes and cabs where a durable, keyed-alike lever handle is required for secure and consistent access across a fleet.
Also known as:
Lever latch; Body side locker handle; Keyed-alike door latch; Chrome die-cast latch; Vehicle access panel handle
Product Specifications
| L&S Part No. | 800 1262 |
|---|---|
| Unit of Sale | 1 |
