Description
Overview:

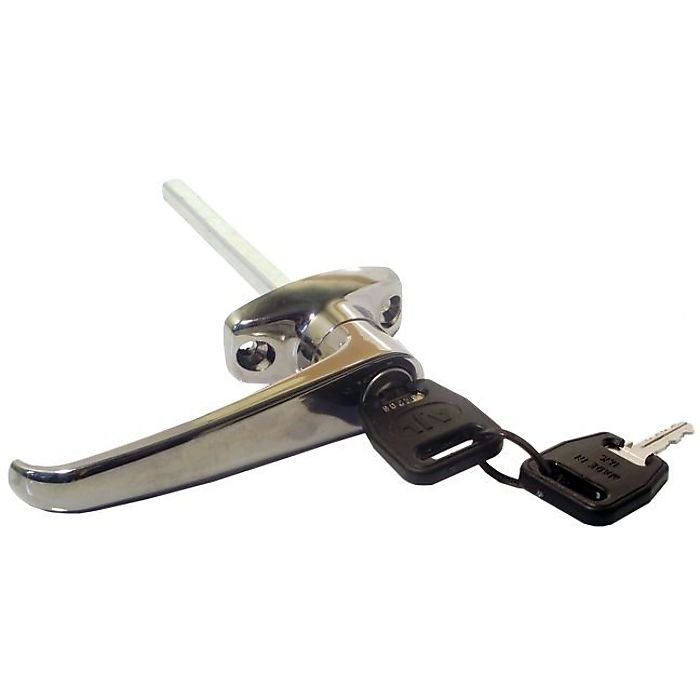

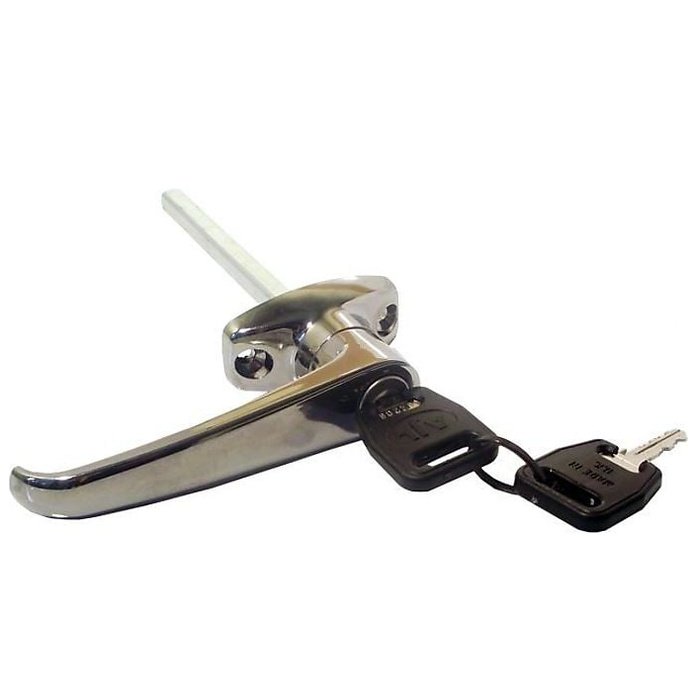

This chrome plated locking lever handle (MPN 800 1255) is a robust zinc die-cast unit designed for vehicle and equipment access doors where a secure, durable handle is required. It features a mixed key (keyed-to-differ) lock cylinder and a 100 x 8 mm square spindle (3.94 in x 5/16 in) to interface with common latches and lock cases. The handle rotates through 360° for flexible operation and mounts on 44.5 mm (1.75 in) fixing centres using countersunk fasteners. With an overall length of 153 mm (6.02 in), width of 129.5 mm (5.10 in) and depth of 42.5 mm (1.67 in), it suits door and hatch layouts on heavy-duty and light commercial applications. Typical uses include service lockers, access panels and cab or body doors on trucks, trailers, buses, generator sets and horseboxes. A fibre fixing gasket is available to help seal and protect painted surfaces and reduce vibration transfer.
Key Features:
- Zinc die-cast construction for strength and durability
- Chrome plated finish for corrosion resistance and a clean appearance
- Locking lever with mixed keys (keyed to differ) for individual security
- 100 x 8 mm square spindle (3.94 in x 5/16 in) to suit standard latches
- Full 360° rotation for universal handing and versatile operation
- Fixing hole centres: 44.5 mm (1.75 in) for straightforward replacement or retrofit
- Countersunk fixing holes Ø5.5 mm (0.22 in, approx. 7/32 in) for flush screw seating
- Overall length: 153 mm (6.02 in) for good grip and leverage
- Width: 129.5 mm (5.10 in) and depth: 42.5 mm (1.67 in) for compact door integration
- Compatible fibre fixing gasket available to assist sealing and panel protection
Typical Applications:
Suitable for body and access doors on trucks and trailers, bus and coach compartments, generator set enclosures, horsebox lockers and vehicle cabs. Commonly used on service hatches, tool lockers and general access panels in transport, towing and plant support equipment.
Also known as:
Locking Lever Handle, Keyed-to-Differ Lever, Chrome Door Lever, Vehicle Access Handle, 8 mm Square Spindle Handle
Product Specifications
| L&S Part No. | 800 1255 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Chrome-plated finish resists corrosion in outdoor conditions - Integrated lock with two keys for secure access - 3/4" (19.05 mm) size for compatibility checks - 43 mm fixing hole spacing for easy installation - Suitable for canopy and enclosure doors on machinery |
