Description
Overview:

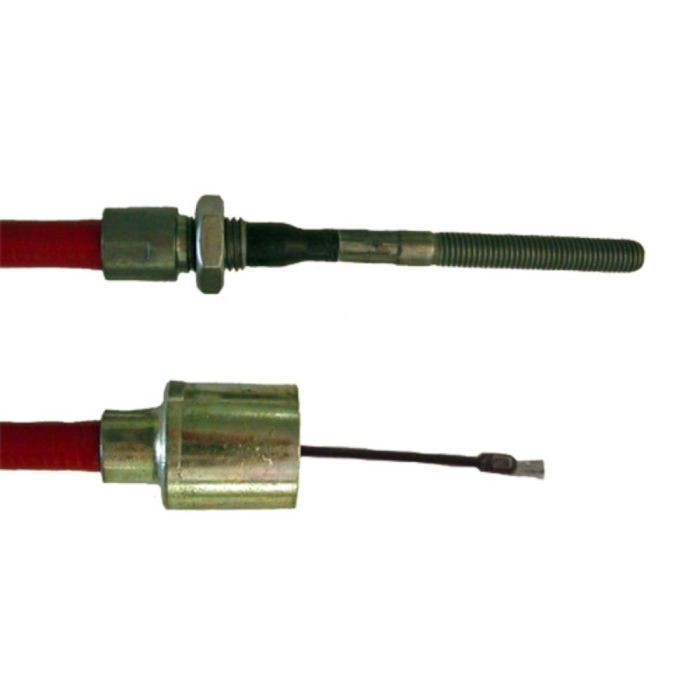

The AL-KO Longlife Detachable Brake Bowden Cable 1320mm Outer, 1530mm Inner (MPN 211 029) is a replacement brake cable for trailers and caravans fitted with AL-KO old style drum brake backplates. It uses a detachable bell end for straightforward connection at the brake backplate and a sheathed inner cable to help protect against corrosion and abrasion in service. The outer conduit measures 1320 mm (52.0 in), while the inner cable length is 1530 mm (60.2 in), providing the correct travel for typical AL-KO overrun braking systems. The bell end measures 26 mm external diameter (1.02 in) and 23.5 mm internal diameter (0.93 in) to suit the intended AL-KO old style fitment. Designed for reliable operation in fleet and trade environments, it is suitable for use across a wide range of braked trailers, plant transporters and caravans using compatible AL-KO axles and backplates.
Key Features:
- Long life detachable Bowden cable for AL-KO old style brake backplates
- Outer length 1320 mm (1.320 m / 52.0 in)
- Inner cable length 1530 mm (1.530 m / 60.2 in)
- Bell end 26 mm external / 23.5 mm internal (1.02 in / 0.93 in)
- Sheathed inner cable to resist rust and mechanical damage
- Detachable bell design for quick installation and removal at the backplate
- Suitable for use with AL-KO overrun braking linkages on braked trailers and caravans
- Dimensions match common AL-KO old style cable specifications
Typical Applications:
Used on braked trailers, caravans and light plant transporters fitted with AL-KO old style drum brakes. Typically installed between the brake compensator/expander and the wheel brake lever on AL-KO braked axles where a detachable bell end is required. Suitable for maintenance and replacement of worn or seized cables in AL-KO old style systems.
Also known as:
- Maypole part number MP41413
- AL-KO Old Style Longlife Detachable Brake Cable
- Trailer Brake Bowden Cable 1320/1530
- Detachable Bell Brake Cable
Product Specifications
| L&S Part No. | 211 029 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
