Description
Overview:

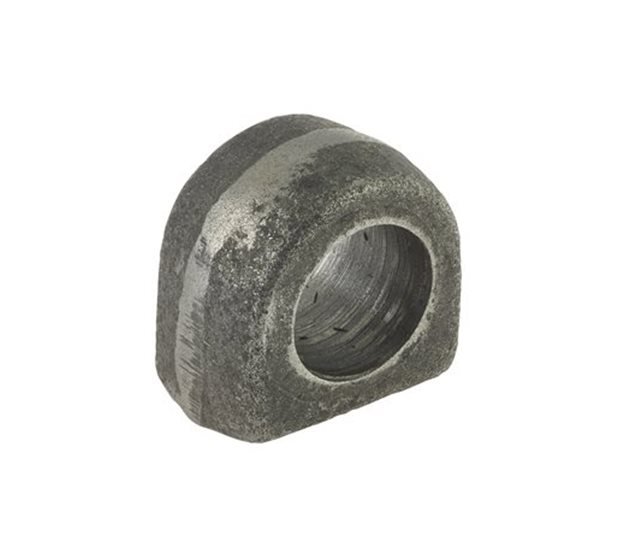

The Tailboard Locking Bar Bracket (MPN 800 1245) is a forged steel, self colour weld-on bracket designed to carry and retain a Ø25 mm (1 in) tailboard locking bar on commercial vehicle bodies. It provides a robust fixed support point for the locking bar used to secure tailboards or tailgates on tippers, trucks and trailers. The bracket is supplied in self colour for direct welding to the body, chassis or tailboard frame. Typical overall dimensions are 45 mm (1.77 in) length, 26 mm (1.02 in) width and 45 mm (1.77 in) height, allowing a compact fit where space is limited while maintaining a strong forged profile. Suited to standard 25 mm systems used across haulage, waste, agriculture and plant transport, this bracket is a straightforward choice for building or refurbishing tailboard locking bar assemblies on new fabrications and in fleet maintenance.
Key Features:
- Material: Forged steel
- Finish: Self colour
- Fixing type: Weld on
- To suit Ø25 mm (1 in) locking bars
- Overall length: 45 mm (1.77 in)
- Overall width: 26 mm (1.02 in)
- Overall height: 45 mm (1.77 in)
- Suitable for tailboard locking bar systems on tippers, trucks and trailers
Typical Applications:
Used as part of a tailboard or tailgate locking bar assembly on tippers, rigid trucks, plant and equipment trailers, agricultural trailers, balers and skips. Commonly welded to the body side or tailboard frame to support a 25 mm (1 in) locking bar that secures the tailboard closed during transport and tipping operations.
Also known as:
Tailgate bar bracket, weld-on tailboard eye, tipper tailgate bar hanger, locking bar support bracket, tailboard catch bracket
Product Specifications
| L&S Part No. | 800 1245 |
|---|---|
| Unit of Sale | 1 |
