Description

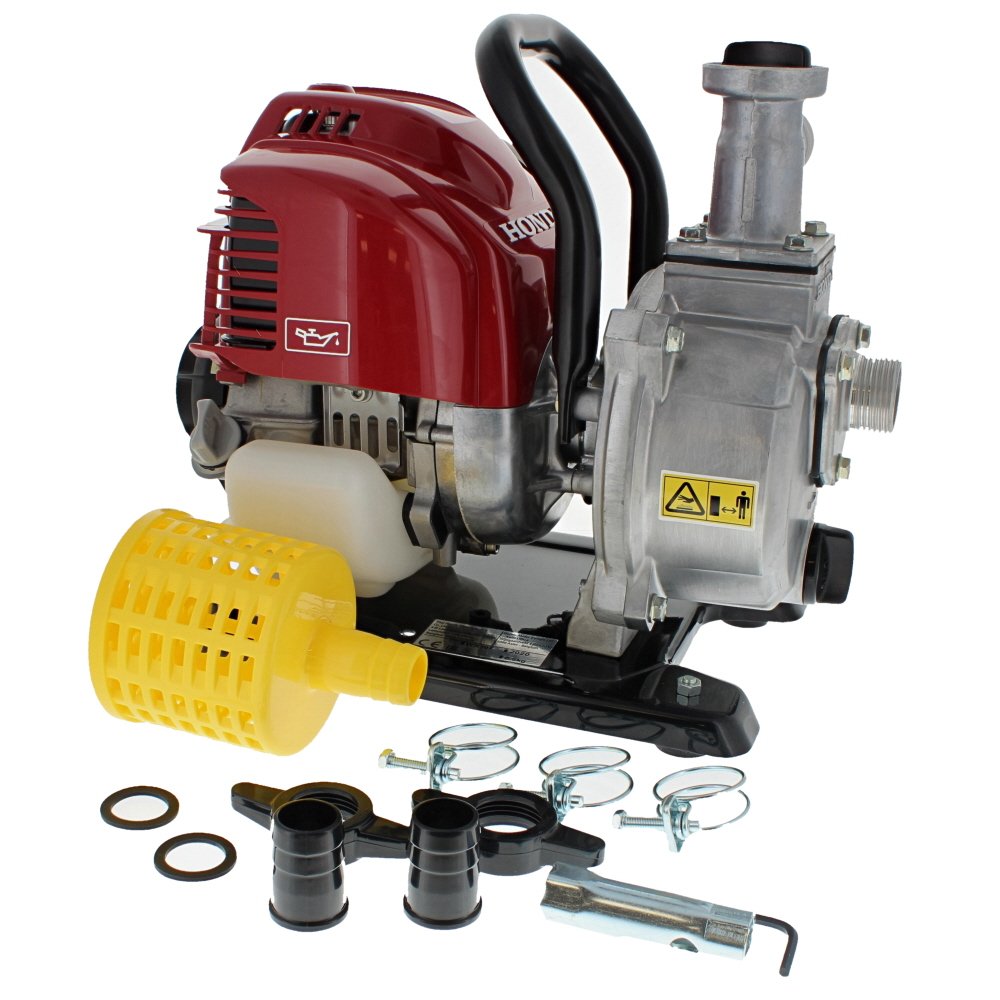

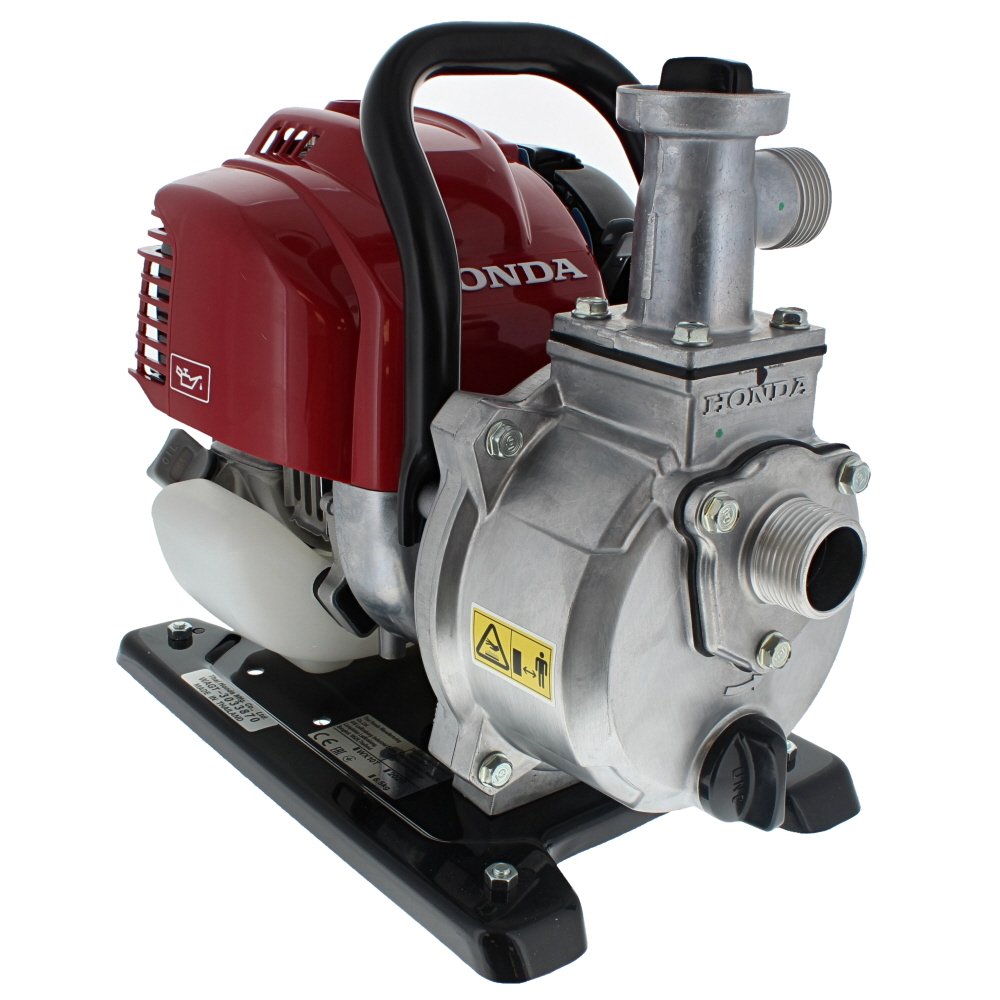

1" Honda WX10 Water Pump and 4 Stroke Petrol Engine.
Genuine Honda Pump and Engine.
OEM No. WX10.
General purpose Centrifugal Self-priming.
Engine: GX25
Displacement: 25cc
Compression Ratio: 8.0:1
Volute: Aluminum
Impeller: Aluminum
Mechanical Seal (Pump case / impeller): Carbon/Ceramic
Priming time: 80 sec. at 16.4 ft.
Drive system: Direct
Discharge capacity: 37 gals./min.
Suction port diameter: 1.0" BSP
Discharge port diameter: 1.0" BSP
Total head lift: 118 ft.
Suction head lift: 26 ft.
Maximum pressure: 51 psi
Solids handling: No
Dimensions (LxWxH): 12.8' x 8.7' x 11.8'
Dry weight: 7.5kg.
Genuine Honda Pump and Engine.
OEM No. WX10.
General purpose Centrifugal Self-priming.
Engine: GX25
Displacement: 25cc
Compression Ratio: 8.0:1
Volute: Aluminum
Impeller: Aluminum
Mechanical Seal (Pump case / impeller): Carbon/Ceramic
Priming time: 80 sec. at 16.4 ft.
Drive system: Direct
Discharge capacity: 37 gals./min.
Suction port diameter: 1.0" BSP
Discharge port diameter: 1.0" BSP
Total head lift: 118 ft.
Suction head lift: 26 ft.
Maximum pressure: 51 psi
Solids handling: No
Dimensions (LxWxH): 12.8' x 8.7' x 11.8'
Dry weight: 7.5kg.
Product Specifications
| L&S Part No. | WX10 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | PWX10TE1 |
| Unit of Sale | 1 |
| Fits Brands | Honda |
| Machine Type | Water Pumps |
