Description
Overview:

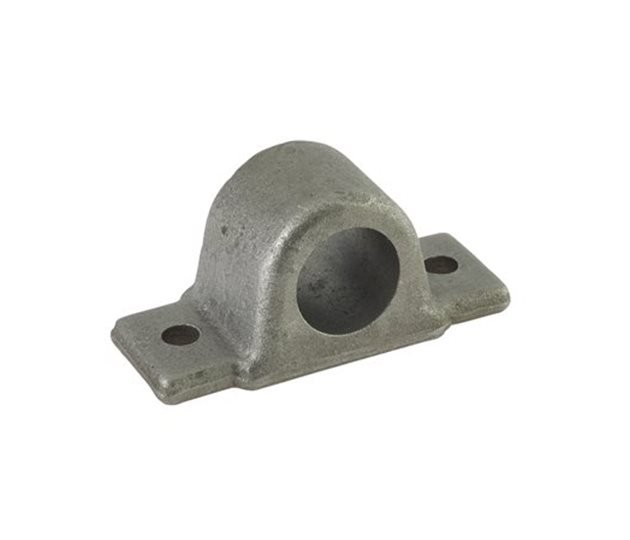

The Tailboard Locking Bar Bracket (MPN 800 1238) is a bolt-on bracket used to locate and retain a tailboard locking bar on commercial bodies and trailers. Manufactured from mild steel in a self colour (plain, untreated) finish, it provides a durable mounting point for the bar on tippers, trucks and similar equipment. The bracket has a 26 mm (1.02 in) bore to accept a 25 mm (0.98 in, approx. 1 in) locking bar with working clearance. Overall dimensions are 89 mm (3.50 in) long, 40 mm (1.57 in) wide and 42 mm (1.65 in) high. It fixes through two 8.5 mm (0.33 in) clearance holes for straightforward installation to the body or frame. Suitable for new build or maintenance of tailgate locking systems on road-going and off-road plant transport, agricultural and waste handling bodies where a simple, serviceable bolt-on keep is required.
Key Features:
- Mild steel construction for a robust mounting point
- Self colour (plain) finish ready for painting or coating on installation
- Bolt-on design for straightforward fitment and replacement
- Two fixing holes: 2 x 8.5 mm (0.33 in) clearance
- Bore/keeper diameter: 26 mm (1.02 in)
- Suits 25 mm (0.98 in, approx. 1 in) locking bar
- Body size: 89 mm (3.50 in) length x 40 mm (1.57 in) width x 42 mm (1.65 in) height
- Intended for tailboard locking systems on tipper bodies, trucks and trailers
Typical Applications:
Used as the locking bar keep on tailboards and tailgates for tippers and truck bodies, general-purpose trailers, agricultural balers and waste skips. Suitable for fleet maintenance and body repairs where a 25 mm bar is specified.
Also known as:
Locking bar keep, tailgate bar bracket, tailboard bar keep, bar keeper, tailboard catch bracket
Product Specifications
| L&S Part No. | 800 1238 |
|---|---|
| Unit of Sale | 1 |
