Description
Overview:

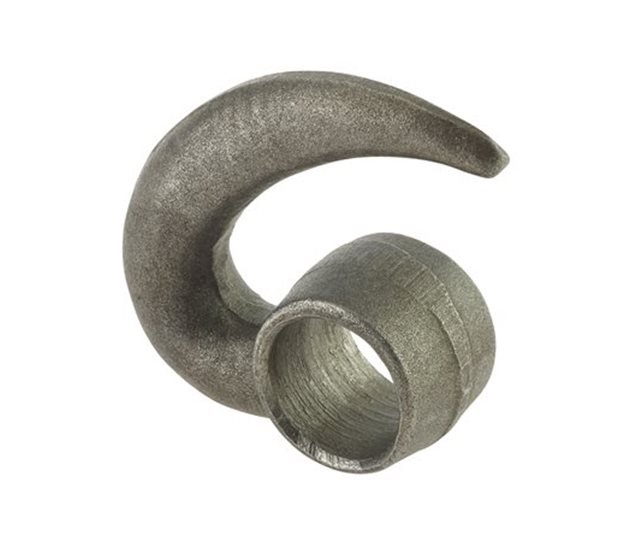

This Tailboard Locking Bar Hook (MPN 800 1235) is a forged steel, weld-on keeper used to secure a tailboard locking bar on commercial vehicle bodies and plant. The hook has a 26.2 mm (1.03") bore to provide clearance for a 25 mm (approx 1") bar, giving a robust engagement point for tailgate locking systems on tippers and other bodies. Supplied in self colour (plain) forged steel, it can be left as-is or finished to suit the vehicle bodybuilder's specification. Compact overall dimensions make it suitable for new build and repair work on trucks, trailers and site equipment. Designed for straightforward fabrication, the hook is intended to be welded directly to the body structure in the required position for reliable tailboard retention.
Key Features:
- Forged steel construction for durability
- Self colour (plain) finish for post-fabrication coating if required
- Weld-on fitting for direct attachment to bodywork
- Bore diameter: 26.2 mm (1.03") for clearance on 25 mm bar
- To suit locking bar diameter: 25 mm (0.98", approx 1")
- Overall length: 82 mm (3.23")
- Overall width: 68 mm (2.68")
- Overall height: 24.5 mm (0.96")
- Tailboard locking hook for tippers, trucks, trailers, balers and skips
- Category: Tailboard fittings / general hardware
Typical Applications:
Used as the welded keeper hook for a round locking bar on tailboards and sideboards. Common on tipper bodies, refuse and skip vehicles, general haulage trailers, agricultural balers, and other commercial vehicle bodies where a 25 mm bar is used to secure a gate or panel.
Also known as:
Tailgate locking hook, tailboard hook, locking bar keeper, tipper tailboard catch, weld-on bar hook
Product Specifications
| L&S Part No. | 800 1235 |
|---|---|
| Unit of Sale | 1 |
