Description
Overview:

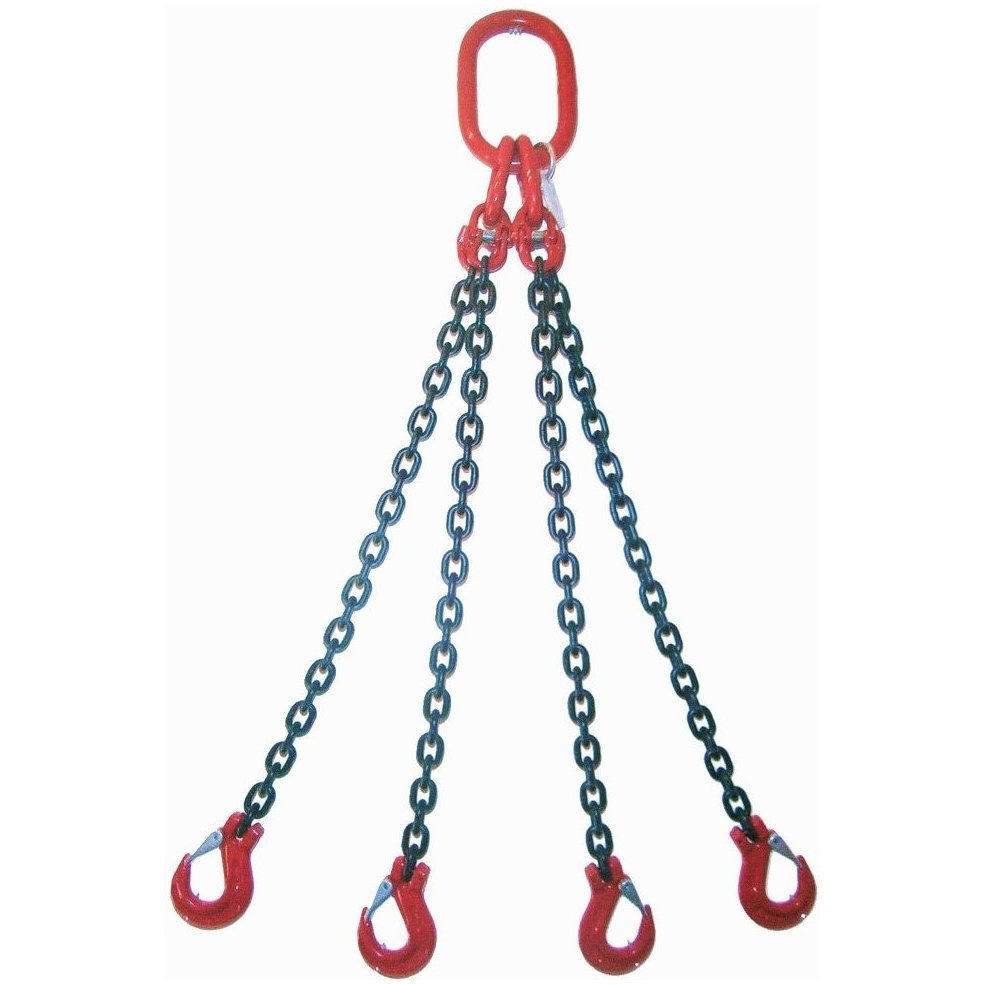

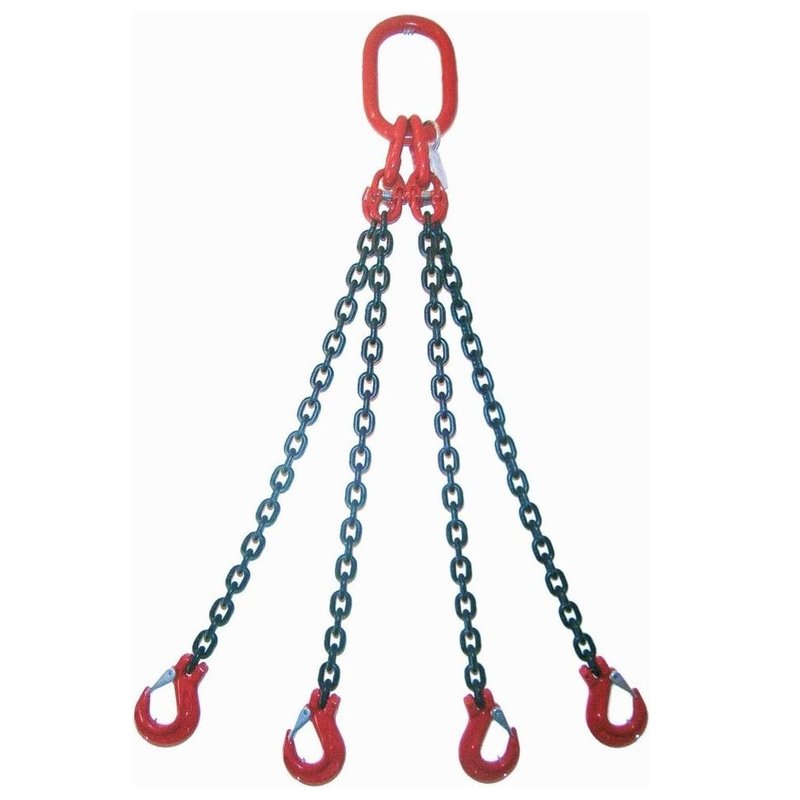

The 1 metre 7mm 4-Leg Chain Sling with Clevis Sling Hooks with Safety Catch is a heavy-duty lifting sling for site, yard, and workshop use. Built from high-strength alloy steel, it offers reliable performance for everyday rigging tasks. Four chain legs provide stable load control, while the clevis sling hooks each include a safety catch to help prevent accidental unhooking under slack. The assembly carries a Safe Working Load of 3.15 tonnes (3,150 kg) for suitable lifting operations. Chain size is 7 mm for a good balance of strength and flexibility. Approximate dimensions include a chain length of 67 cm and a total product length of 112 cm, supplied with a test certificate to support compliance checks. Suitable for use with cranes, hoists, gantries, and chain blocks.
Key Features:
- 4-leg configuration for stable lifting and better load balance on components with multiple lifting points
- Safe Working Load: 3.15 tonnes (3,150 kg) for heavy-duty site and workshop tasks
- 7 mm alloy steel chain for strength, durability, and flexibility in use
- Clevis sling hooks with integral safety catches to help secure the connection during handling
- Approximate dimensions: chain length 67 cm; total product length 112 cm; 1 m class assembly
- Large upper master link for quick attachment to compatible crane or hoist hooks
- Robust construction with a durable finish designed to withstand regular site conditions
- Supplied with a test certificate to support inspection and record keeping
- Fully assembled and ready to put into service following standard pre-use checks
- Suited to routine rigging tasks where multi-leg slings improve handling efficiency
Typical Applications:
Lifting and positioning steel fabrications, frames, machinery with rated lifting points, site equipment, and concrete or formwork assemblies. Useful for general rigging with cranes, hoists, and gantry systems in construction, plant maintenance, fabrication shops, and logistics yards. Helps control awkward or uneven loads where four pick-up points improve stability.
Also known as:
4-leg lifting chain, four-leg bridle sling, quad chain sling, bridle chain assembly, multi-leg lifting sling, grade alloy chain sling, 4-leg chain assembly with hooks, clevis hook chain sling.
Product Specifications
| L&S Part No. | 491 820 |
|---|---|
| Unit of Sale | 1 |
| Size | 1m, 7mm chain, 4-leg, SWL: 3.15T |
| Machine Type | Excavators, Loaders, Forklifts, Tractors |
