Description
Overview:

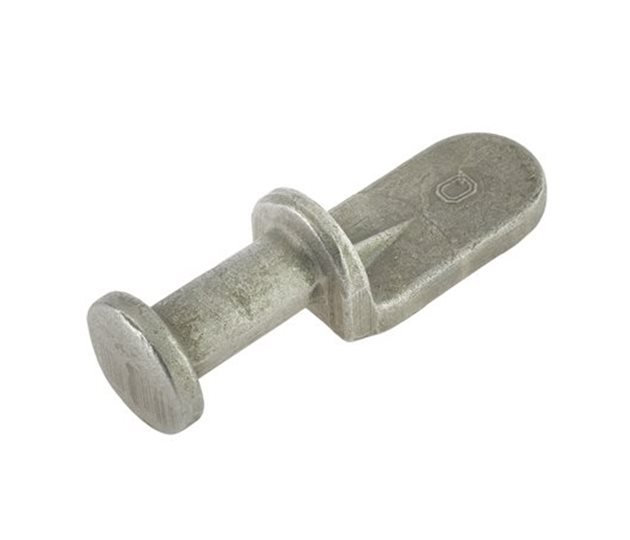

This Flat Tailboard Lug (MPN 800 1236) is a forged steel, weld-on hinge component for securing tailboards and dropside panels on commercial vehicle and trailer bodies. The flat plate base provides a stable weld area on body sides or pillars, creating a reliable pivot for a matching forket/hinge bracket. Supplied in self colour for straightforward fabrication and finishing. The lug has a Ø25 mm (0.98 in) shaft with a 51.5 mm (2.03 in) shaft length, a base size of 98 x 45 mm (3.86 x 1.77 in), and a unit length of 157.5 mm (6.20 in). Designed for bodybuilders, fleet maintenance and repair work, it is a common pattern on trucks, tippers and general haulage trailers, as well as agricultural and commercial equipment. Typical uses include tailboards and dropsides on plant transport bodies, balers, skips and horseboxes where a 25 mm hinge spigot is required.
Key Features:
- Forged steel construction for strength and durability
- Self colour (plain) finish suitable for welding and subsequent finishing
- Weld-on flat base, 98 x 45 mm (3.86 x 1.77 in)
- Shaft: Ø25 mm (0.98 in) diameter x 51.5 mm (2.03 in) length
- Unit length: 157.5 mm (6.20 in)
- Designed to pair with 25 mm tailboard forkets/hinge brackets
- Suitable for tailboard and dropside hinge points
- For use on trucks, tippers, trailers and related bodywork
Typical Applications:
Used as the male hinge spigot for tailboards and dropsides on trucks, tippers and trailers. Also specified for agricultural and commercial equipment such as balers, skips and horseboxes. Commonly installed on plant transport and general haulage bodies where a 25 mm hinge system is required.
Also known as:
Tailboard hinge lug, Tailgate hinge lug, Dropside hinge lug, Weld-on hinge spigot, Hinge pin lug, Flat plate lug, Tailboard pivot lug
Product Specifications
| L&S Part No. | 800 1236 |
|---|---|
| Unit of Sale | 1 |
