Description
Overview:

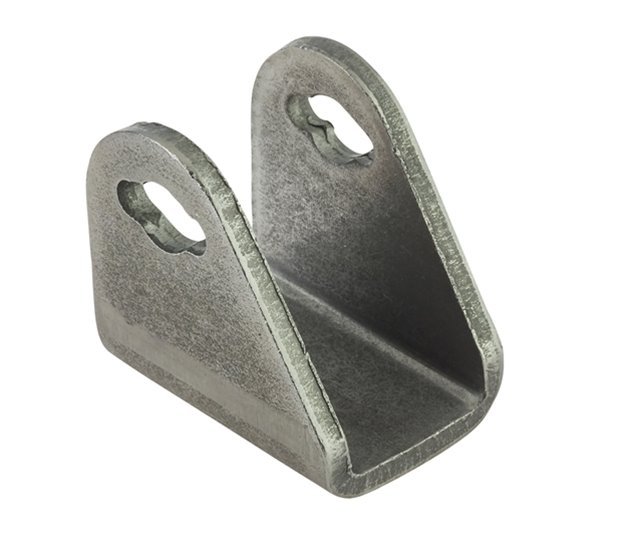

The Tailboard Retaining Bracket (MPN 800 1231) is a compact pressed steel bracket designed to locate and retain a tailboard bar on commercial bodies and trailers. It suits a 25 mm (1 in) diameter bar and is supplied in a self colour finish ready for preparation to your paint or protection system. The bracket provides a positive seating point for a tailboard retaining bar, helping to keep the board secure in transit on tippers, trucks, trailers and similar equipment. Overall size is approximately 49.5 mm (1.95 in) long, 38 mm (1.50 in) wide and 50 mm (1.97 in) high, allowing neat installation on body sides or frames. Intended for use with part 3987/002 within a matched tailboard latch arrangement, it is a straightforward, durable hardware component for bodybuilders, repairers and fleet maintenance teams.
Key Features:
- Pressed steel construction for robust service on commercial bodies
- Self colour finish for priming or coating to suit the build specification
- Suits 25 mm (1 in) tailboard retaining bar
- Approximate dimensions: Length 49.5 mm (1.95 in), Width 38 mm (1.50 in), Height 50 mm (1.97 in)
- Compatible for use with 3987/002 within a tailboard retaining setup
- Compact profile for easy placement on side raves, posts or frames
- Suitable for new build or repair and refurbishment work
- General hardware for tailboard fittings on heavy-duty applications
Typical Applications:
Used as the seating/retaining bracket for a tailboard bar on tippers, rigid trucks, plant and general trailers. Also found on skips and agricultural balers where a tailboard or rear door requires a simple mechanical retaining point during transport and site operations.
Also known as:
Tailboard catch bracket, Tailgate retaining bracket, Drop-side retaining bracket, Tailboard latch bracket
Product Specifications
| L&S Part No. | 800 1231 |
|---|---|
| Unit of Sale | 1 |
