Description
Overview:

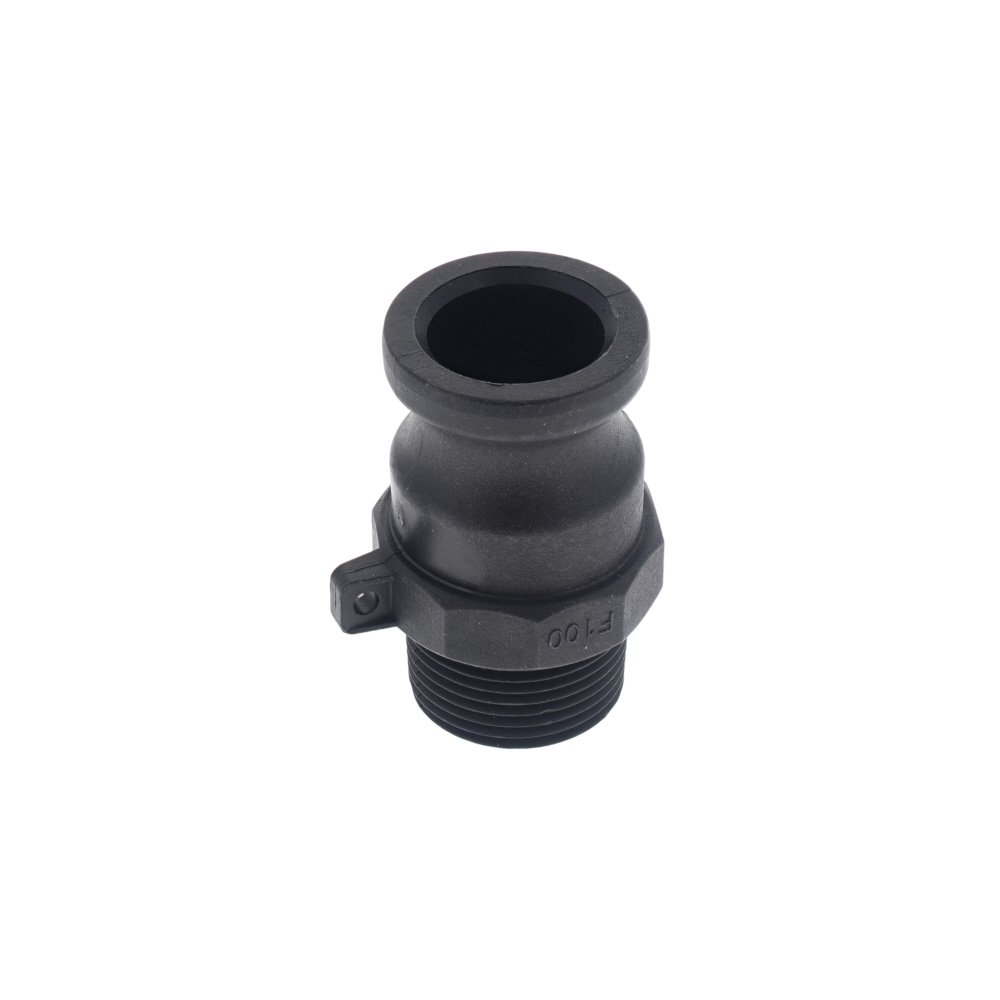

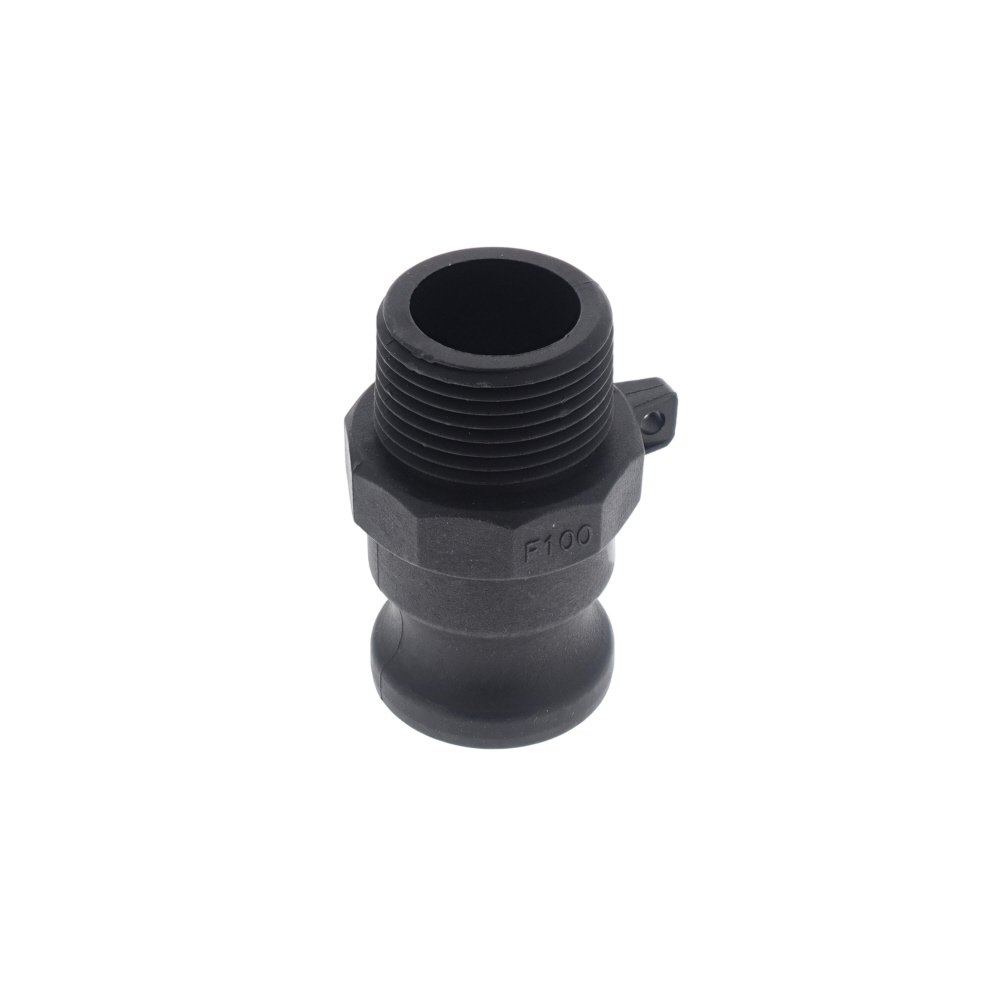

This 1" Type F Camlock x BSPT Male Polyprop is a cam-and-groove adapter for building quick-release hose and pipe connections. One end is a Type F camlock male adapter that mates with a 1" female camlock coupler; the other end is a 1" BSPT male tapered thread for connection into compatible threaded ports, valves, or fittings. The body is moulded from polypropylene for a lightweight, non-metallic, and corrosion-resistant connection in water and many chemical handling tasks. Use it to bridge between hose assemblies using camlock couplers and rigid pipework with female BSP threads. The camlock side connects and disconnects without tools via the mating coupler’s cam arms, while the BSPT thread seals using suitable PTFE tape or thread sealant. Not suitable for compressed air, steam, or gas service.
Key Features:
- Type F camlock male adapter to male BSPT tapered thread connection.
- Size: 1" camlock x 1" BSPT male, nominal.
- Polypropylene body resists corrosion and many chemicals.
- Lightweight construction for hoses, pumps, and portable equipment.
- Interchanges with 1" Type B, C, and D female couplers.
- Tool-free connection; locking via the mating coupler’s cam arms.
- BSPT thread seals using PTFE tape or compatible sealant.
- Not for compressed air, steam, LPG, or high-hazard gases.
- Suitable for water, fertilisers, and many mild chemical solutions.
- Smooth-bore adapter helps maintain flow through the joint.
Typical Applications:
Used on irrigation and spraying systems, transfer pumps, washdown lines, tank and IBC outlets with female BSP connections, and general liquid handling in agriculture, landscaping, construction, and light industrial maintenance. Ideal where hoses need fast changeover via camlock couplers while retaining a threaded connection into pipework or equipment. Always check chemical compatibility and system temperature/pressure limits before use.
Also known as:
Cam and groove fitting, Type F camlock adapter, polypropylene camlock, 1" camlock male, 1" BSPT male adapter, camlock x BSPT male, quick connect hose coupling, polyprop cam-and-groove Type F, 1 inch camlock to BSPT.
Product Specifications
| L&S Part No. | 063 114 |
|---|---|
| Unit of Sale | 1 |
