Description
Overview:

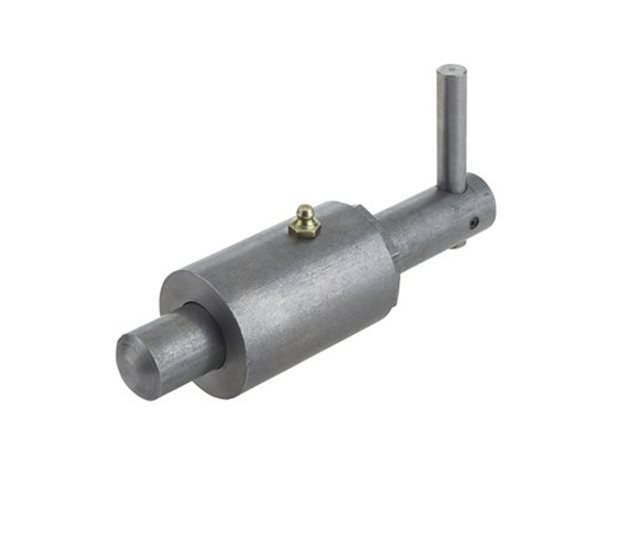

Weld-On Heavy Duty Shoot Bolt (MPN 800 1085) in mild steel for fabricating secure latching points on vehicle bodies, plant and machinery. The unit is supplied in self colour for welding, with a grease nipple fitted to allow periodic lubrication in service. It uses a 25.5 mm pin (approx 1.00 in) with a 30 mm stroke (approx 1.18 in) to provide a positive mechanical lock. The barrel is Ø50 mm (approx 1.97 in) and the body length is 80 mm (approx 3.15 in), giving a compact but robust assembly for doors, hatches and access panels. Typical uses include commercial vehicle and trailer doors, tailgates and dropsides, as well as skips, balers, agricultural equipment and general site gates. Designed for welding to suitable brackets or frames as part of a custom latch arrangement, ready for priming and painting after fabrication.
Key Features:
- Material: mild steel for fabrication and durability
- Finish: self colour, suitable for priming/painting after welding
- Type: weld-on shoot bolt for custom latch installations
- Grease nipple fitted for ongoing lubrication and service life
- Pin diameter: 25.5 mm (approx 1.00 in)
- Stroke/travel: 30 mm (approx 1.18 in)
- Barrel outside diameter: Ø50 mm (approx 1.97 in)
- Body length: 80 mm (approx 3.15 in)
- Heavy duty pattern for vehicle, plant and industrial use
- Brand: Albert Jagger
Typical Applications:
Used to secure doors, tailgates and dropsides on commercial vehicles and trailers, and for locking panels or lids on skips, balers and agricultural machinery. Also suitable for plant transport bodies, site gates and van rear doors where a robust, weld-on mechanical bolt is required.
Also known as:
Weld-on door bolt, Gate shoot, Locking bolt, Pin bolt, Latch pin, Barrel bolt (weld-on)
Product Specifications
| L&S Part No. | 800 1085 |
|---|---|
| Unit of Sale | 1 |
