Description
Overview:

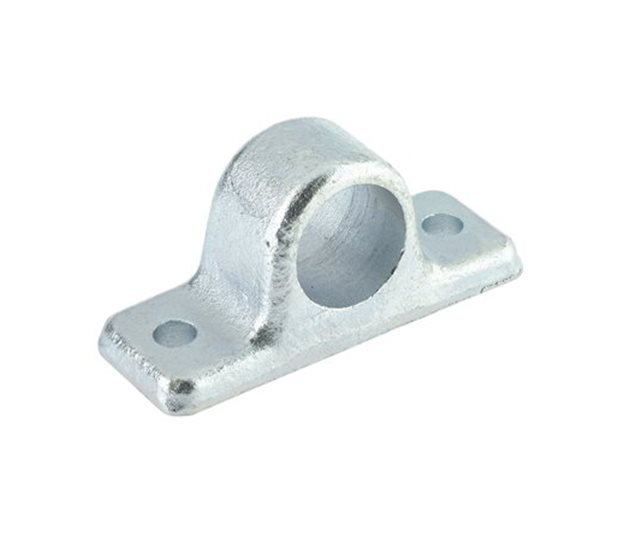

This bolt-on tailboard locking bar bracket (MPN 800 1239) is a robust keeper for securing a tipper or truck tailboard bar. Manufactured from mild steel and zinc plated for corrosion resistance, it provides a hard‐wearing locating point for a 25 mm (1 in) locking bar on tailgates and similar closures. The bracket features two through-holes for simple bolt-on installation to the body or tailboard structure. A 26 mm (1.02 in) bore gives working clearance around a 25 mm (1 in) bar, helping the bar locate smoothly while minimising rattle. Sized for common commercial vehicle and plant bodywork, typical overall dimensions are 90 mm (3-9/16 in) long, 32 mm (1-1/4 in) wide and 39.5 mm (1-9/16 in) high. Suited to tipper bodies, rigid trucks, plant and agricultural trailers, skips and balers where a dependable tailboard bar keeper is required.
Key Features:
- Mild steel construction for strength and durability
- Zinc plated finish for corrosion protection in service
- Bolt-on design with 2 x Ø8.5 mm (11/32 in) fixing holes
- Suits Ø25 mm (1 in) locking bar for tailboards and tailgates
- Keeper/bore diameter Ø26 mm (1.02 in) for bar clearance
- Overall length: 90 mm (3-9/16 in)
- Overall width: 32 mm (1-1/4 in)
- Overall height: 39.5 mm (1-9/16 in)
- Suitable for use on tippers, trucks, trailers, balers and skips
- General hardware tailboard fitting for commercial vehicle bodywork
Typical Applications:
Used as the fixed keeper bracket for a tailboard locking bar on tipper bodies and general haulage truck bodies. Common on plant and equipment trailers, agricultural trailers, skips and balers where a 25 mm (1 in) bar is used to latch or secure the tailgate or rear door.
Also known as:
Tailgate Bar Bracket; Locking Bar Keeper; Tailboard Catch Bracket; Bar Saddle; Plumber Block
Product Specifications
| L&S Part No. | 800 1239 |
|---|---|
| Unit of Sale | 1 |
