Description
Overview:

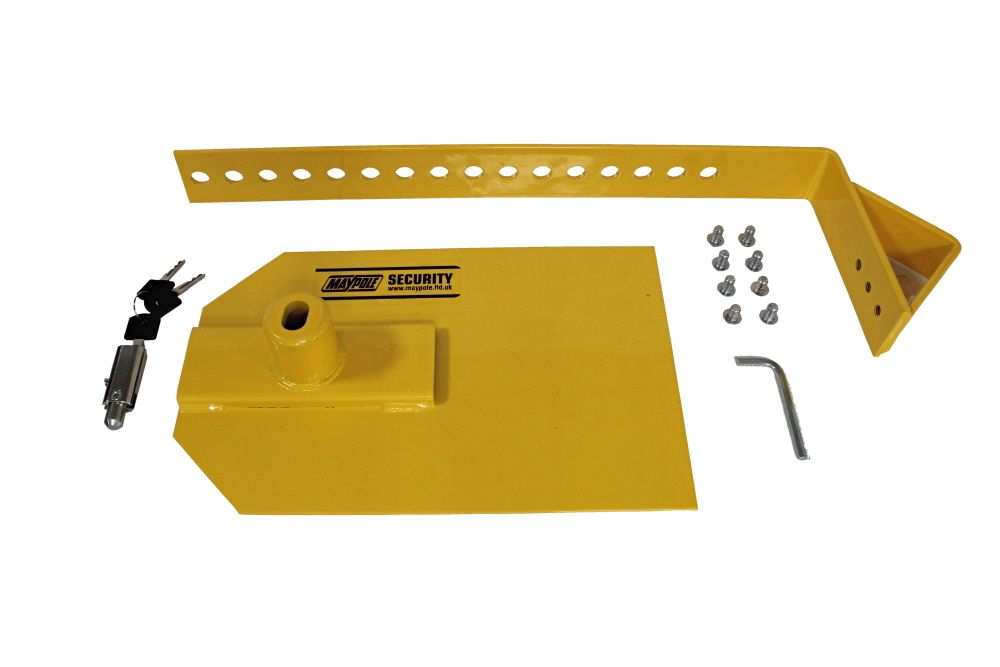

Heavy Duty Wheel Clamp for 10-16 Inch Wheels (MPN MP909) designed as a highly visible physical deterrent for parked trailers, caravans, vans and light commercial vehicles. The clamp adjusts to suit wheel diameters from 10-16 inches (254-406 mm) and tyre widths from 135-215 mm (approx. 5.3-8.5 inches). Overall wheel diameter capacity is 450-700 mm (about 17.7-27.6 inches). Once the clamp is initially sized to your wheel, it can be fitted and removed in seconds. It can be installed without taking off the wheel trim and uses a security plate to shield the wheel nuts from access. A rubber pad is fitted to help protect the wheel surface during clamping. The lock is pick-resistant and corrosion-proof, and the unit is supplied with three keys. Note: maximum width allowance includes protruding hubs and trims. Ensure at least 50 mm (about 2 inches) clearance between the tyre and the vehicle bodywork before use.
Key Features:
- Fits 10-16 inch wheels (254-406 mm)
- Suits tyre widths 135-215 mm (approx. 5.3-8.5 inches)
- Diameter capacity 450-700 mm (about 17.7-27.6 inches)
- Quick to fit after initial size adjustment
- Can be used without removing wheel trims
- Rubber pad helps prevent damage to the wheel face
- Security plate limits access to wheel nuts
- High-security pick-resistant lock with corrosion protection
- Supplied with 3 keys
- Allow at least 50 mm (about 2 inches) clearance to bodywork; maximum width includes protruding hubs and trims
- Spares kit available: screws and ball bearings, ref MP909-01
Typical Applications:
Used to immobilise and secure parked trailers, caravans, horseboxes, car transporters, plant and equipment trailers, and light commercial vehicles on sites, depots and driveways. Suitable for fleets and hire operations requiring a visible deterrent across common wheel sizes from 10 to 16 inches (254-406 mm).
Also known as:
Wheel immobiliser, Wheel lock, Trailer wheel clamp, Caravan wheel clamp, Wheel clamp 10-16 inch, Maypole part number MP909
Product Specifications
| L&S Part No. | MP909 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | MP909 |
| Unit of Sale | 1 |
| Fits Brands | Maypole |
