Description
Overview:

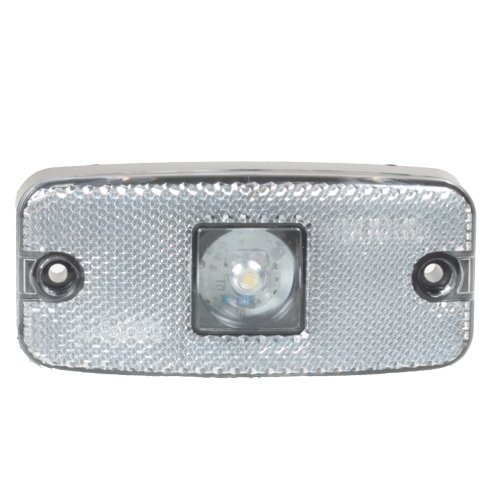

Clear-lens LED front marker lamp for 10-30V vehicle electrical systems. Compact, sealed unit with an integral reflector for front position marking, designed for horizontal mounting. The housing is rated to IP66 for dust and water protection, and the unit carries E-mark and EMC approvals. Fitted with a moulded SuperSeal male plug for a secure, time-saving connection on trailers and fleet equipment.
Specification:
- Operating voltage: 10-30V DC
- LED front marker with clear lens
- Integral reflector
- Mounting: horizontal orientation
- Ingress protection: IP66
- Approvals: E-mark and EMC compliant
- Connector: SuperSeal male plug
- Housing: compact design
- Supply: bulk (no retail packaging)
Typical Applications:
Front position marker on trailers, plant and machinery transporters, recovery bodies and light commercial vehicle bodies. Suitable for new builds or replacements where a compact, approved 10-30V front marker with SuperSeal connection is required.
Product Specifications
| L&S Part No. | 763 571 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Operates on 10-30V DC systems - Clear lens with integral reflector - IP66 rating for dust and water protection - E-mark and EMC compliant - Features SuperSeal male plug connection |
