Description
Overview:

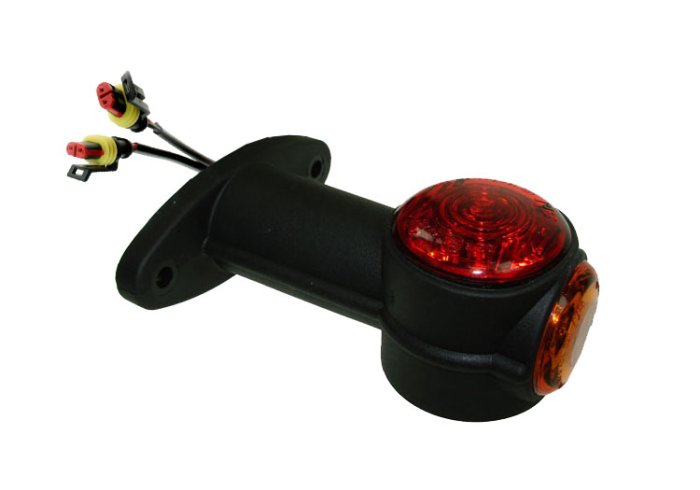

This LED outline marker lamp, right hand 90°, red/white/amber (MPN 763 734), is a tri-colour position light for defining the extremities of trailers and commercial vehicles. It operates from 10-30V DC to suit both 12V and 24V systems and uses efficient LEDs for clear visibility with low current draw. The unit presents white to the front, amber to the side and red to the rear, helping indicate vehicle width and length. A rubber mounting base provides a stable, vibration-damping platform, and the lamp is fitted with a SuperSeal 1×2-way (2‐pin) plug for quick, reliable connection to compatible looms. It is E approved and EMC compliant for road use. Designed as a right-hand (offside) marker with a 90° body orientation, it is suitable for trailers, plant and agricultural equipment, light commercials, vans and HGVs where a robust, long-life outline marker is required.
Key Features:
- 10-30V DC operating range for 12V and 24V electrical systems
- Right-hand orientation with 90° body for offside mounting
- Tri-colour LEDs: white (front), amber (side), red (rear)
- Fitted with SuperSeal 1×2-way (2‐pin) plug for quick connection
- Rubber mounting base with fixing holes for secure installation
- LED light source for low power consumption and long service life
- EMC compliant and E approved for road use in the UK/EU
- Compact, durable construction suitable for exterior mounting
- Compatible with looms using 2‐pin SuperSeal connectors
- Low maintenance, no bulb replacements required
Typical Applications:
Used as a right-hand (offside) outline/position marker on trailers, plant trailers, low loaders, recovery bodies, horseboxes, agricultural trailers, light commercials and HGVs. Commonly installed at the vehicle's right-front/right-rear extremities to show width and length, pairing with a matching left-hand unit on the nearside. The integrated 2‐pin SuperSeal plug mates with compatible trailer lighting harnesses for straightforward installation.
Also known as:
Position lamp, marker light, tri‐colour marker, right‐hand perimeter marker, 2‐pin SuperSeal LED marker, Maypole part number MP7726BS
Product Specifications
| L&S Part No. | 763 734 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
