Description
Overview:

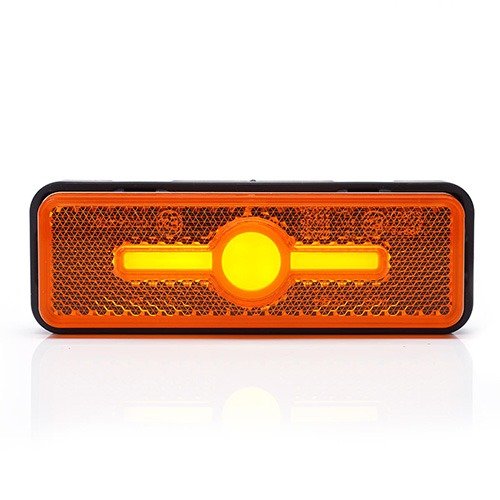

LED amber side marker lamp for 10-30V systems, providing a GLO diffused outline light with an integrated reflector. Designed for horizontal or vertical mounting to suit vehicle layout. E-approved and sealed to IP6K9K for durability and resistance to high-pressure washdown. Supplied with a mounting bracket and pre-wired lead for straightforward installation on trailers and commercial vehicles.
Specification:
- Voltage: 10-30V DC
- Light Colour: Amber
- Lighting Effect: GLO diffused marker
- Orientation: Horizontal or vertical
- Cable: 240 mm (9.4 in) pre-wired lead
- IP Rating: IP6K9K
- Approval: E-approved

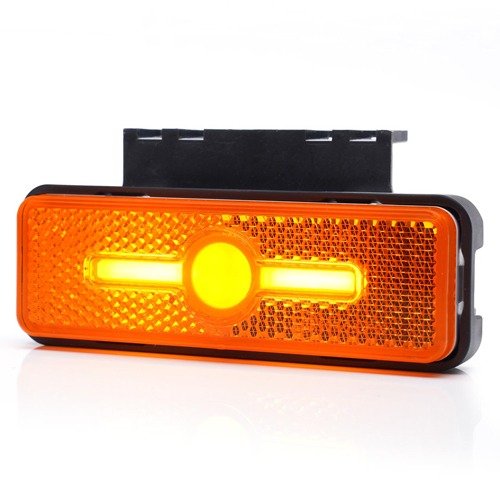

- Mounting: Supplied bracket with mounting holes
- Reflector: Integrated
Typical Applications:
Side marker lighting on plant and equipment trailers, recovery and beavertail bodies, box vans and general haulage trailers where an amber outline light and reflector are required. Suitable for both 12V and 24V fleets.
Product Specifications
| L&S Part No. | 763 390 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Suits 10-30V DC systems - GLO diffused amber light - Horizontal or vertical mounting - IP6K9K high-pressure wash resistant - Includes bracket and 240 mm lead |
