Description
Overview:

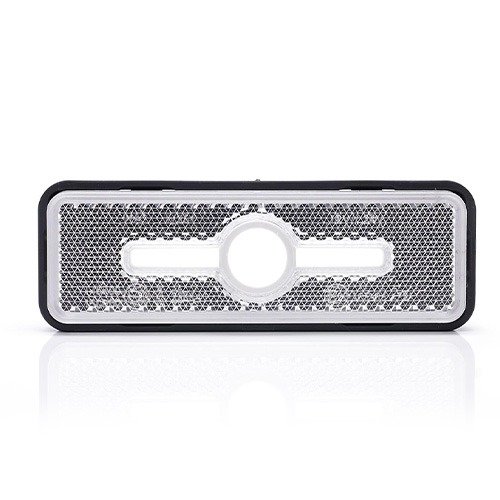

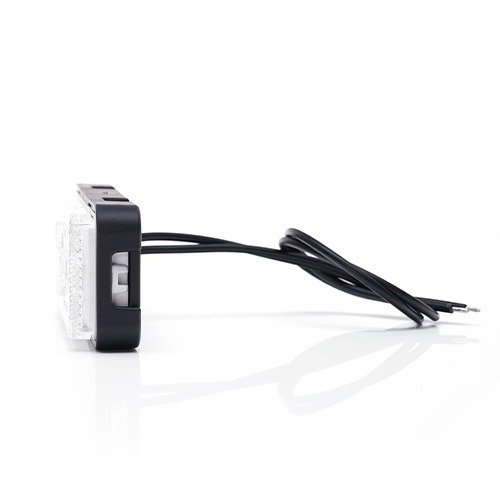

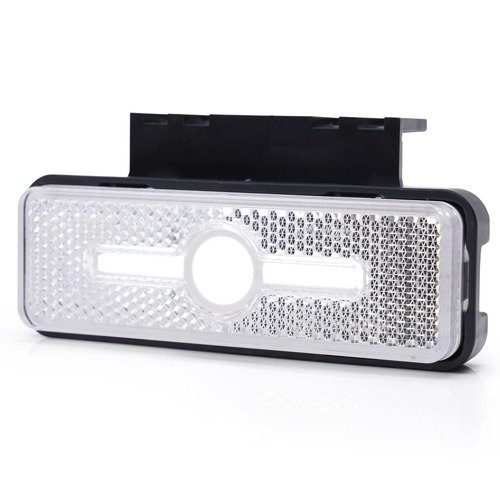

LED marker lamp with a clear lens for use as a compact position light on trailers and commercial vehicles. Operates from 10-30V DC to suit both 12V and 24V systems. The lamp features a GLO effect for even light output and is supplied with a mounting bracket. A 24 cm flying lead provides the electrical connection. Rated to IP6K9K and E approved. Can be installed in either horizontal or vertical orientation.
Specification:
- Voltage: 10-30V DC
- Connection: 24 cm cable
- IP rating: IP6K9K
- Approval: E approved
- Supplied with mounting bracket
- GLO effect illumination
- Horizontal or vertical mounting
- Integral reflector: Yes
- Pack format: Display packed
Typical Applications:
Position/marker lighting on trailers, plant transporters, recovery bodies, caravans and vans. Fit at the vehicle or trailer perimeter where a clear, low-profile LED marker is required.
Product Specifications
| L&S Part No. | 763 376 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Voltage operation: 10-30V DC - IP rating: IP6K9K - Includes mounting bracket - Electrical connection via 24 cm cable - Suitable for vertical or horizontal mounting |
