Description
Overview:

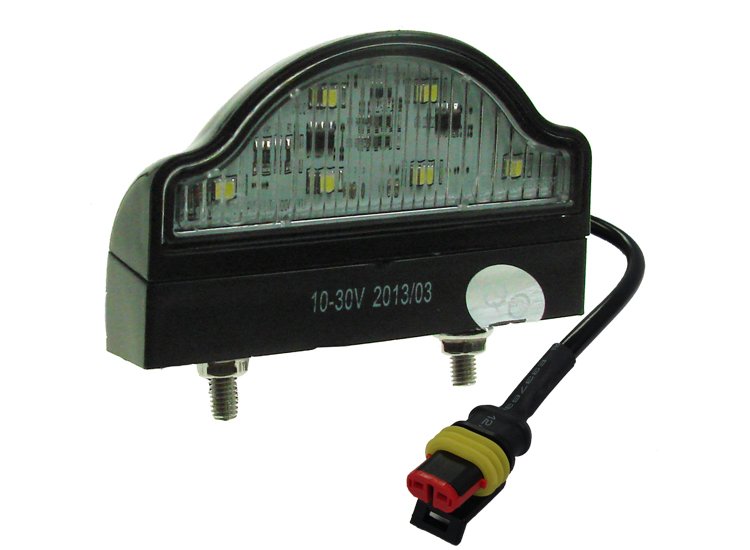

This LED number plate lamp (MPN 763 439) is a compact, multi‐voltage light designed for trailers, plant and agricultural equipment, recovery bodies and light commercial vehicles. It operates on 10-30V DC, making it suitable for both 12V and 24V systems. The unit is supplied ready to fit, with mounting hardware included for a secure bolt‐on installation. A factory‐fitted 2‐pin SuperSeal male connector on a 300 mm (11.8 in) flylead provides a quick, reliable and weather‐resistant electrical connection to existing SuperSeal looms. The sealed construction is rated to IP67 for dust‐tight performance and protection against temporary immersion. LED technology provides bright, even illumination of the registration plate with low current draw and long service life. The lamp is E‐approved and EMC compliant for on‐road use.
Key Features:
- 10-30V DC input for 12V and 24V electrical systems
- LED light source for low power consumption and long life
- Pre‐wired 2‐pin SuperSeal male plug on 300 mm (11.8 in) cable
- IP67 ingress protection (dust‐tight and water resistant)
- E‐approved and EMC compliant for road use
- Compact body for easy positioning above or beside the plate
- Supplied with mounting bolts/studs for straightforward installation
Typical Applications:
Used to illuminate the rear number plate on braked and unbraked trailers, plant and machinery trailers, car transporters, tippers, agricultural trailers, caravans and light commercial vehicles. The 10-30V rating suits mixed fleets running 12V or 24V systems, and the 2‐pin SuperSeal connection integrates with common trailer wiring looms for quick replacement or new builds.
Also known as:
LED registration plate lamp
Trailer number plate light 12/24V
E‐marked LED plate light
SuperSeal 2‐way number plate lamp
Maypole part number MP8227BSP
Product Specifications
| L&S Part No. | 763 439 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Operates on 10-30V for 12V/24V systems - LED technology ensures low power and longevity - Pre-wired 2-pin SuperSeal on 300 mm cable - IP67 rated for dust and water resistance - E-approved and EMC compliant for road use |
