Description
Overview:

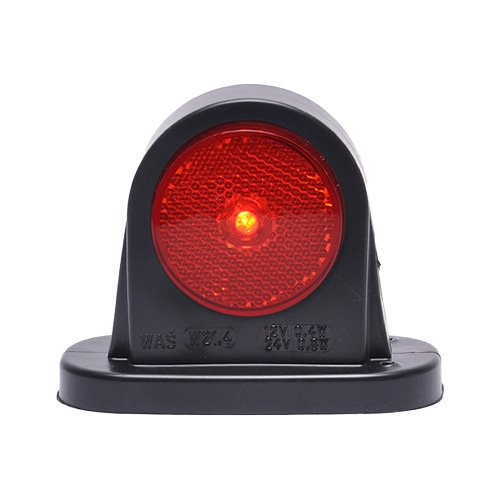

LED red/white outline marker lamp with integrated reflex reflector in a durable rubber housing. Multivoltage 10-30V for 12V and 24V systems, pre-wired with a flying lead for straightforward installation. Sealed to IP66 for dust-tight and high-pressure water resistance, and approved to E-mark and EMC standards for road use. Suits surface mounting on 85 mm centres and provides red/white position marking for trailers and transport bodies.
Specification:
- Voltage: 10-30V DC
- Light/Reflector: Red/white outline marker with integrated reflex reflector
- Housing: Rubber
- Mounting centres: 85 mm (3.35 in)
- Connection: 330 mm (13.0 in) flying lead
- IP rating: IP66
- Approvals: E-marked and EMC compliant
- Fixing: Surface mount, 85 mm centres
Typical Applications:
Side outline/position marking on general-purpose trailers, plant transporters, recovery bodies, and commercial vehicle bodies where a red/white marker with reflex function is required.
Product Specifications
| L&S Part No. | 763 603 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
