Description
Overview:

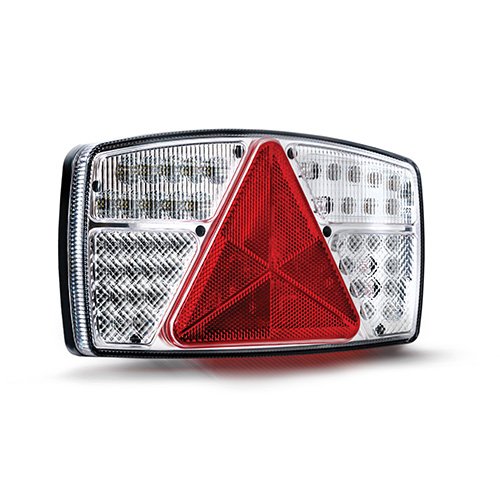

Right-hand LED rear combination lamp for trailers and plant transport, suitable for 12V and 24V electrical systems (10-30V). Provides stop, tail, indicator, fog, reverse and reflector functions in a single unit. Chrome-effect finish with stud mounting and SuperSeal connectors for a secure, weatherproof installation. E-marked and EMC compliant, IP67 rated for dust and water ingress protection.
Specification:
- Voltage: 10-30V DC (for 12V/24V systems)
- Side: Right-hand
- Functions: Stop, tail, indicator, fog, reverse, integrated reflector
- Connection: SuperSeal 1×2-way male plug and 1×4-way female socket (included)
- Ingress Protection: IP67
- Approvals: E approved, EMC compliant
- Mounting: Studs
- Finish: Chrome-effect design
- Part Number: MP8603BRS
Typical Applications:
Rear right lamp on general-duty trailers, plant and machinery transporters, light commercial bodies and trailer boards where a compact, multi-function LED unit with sealed connectors is required.
Product Specifications
| L&S Part No. | 763 965 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Suitable for 12V and 24V systems (10-30V DC) - Provides stop, tail, indicator, fog, reverse functions - SuperSeal connectors ensure secure, weatherproof installation - IP67 rated for dust and water ingress protection - E-marked and EMC compliant for safety standards |
