Description
Overview:

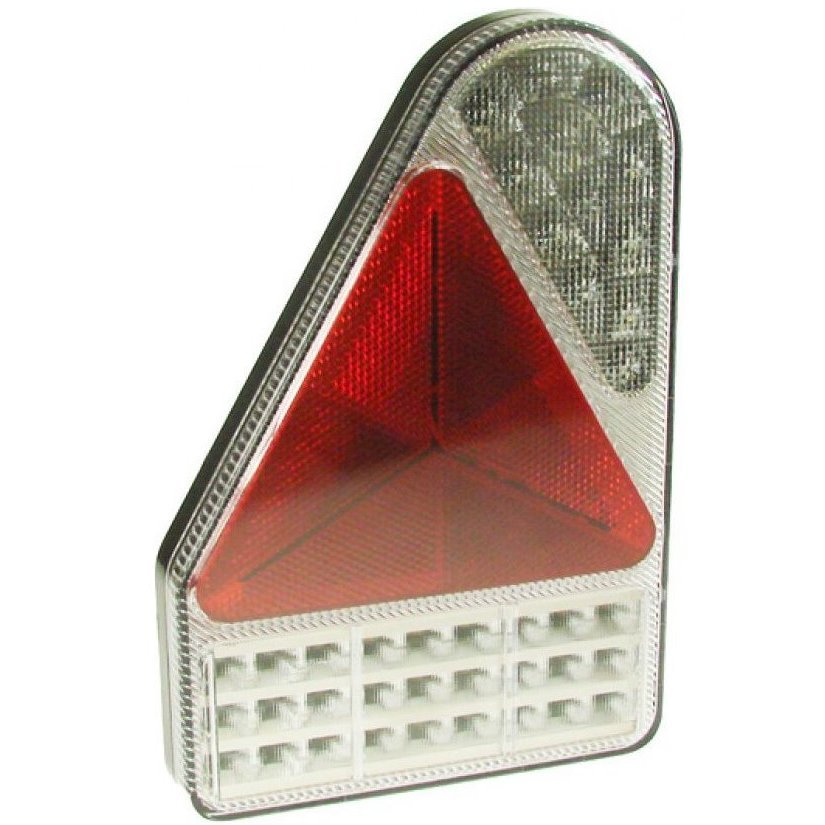

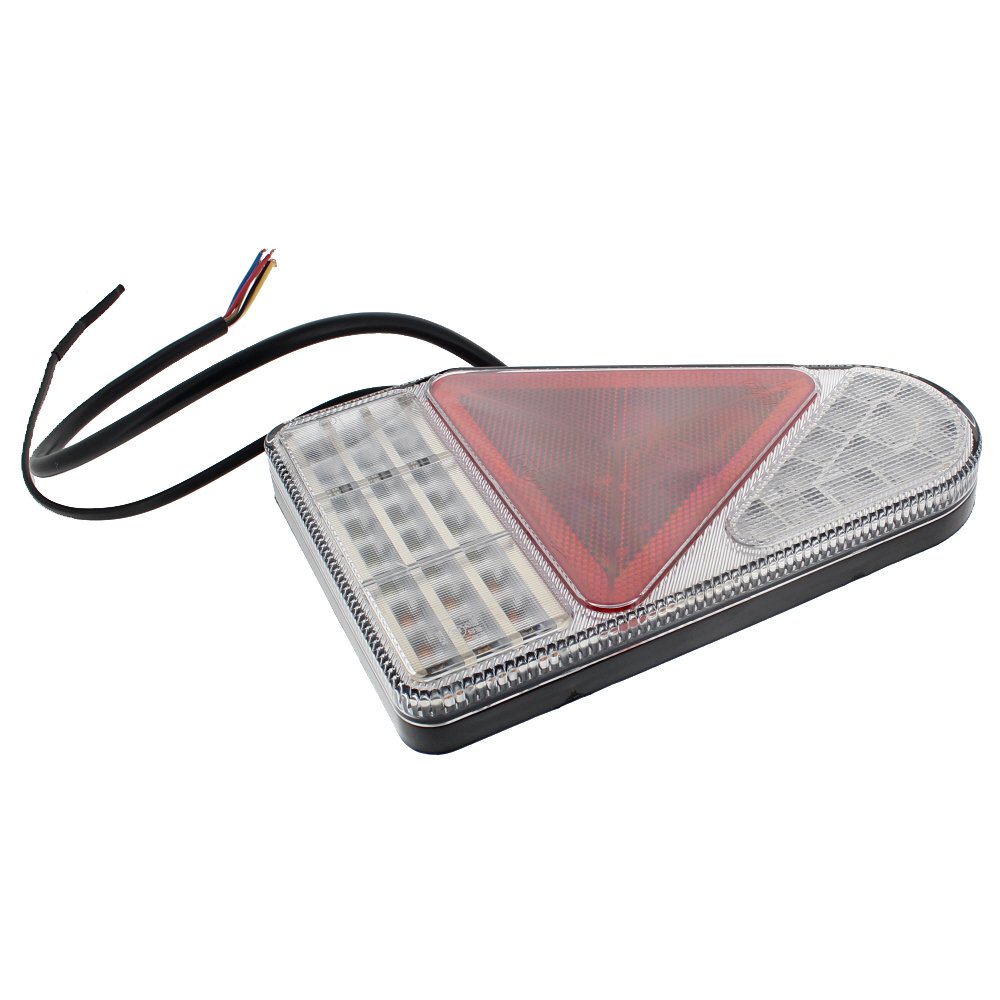

The Maypole 10-30v LED Slimline Rear Combi Lamp (Vertical, Left Hand) is a compact triangular rear light unit for construction and garden machinery, plant trailers, and other road-towed equipment. It provides all key rear lighting functions in one lamp: stop, tail, indicator, reverse, fog, and a built-in reflector. The slim chrome-finish design helps it fit neatly where space is tight, while solid-state LEDs give consistent light output with low power draw on both 12v and 24v systems. Stud mounting with a 45 cm cable makes installation straightforward on new builds or as an upgrade from bulb units. It is E and EMC approved and is a suitable LED replacement for Aspock Earpoint 3 bulb lamps.
Key Features:
- 10-30v operating range for 12v and 24v vehicles and machinery
- Six-function cluster: stop, tail, indicator, reverse, fog, plus integrated reflector
- Vertical, left-hand, triangular layout for correct road positioning
- Slimline body with chrome finish for a tidy, modern appearance
- Robust construction designed for site, agricultural, and utility use
- E and EMC approved for road compliance
- Stud-mounted fixing with a 45 cm cable for quick, secure fitment
- Wings-in or wings-out configuration to suit different mounting plates
- Power take-off cable provided for marker and number plate lamps
- LED technology for long service life and reduced maintenance
- Ideal LED replacement for Aspock Earpoint 3 bulb lamps
Typical Applications:
Rear lighting on plant and equipment trailers, site support vehicles, road-tow compressors, generators, chippers, and other construction or grounds-care machinery. Suited to operators needing a reliable, low-maintenance rear lamp cluster that meets road visibility and safety requirements on mixed 12v/24v fleets.
Also known as:
Rear combination lamp, LED rear cluster, triangular tail light, LH vertical tail lamp, 6-function rear lamp, left-hand rear LED, trailer rear light, triangular rear unit, LED tail/stop/indicator/reverse/fog lamp.
Product Specifications
| L&S Part No. | 802 180 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | 8605BL |
| Unit of Sale | 1 |
| Size | 215mm x 145mm x 25mm |
