Description
Overview:

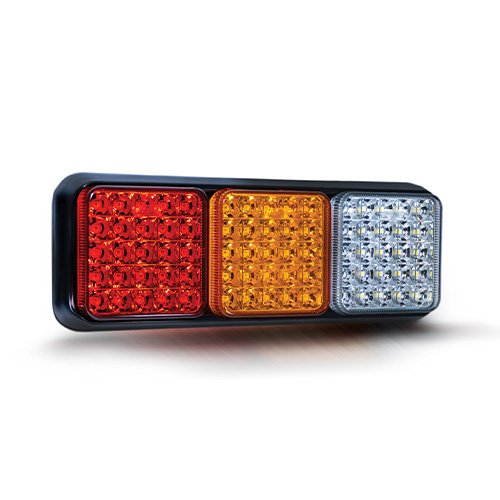

Triple modular LED rear lamp for trailers operating on 10-30 V DC. Provides stop, tail, indicator and reverse functions in a sealed IP67 assembly. Each module measures 80 x 80 mm and can be mounted horizontally or vertically using stud fixings with an anti-vibration foam pad. Supplied with a 40 cm flying lead for straightforward connection. Suitable as a replacement on many Ifor Williams trailers and other trailers using 80 x 80 mm modular lamps.
Specification:
- Voltage: 10-30 V DC
- Functions: Stop, tail, indicator, reverse
- Module size: 80 x 80 mm
- Mounting: Horizontal or vertical
- Fixing: Stud mount with anti-vibration foam pad
- Connection: 40 cm cable lead
- IP rating: IP67
- Approvals: E approved and EMC compliant
- Supply: Bulk, no retail packaging
- Suitable replacement for Ifor Williams trailers
Typical Applications:
Rear combination lighting on general-purpose trailers, plant transporters and builders' trailers requiring an 80 x 80 mm modular lamp set with reverse function.
Product Specifications
| L&S Part No. | 763 917 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
