Description
Overview:

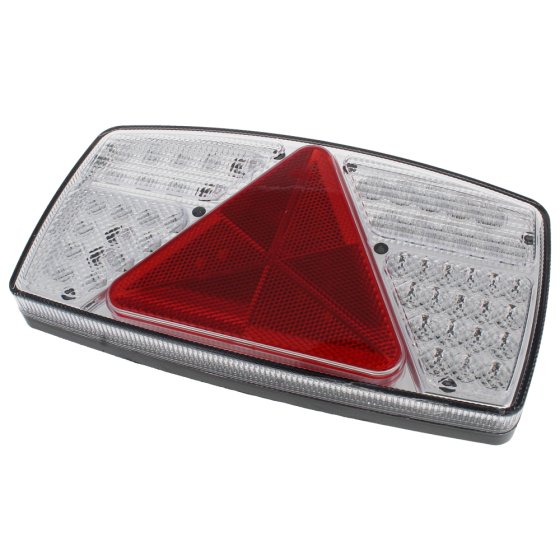

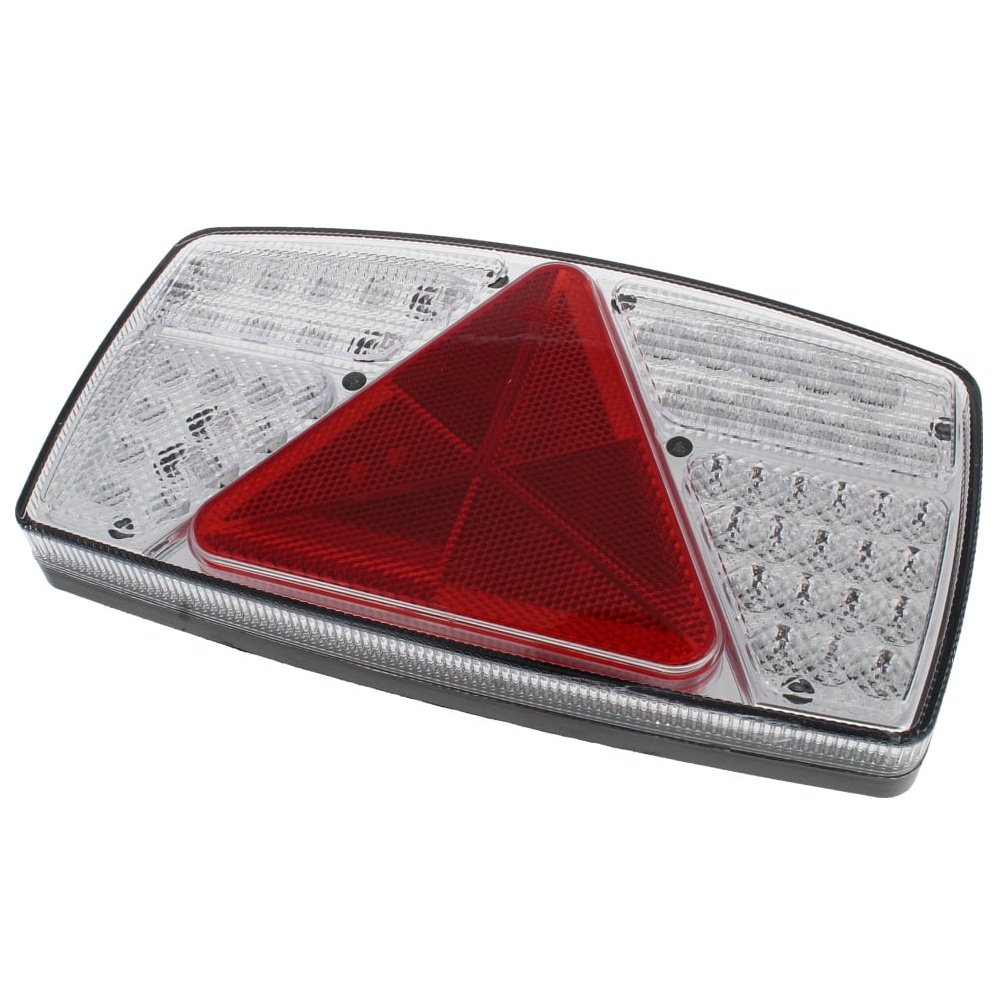

The 10-30V Maypole Rear LED Combi Lamp Left Hand (OEM No. MP8603BL) is a multi-function rear light for road-going trailers, plant trailers, agricultural equipment, recovery trucks and other larger vehicles. It combines stop, tail, indicator, fog and reverse functions with an integrated reflex triangle for added visibility. Built with a sealed, robust construction and efficient LEDs, it delivers bright, even light output with low current draw. Supplied with a 6-core cable and designed for two-stud mounting, it is straightforward to fit and wire on the left-hand rear of the vehicle. Fully E-approved with R10 (EMC) compliance and an IP67 rating, this Maypole unit is engineered for reliable performance in wet, dirty and low-light conditions. Also known as MP8603BL within the Maypole range.
Key Features:
- Wide input range: 10-30V DC covers 12V and 24V systems
- Left-hand rear combination lamp: stop, tail, indicator, fog and reverse in one unit
- Integrated reflex triangle for passive visibility when unlit
- IP67 sealing protects against dust and water ingress
- Fully E-approved, including R10 (EMC) for electrical compatibility
- Durable 6-core cable, 500 mm (19.7 inches), simplifies wiring
- Easy mounting with 2 x M6 studs for a secure fit
- Bright, low-power LED technology for long service life
- Compact, durable housing suited to tough on-site use
- Clear function segmentation for quick visual checks
Typical Applications:
Ideal for trailers (plant, general-purpose and agricultural), horseboxes, box vans, tippers, recovery bodies, and service vehicles that require a dependable left-hand rear light cluster. Useful where high visibility and reliability are essential, including road use, yard manoeuvring, and low-visibility conditions such as fog, rain, or dusty sites.
Also known as:
Left-hand rear cluster light, LED rear combination cluster LH, 5-function tail cluster, rear combo lamp LH, multi-function rear unit, rear light assembly with triangle reflector, left rear lamp cluster, trailer rear cluster LH, LED tail/stop/turn/fog/reverse unit.
Alternate Part Numbers:
761 463, 761463
Product Specifications
| L&S Part No. | 007 602 |
|---|---|
| Manufacturer | Maypole |
| Unit of Sale | 1 |
| Machine Type | Trailers |
| Key Features | - 10-30V DC input suits 12V and 24V systems - Left-hand rear lamp: stop, tail, indicator, fog, reverse - IP67 rated for dust and water protection - 6-core cable, 500 mm, simplifies wiring - E-approved with R10 (EMC) compliance for compatibility |
