Description
Overview:

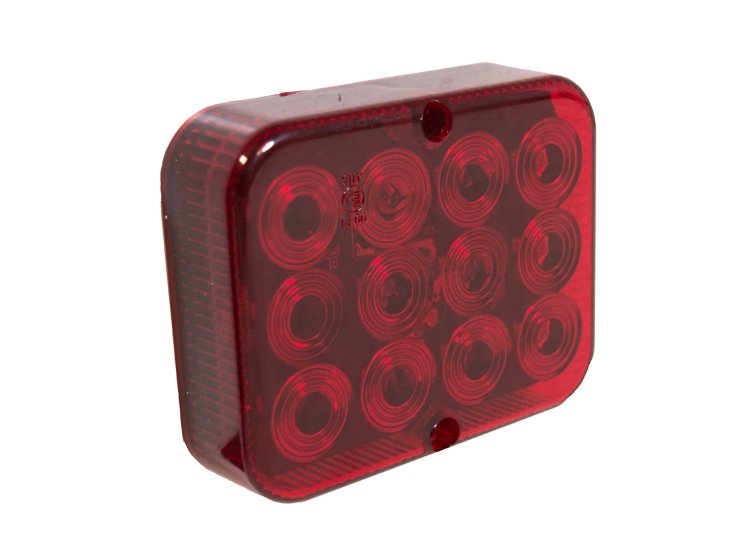

This slimline LED rear fog lamp (MPN 763 309) provides a bright, compliant rear fog function for trailers, lighting boards and towed equipment using either 12V or 24V systems. The wide 10-30V varivolt input covers mixed fleets and plant where both voltage standards are in use. A sealed housing to IP65 helps protect against dust and water ingress in everyday road and site conditions, while E approval confirms suitability for road use where a rear fog lamp is required. The unit is supplied with a 500mm cable tail (approx. 19.7 in) for straightforward hardwiring, and can be installed horizontally or vertically to suit the mounting space available. With 4.5mm (approx. 0.18 in) fixing holes for bolt-on mounting, it is well suited to general-purpose trailer fabrication, repairs and replacements, including use on Maypole LED trailer boards.
Key Features:
- 10-30V varivolt input for use on 12V and 24V systems
- Slimline LED rear fog lamp for compact installations
- IP65 ingress protection against dust and water jets
- E approved for road use where a rear fog lamp is required
- 500mm cable tail (approx. 19.7 in) for direct wiring
- Horizontal or vertical mounting orientation
- 4.5mm mounting holes (approx. 0.18 in) for bolt-on fitment
- LED technology for low power draw and long service life
- Suitable as a replacement on Maypole LED trailer boards
Typical Applications:
Rear fog function on trailers, trailer light boards, plant and equipment transporters, and commercial towing setups operating at 12V or 24V. Commonly used as a direct replacement lamp on Maypole LED trailer boards, and for general trailer builds or refurbishments where a compact, E-marked rear fog lamp is required.
Also known as:
Varivolt LED Rear Fog Lamp
LED Fog Light 10-30V
Slimline Rear Fog Lamp, IP65
E‐Marked LED Fog Lamp
Maypole part number MP8631B
Maypole MP8631 (display pack)
Product Specifications
| L&S Part No. | 763 309 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
