Description
Overview:

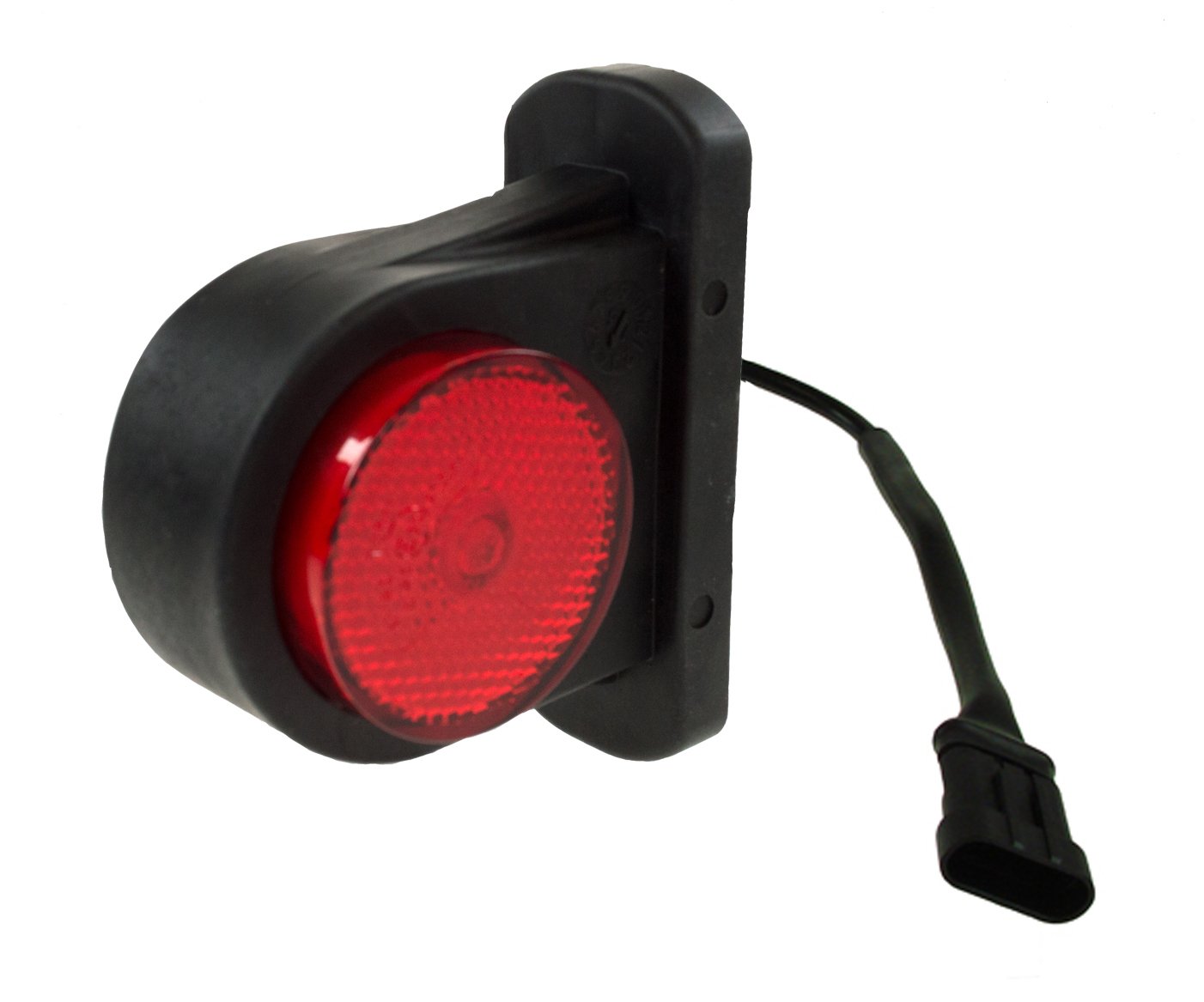

This LED outline marker lamp, red/white, 10-30V, SuperSeal, 85mm centres (MPN 763 705) is a compact marker designed to indicate the outer edges of trailers and commercial vehicles. It operates across 10-30V DC to cover both 12V and 24V systems used in towing and transport fleets. The unit is built around a rubber housing that helps protect the lamp body from knocks and road spray. It is supplied with a 2‐pin SuperSeal socket connector for a secure, weather-resistant plug-in electrical connection. The lamp provides a white signal toward the front and red toward the rear when correctly oriented, helping with vehicle visibility and compliance. With IP66 ingress protection and EMC/E approvals, it is suitable for demanding on-road use. Standard 85 mm (approx. 3.35 in) mounting centres make installation straightforward on common brackets and vehicle body fixings. An integrated reflector adds passive visibility when unlit.
Key Features:
- Operating voltage range: 10-30 V DC (suits 12 V and 24 V systems)
- Red/white LED outline marker function for front/rear orientation
- Supplied with 2‐pin SuperSeal (1×2 way) socket connector
- Rubber housing for durable, protective mounting
- 85 mm mounting centres (approx. 3.35 in) for standard fixings
- IP66 ingress protection against dust and water jets
- EMC compliant and E‐approved for road use
- Integrated reflector for added passive conspicuity
Typical Applications:
Used on the sides and outer corners of trailers, caravans, vans, rigid bodies, car transporters and plant carriers to define vehicle extremities. Suitable for towing set‐ups and transport fleets where a compact, dual‐colour marker is required. The 10-30V rating covers mixed 12V/24V operations, and the SuperSeal connector allows quick, reliable connection to compatible vehicle or trailer looms.
Also known as:
Side Marker Light (Red/White)
Clearance/Position Marker Lamp
2‐Pin SuperSeal Marker Lamp
WAS Red/White Marker
Maypole part number MP8709BS
Product Specifications
| L&S Part No. | 763 705 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
