Description
Overview:

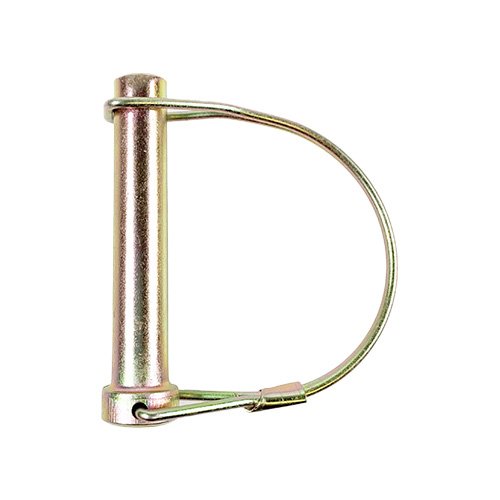

Shaft locking pipe retaining pin for securing moving or removable sections on trailers and transport bodies. Manufactured from zinc plated steel with gold passivation for corrosion resistance. The crimped spring retaining loop provides positive, quick-release retention once the pin is in place. Suits general trailer and body fitting applications where a 10.8mm diameter pin and 100mm overall pin length are required.
Specification:
- Pin diameter: 10.8 mm (0.425 in)
- Pin length: 100 mm (3.94 in)
- Usable length: 88 mm (3.46 in)
- Width: 53 mm (2.09 in)
- Crimped spring retaining loop
- Zinc plated steel with gold passivation
- Minimum order quantity: 25
- Maypole part number: MP42311B
Typical Applications:
Used on trailers and plant transport for latching and retaining tailboards, dropsides, ramps and similar body fittings where a secure, quickly removable pin is needed.
Product Specifications
| L&S Part No. | 763 166 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
